PTT cylinder
9-41

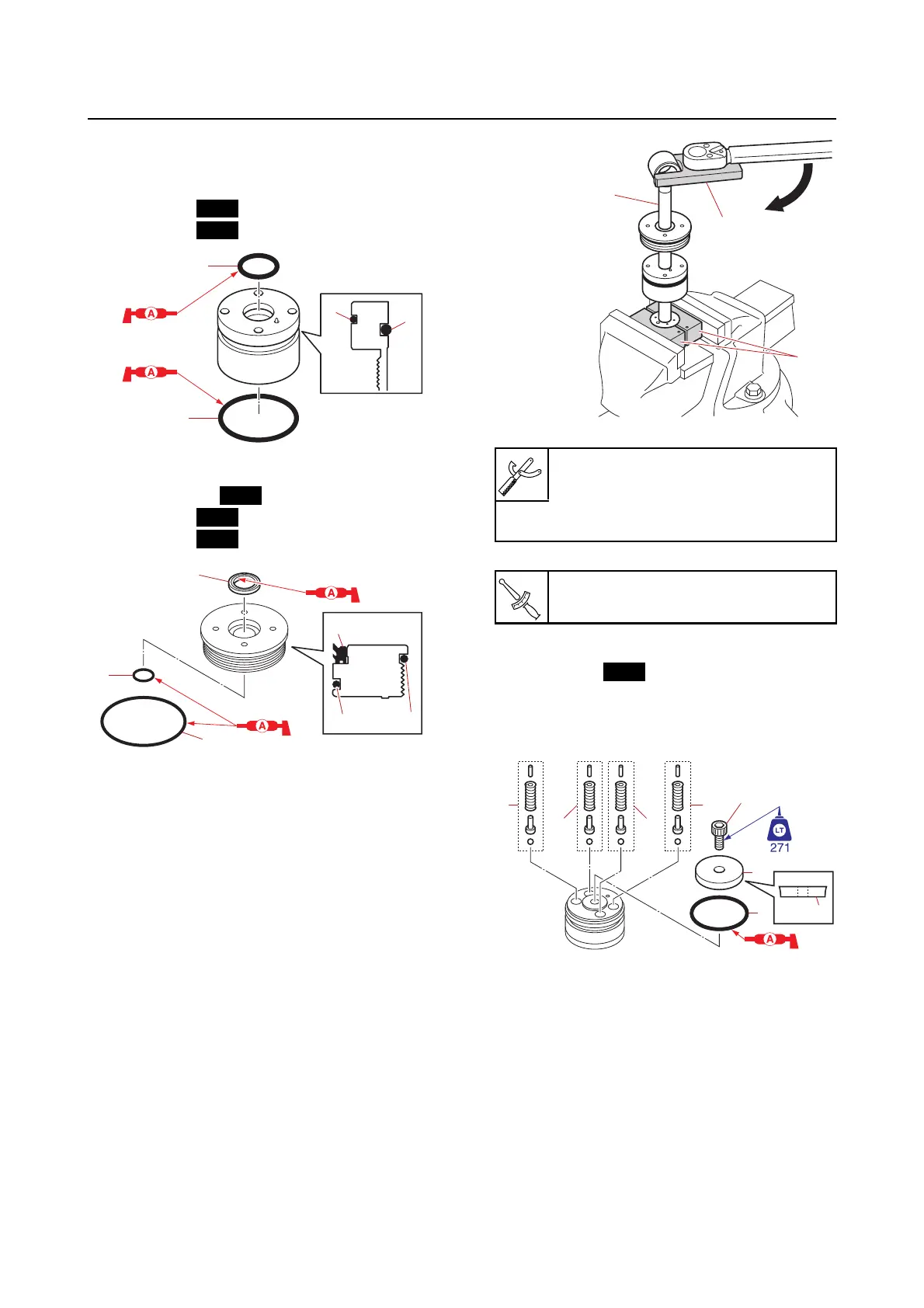

Assembling the trim and tilt ram as-
sembly
1. Install:
• O-ring “1”
• O-ring “2”
2. Install:
• Dust
seal “1”
• O-ring “2”
• O-ring “3”
3. Install:
• Trim cylinder
end screw (to the trim and tilt
ram)
• Tilt cylinder end screw
(to the trim and tilt
ram)
• Ball (to the tilt piston)
• Pin
(to the tilt piston)
4. Install:
• Trim and tilt ram “1”
5. Install:
• O
-ring “1”
• Absorber val
ve “2”
• Plate “3”
• Tilt piston bolt “4”
New
New
1
1
2
2
New
New
New
3
2
1
1
2
3
Tilt rod wrench “2”
90890-06569
PTT piston vice attachment “3”
90890-06572
Trim and tilt ram “1”
65 N·m (6.5 kgf·m, 48 lb·ft)
1
2
3
T
R
.
.
New
3
22
22
1
4
3
