Chapter 45 Collaborative Detection & Response
ZyWALL Series CLI Reference Guide
413

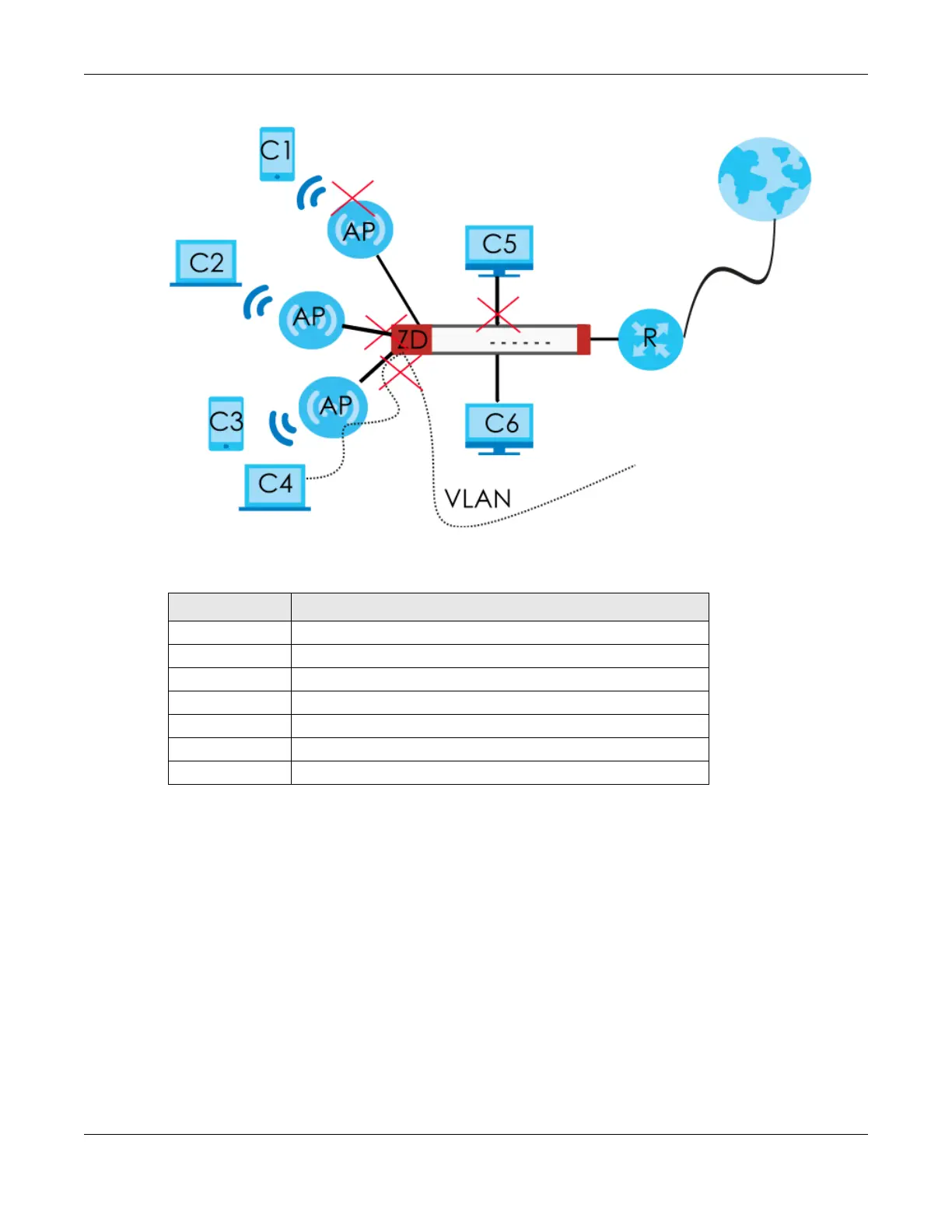

Figure 35 CDR Example Scenario
This the graphic key.
45.2 Before You Begin
• You must have active and up-to-date Web Filtering, Anti-Malware, IPS (Intrusion Prevention System),
and CDR (Collaborative Detection & Response) licenses.
• Malicious traffic is detected in two phases.
• Web Filtering (URL Threat Filtering), Anti-Malware (Anti-Virus) and IPS (IDP) signatures first identify
malicious traffic and inform the CDR daemon. If these licenses have expired or are not active, then
no checking for malicious traffic is done.
Table 221 CDR Example Scenario Graphic Key
LABEL DEFINITION
C1 to C4 WiFi clients
C5 to C6 Wired clients
AP Access Point
S VLAN-aware Switch
ZD Zyxel Device
R Router giving access to the Internet
VLAN VLAN configured to isolate traffic from a quarantined client
