ABB IRC5 - Page 156

2 Installation and Commissioning, IRC5
2.9.11. Installing the EPS board DSQC 646 for Electronic Position Switches
3HAC021313-001 Revision: K154
© Copyright 2004-2008 ABB. All rights reserved.

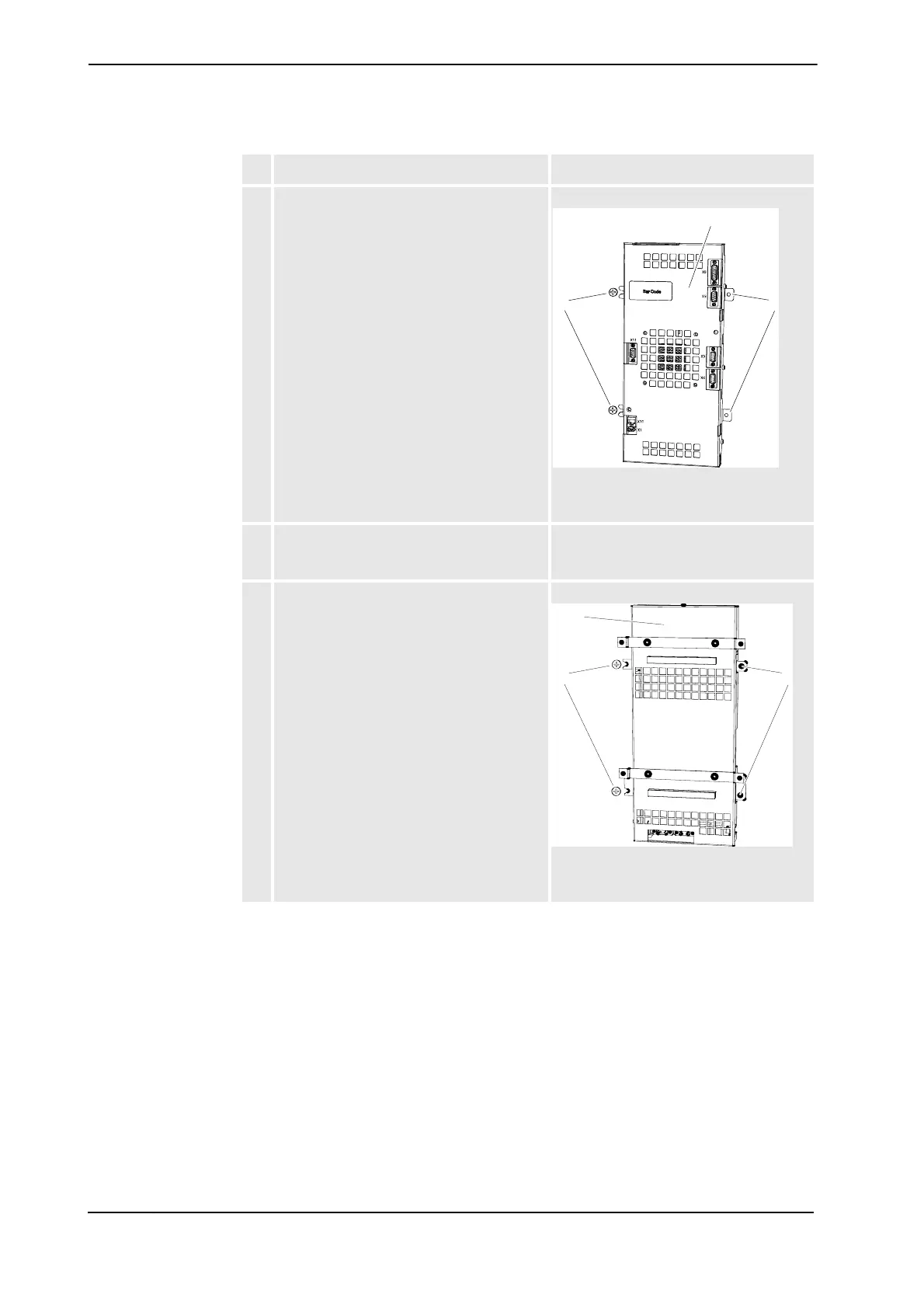

5. Remove the attachment screws of the axis
computer.
xx0500002002
• A: axis computer
• B: attachment screws
6. Lift out the axis computer so that the EPS
board can be fitted behind the axis
computer.
7. Fit the EPS board in the same place as the
axis computer was before.
xx0600003204
• A: EPS board
• B: attachment screws
Action Note/illustration
A
B B
A
B
B
Continued
Continues on next page
