2 Installation and Commissioning, IRC5
2.9.12. Installing the SafeMove board DSQC 647
1613HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.

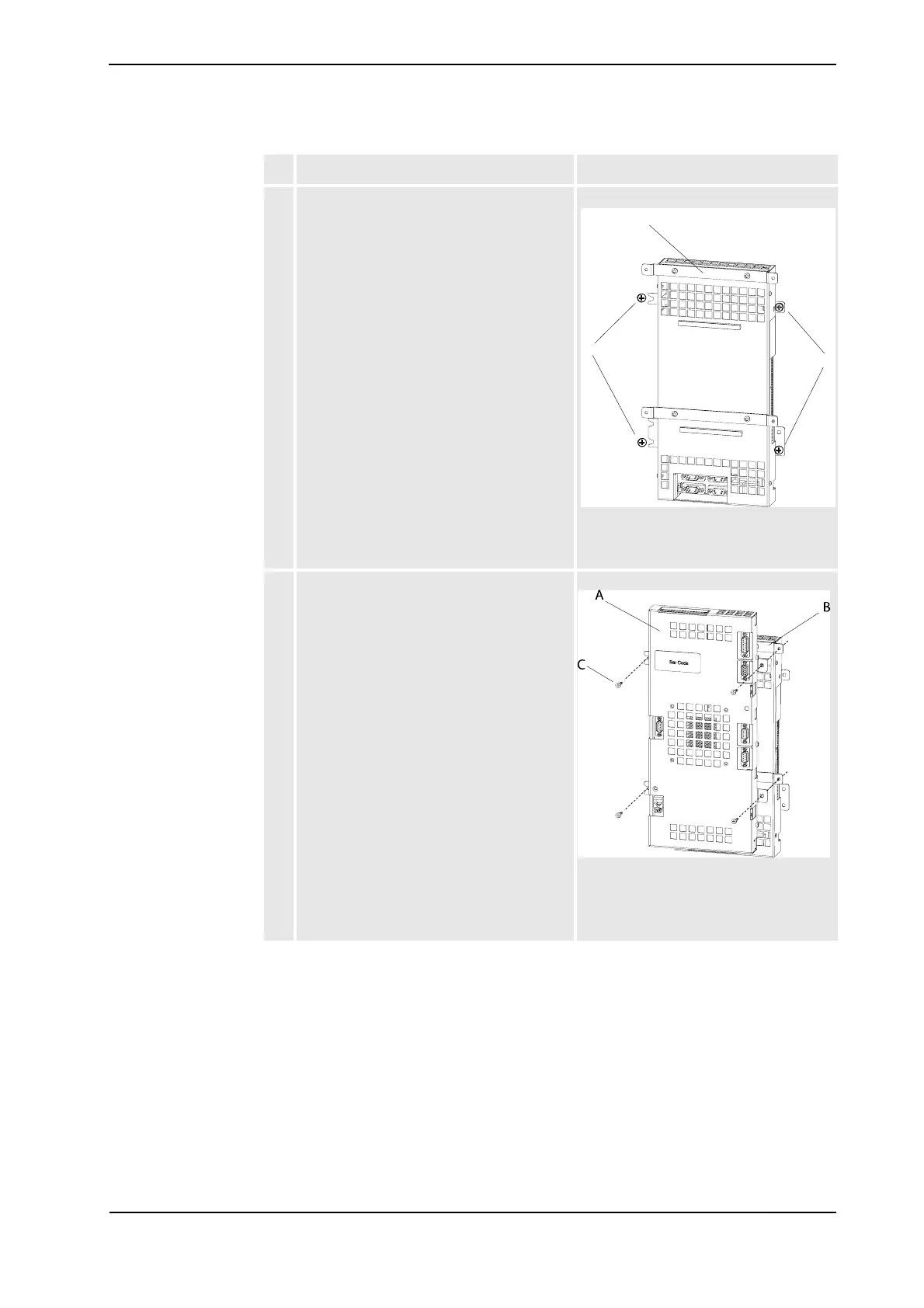

7. Fit the SafeMove board in the same place as
the axis computer was before.
xx0800000104
• A: SafeMove board
• B: attachments screws (4 pcs)
8. Fit the axis computer on the SafeMove
board.
xx0800000017
•A: Axis computer
• B: SafeMove board
• C: attachment screws (4 pcs)
Action Note/illustration
Continued
Continues on next page
