Accutome B-Scan Plus - Figure 60 Selecting Gain Adjustment

80
Accutome B-Scan Plus User Guide

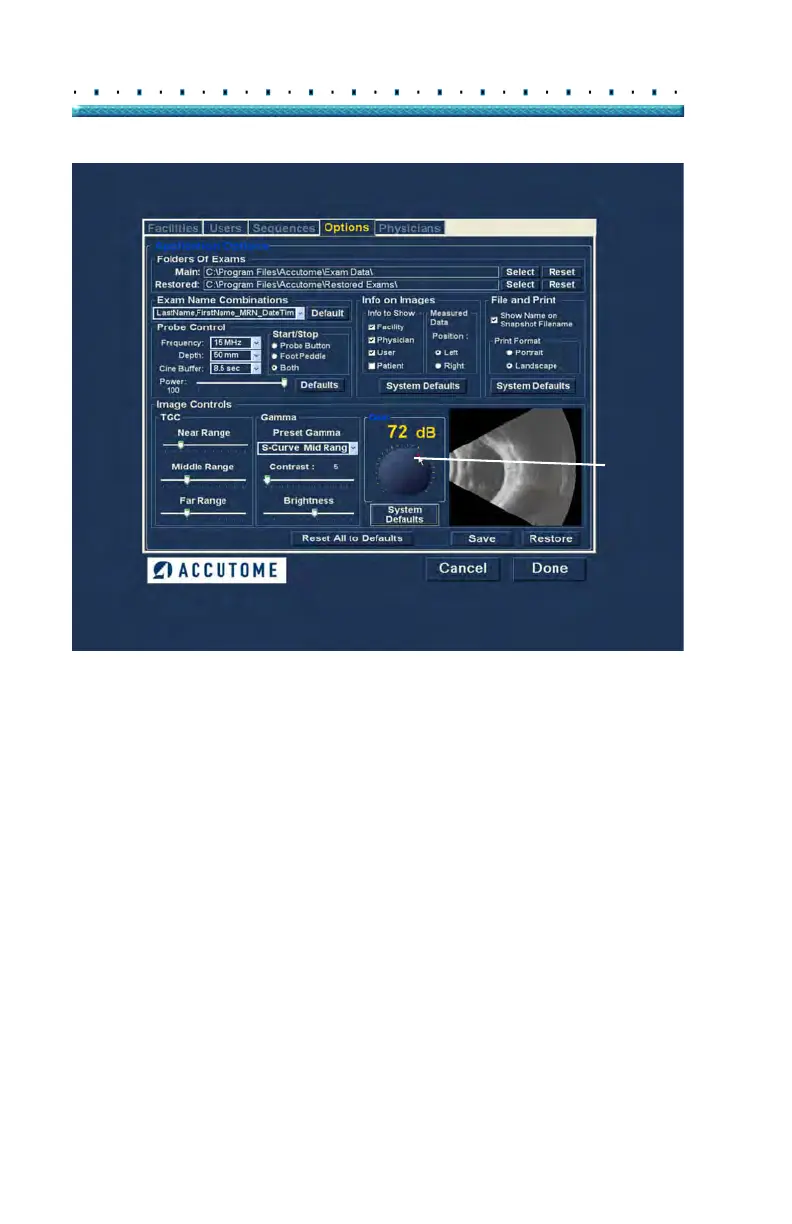

Figure 60 Selecting Gain Adjustment
2. Drag the knob until the dB level (and the image
visual) reaches the appropriate level as shown in
Figure 61 on page 77.
Gain
Adjustment
Knob
