Accutome B-Scan Plus - Figure 78 Selecting Operator; Operator

99
Performing Exams Initial Exam Screen
Operator
In the Operator field you can select the operator for the
Patient Exam by selecting the name from the drop down
list. Operator names are entered in the B-Scan Setup on
the Users tab. (Refer to Chapter 4 of this manual.)
Position the cursor on the small arrow at the right of the
operator field. Left click to open the drop down list.
Position the mouse over the up/down arrows at the right
of the drop down list Click the mouse to move through
stored operators. Once you see the operator you want to
select, position the mouse cursor over the operator and
left click. The selected operator will fill in the operator
field.

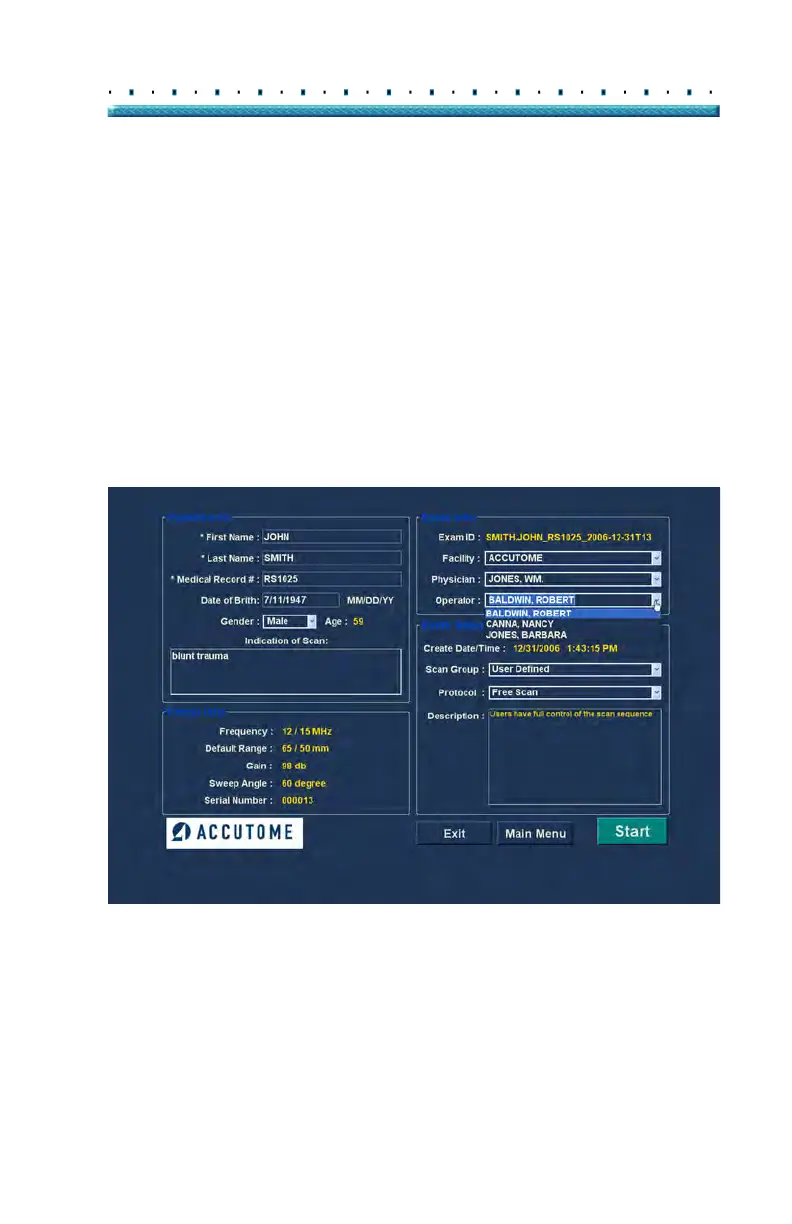

Figure 78 Selecting Operator
