Agilent Technologies 5DX Service Guide

5-26 Panel Handling Subsystem
XYZ Stage Assembly 5DX Series 3
Panel Clear Sensors
There are two to four Panel Clear Sensors within the Main Cabinet. If the 5DX has
a middle rail installed, there will be four panel clear sensors. Otherwise, there
should only be two. The Panel Clear Sensors are positioned close to the movable
barriers. The purpose of the Panel Clear Sensor is to detect a panel when the XYZ
Stage Assembly is in the load or unload positions. They prevent the outer barrier
from closing on a panel.

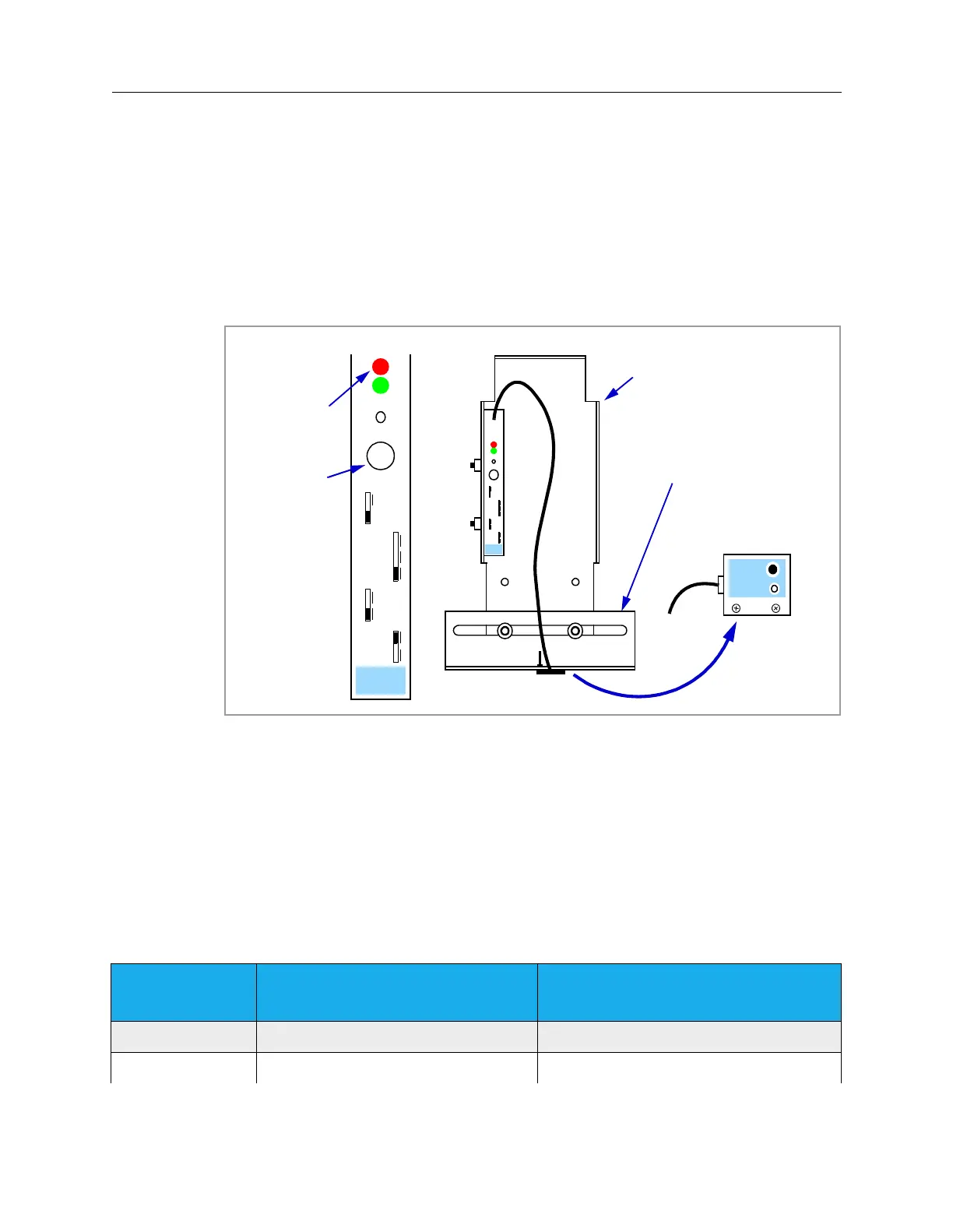

Figure 5-15: Panel Clear Sensor
The Panel Clear Sensors are inputs to the Digital I/O Assembly. The input bits
associated with the Panel Clear Sensors are listed in Table 5-6. The input can be
monitored by running Utilities > Service > Panel Handling > Hardware
Control from the 5DX menu. The sensors are visually represented on the Panel
Transport tab by circles near the outer barriers. A white circle indicates a clear
sensor while a black circle indicates a blocked sensor.
Table 5-6: Panel Clear Sensor
Input Bit
Number
Hardware Status and Control
Description
Digital I/O Assembly Description
33 Clear/Blocked Panel Optical Sensor Left Outer Barrier Clear
43 Clear/Blocked Panel Optical Sensor Right Outer Barrier Clear
SET
PS-T1
LOCK
OFF.D
ON.D
OFF
D.ON
L.ON
FINE
TURBO
SET
PS-T1
LOCK
OFF.D
ON.D
OFF
D.ON
L.ON
FINE
TURBO
Adjustable
mounting bracket
Sensor
Amplifier
Panel Clear
Sensor
Fixed mounting
bracket
Set
Button
Red
LED
