To define the period of inactivity:

1. Tap the Login Settings button.

The Login Settings window is displayed.

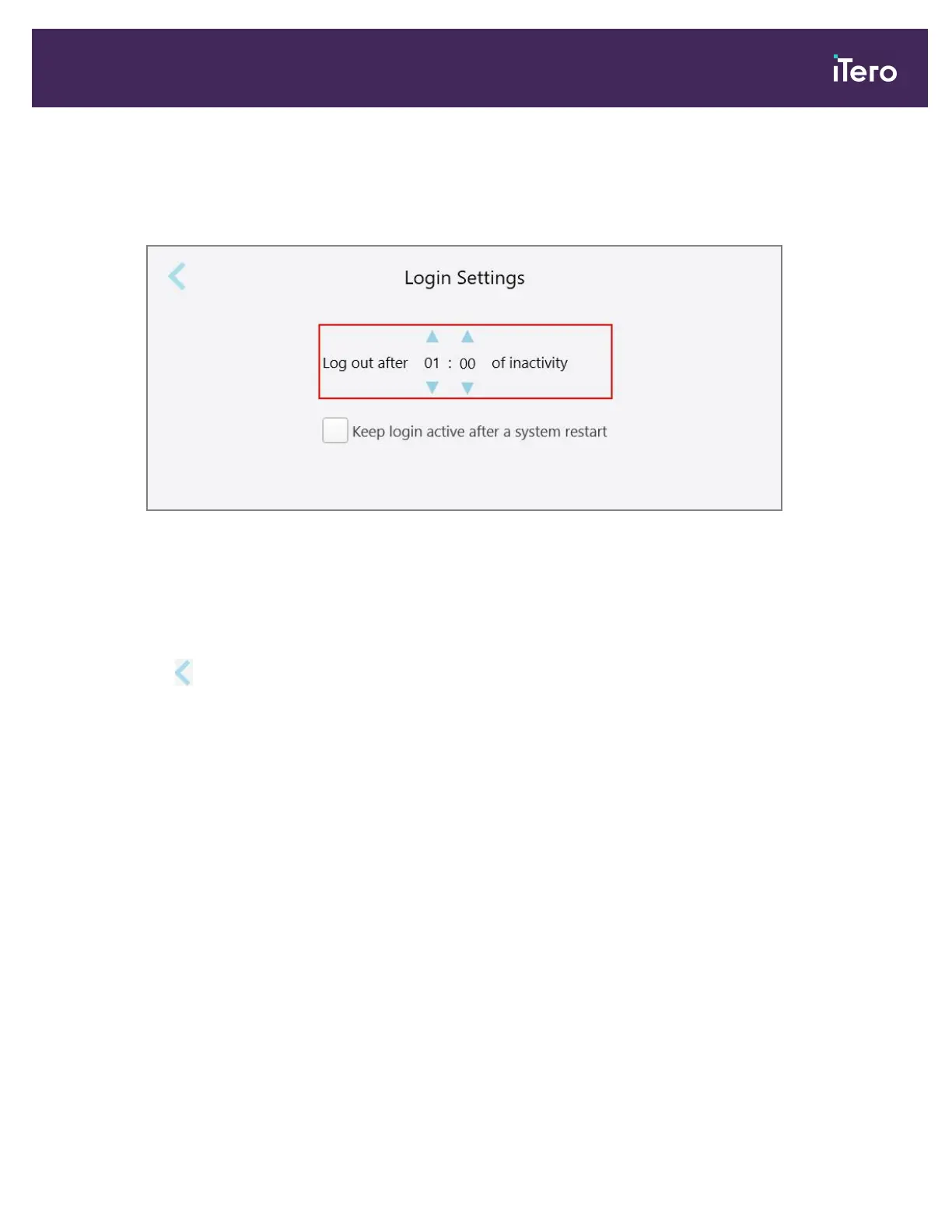

Figure 71: Login Settings window

2. Select the period of inactivity after which the user will be logged out of the scanner. (Min time: 10 minutes, Max

time: 8 hours)

3. Select the Keep login active during system restart check box to remember the user’s password if the

system restarts before the inactivity logout period has elapsed.

Tap to save the changes and return to the Settings window.
