10.6 Working with the Eraser tool

The Eraser tool enables you to erase a selected area of the scanned model and then rescan only the

erased area.

For example:

You can remove moisture and artifacts, such as blood or saliva, that are covering the margin.

If the prepped tooth shows areas of red on the Occlusal Clearance legend, you can reduce the prepped tooth,

erase the area on the model, and then rescan it, as described below.

To erase part of the scan:

In the View window, ensure you are on the relevant section to be erased, and then tap the Eraser tool .

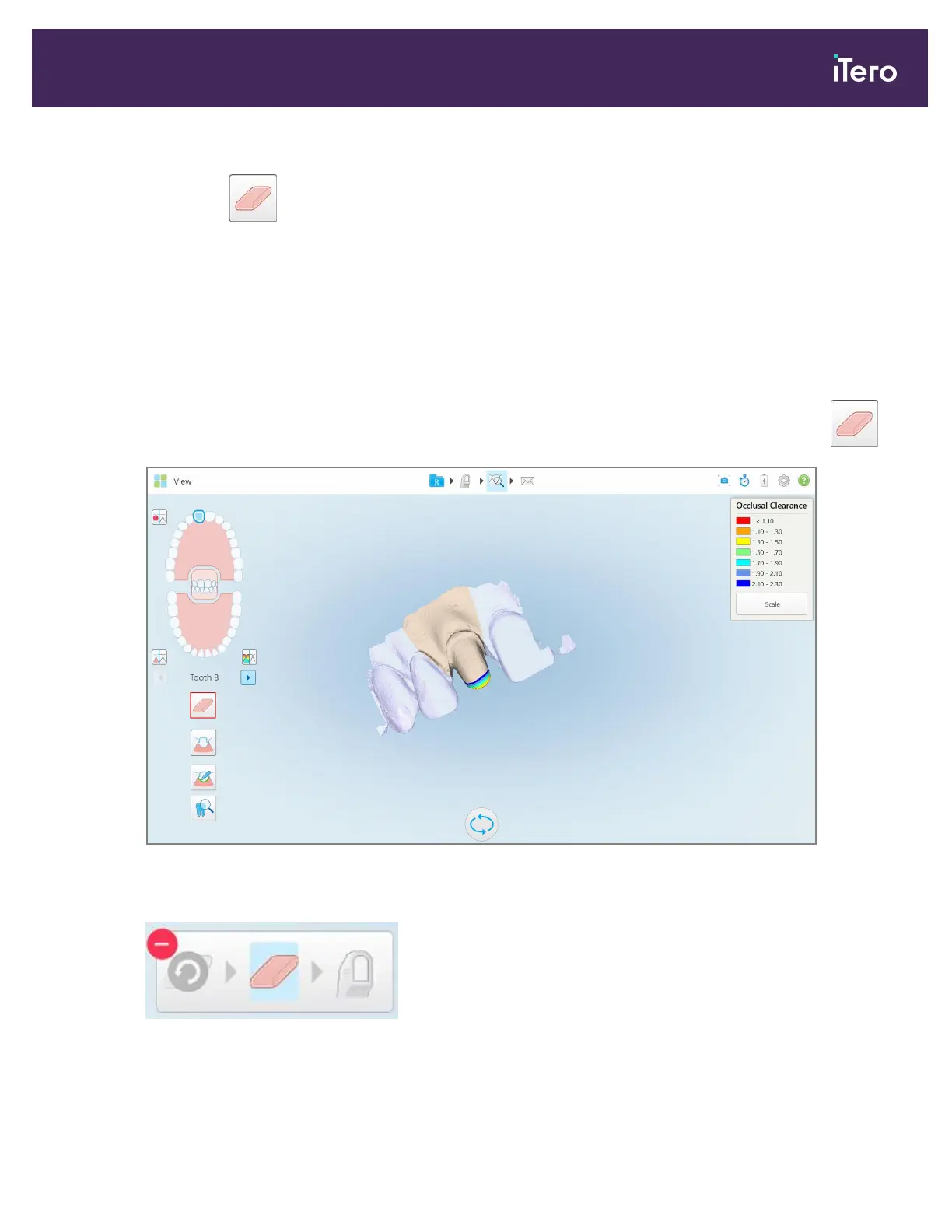

Figure 157: Eraser tool
