4.6.2 Defining the User settings

The User settings enable each user to define the settings that are displayed by default when the specific user logs

in to the scanner.

4.6.2.1 Defining the scan settings

You can define the default settings that are taken into account when scanning a patient.

To define the scan settings:

1. Tap the Scan Settings button.

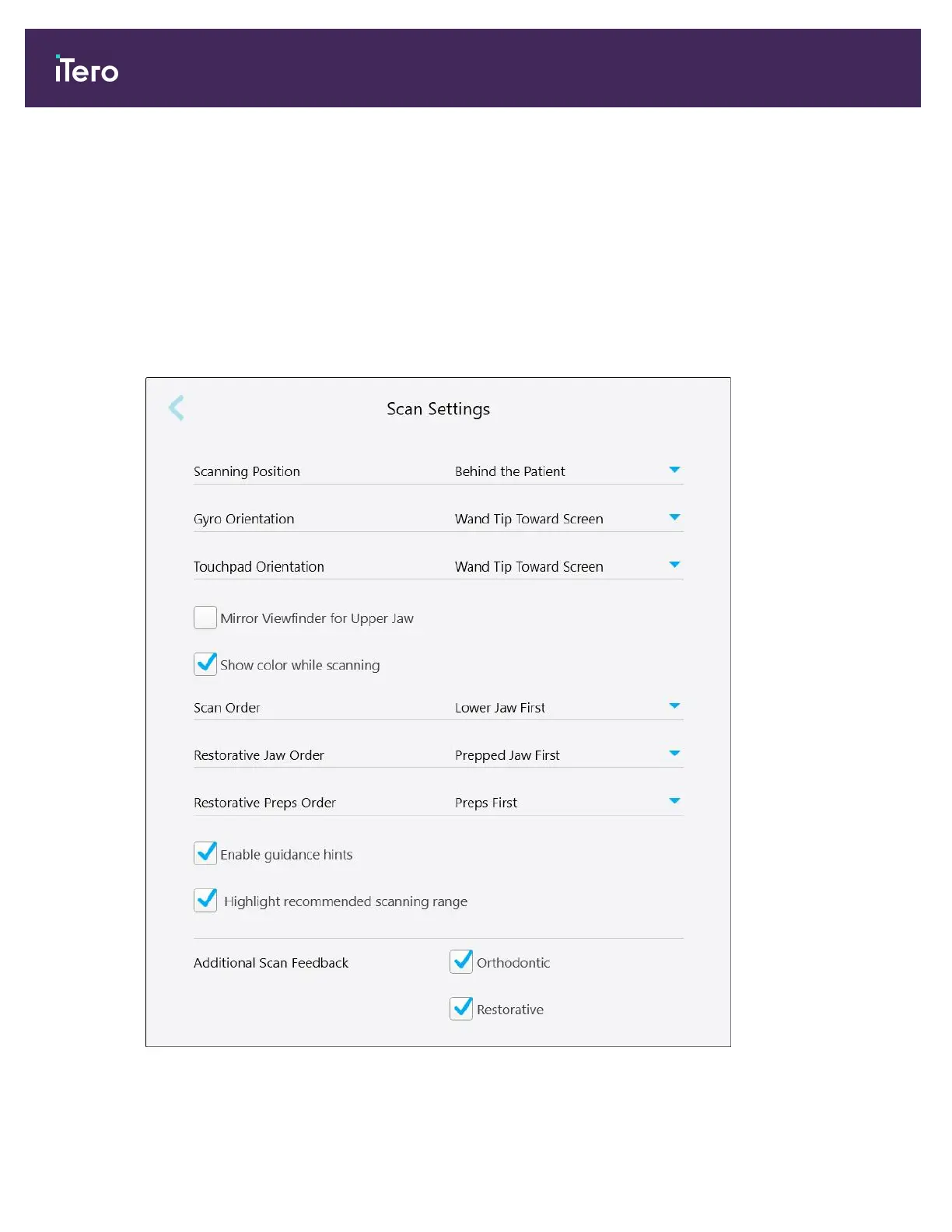

Figure 63: Scan Settings window
