4.6.1 Defining the Computer settings

The Computer settings enable you to define the brightness, volume, Wi-Fi, and time- zone settings for the

scanner.

4.6.1.1 Defining the default brightness setting

To define the default brightness setting, tap the Brightness button, move the slider to the required brightness

level, and then tap to save the changes and return to the Settings window.

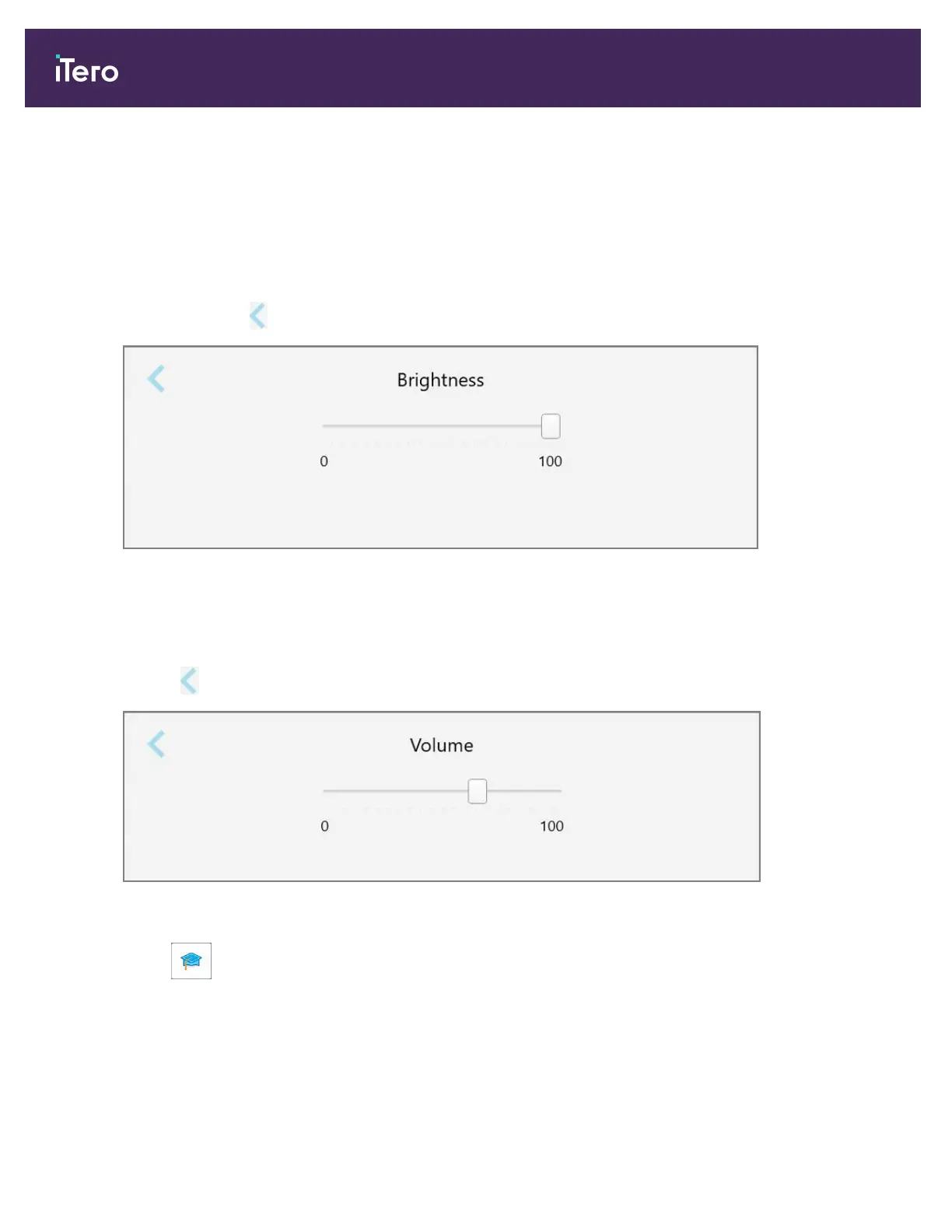

Figure 57: Brightness settings

4.6.1.2 Defining the default volume setting

To define the default system volume, tap the Volume button, move the slider to the required volume level, and

then tap to save the changes and return to the Settings window.

Figure 58: Volume settings

In addition to the system sounds, the volume settings define the volume for the content from the Learning

Center .
