4.6.1.3 Defining the Wi-Fi settings

The first time you connect the scanner to the clinic’s Wi-Fi network, you will need to add the password. After that,

by default, the scanner will connect automatically. If you want to connect to a different Wi-Fi network, select the

new network and enter the relevant password.

To reconnect to a Wi-Fi network:

1. Tap the Wi-Fi button.

A list of nearby Wi-Fi networks is displayed.

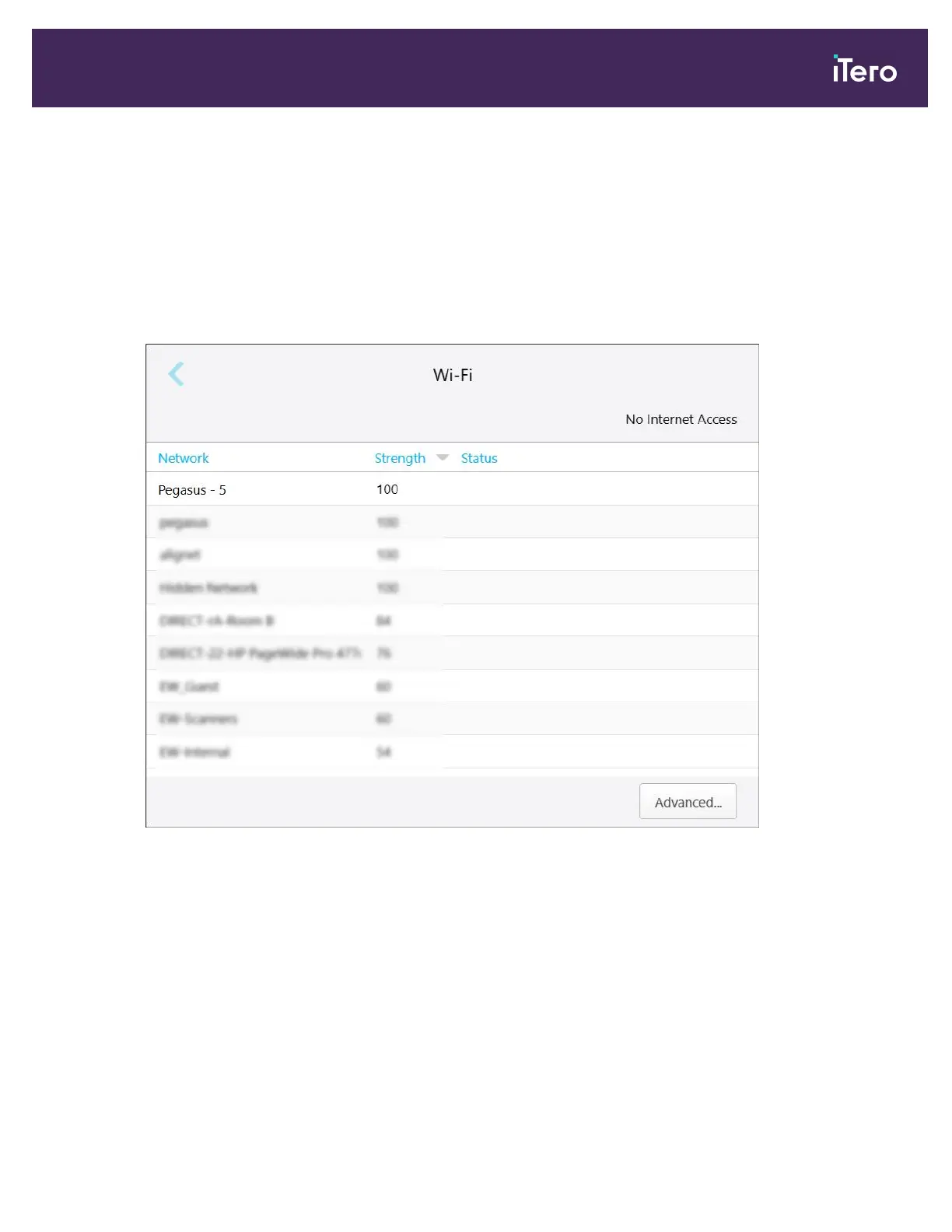

Figure 59: List of nearby Wi-Fi networks

2. Select the clinic network, for example, Pegasus - 5, and then tap Connect.
