3. Select the clinic network from the list and then tap Connect.

You are prompted to enter the network security key.

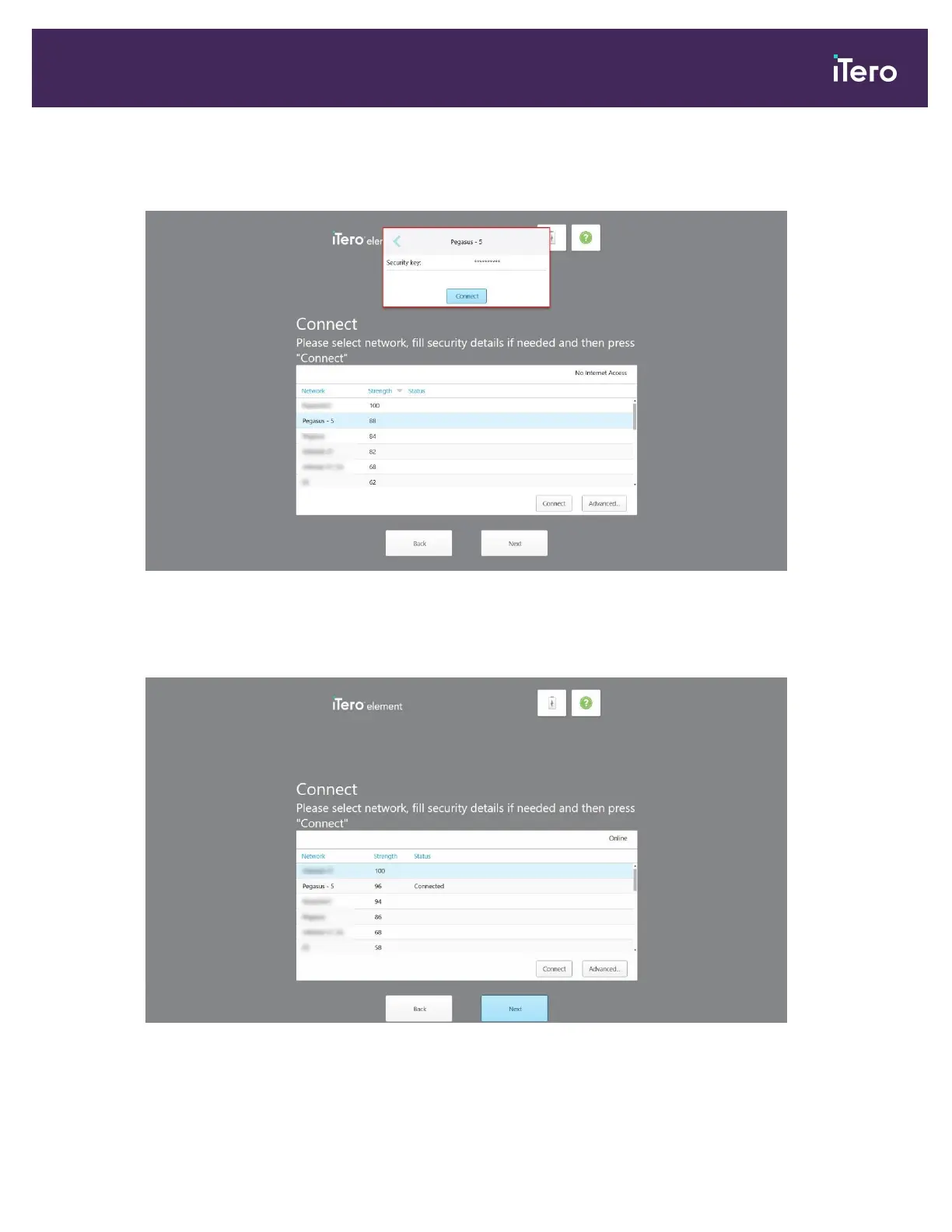

Figure 21: Entering the security key

4. Enter the security key and then tap Connect.

The scanner is now connected to the Internet and online.

Figure 22: Scanner is connected to the Internet and online
