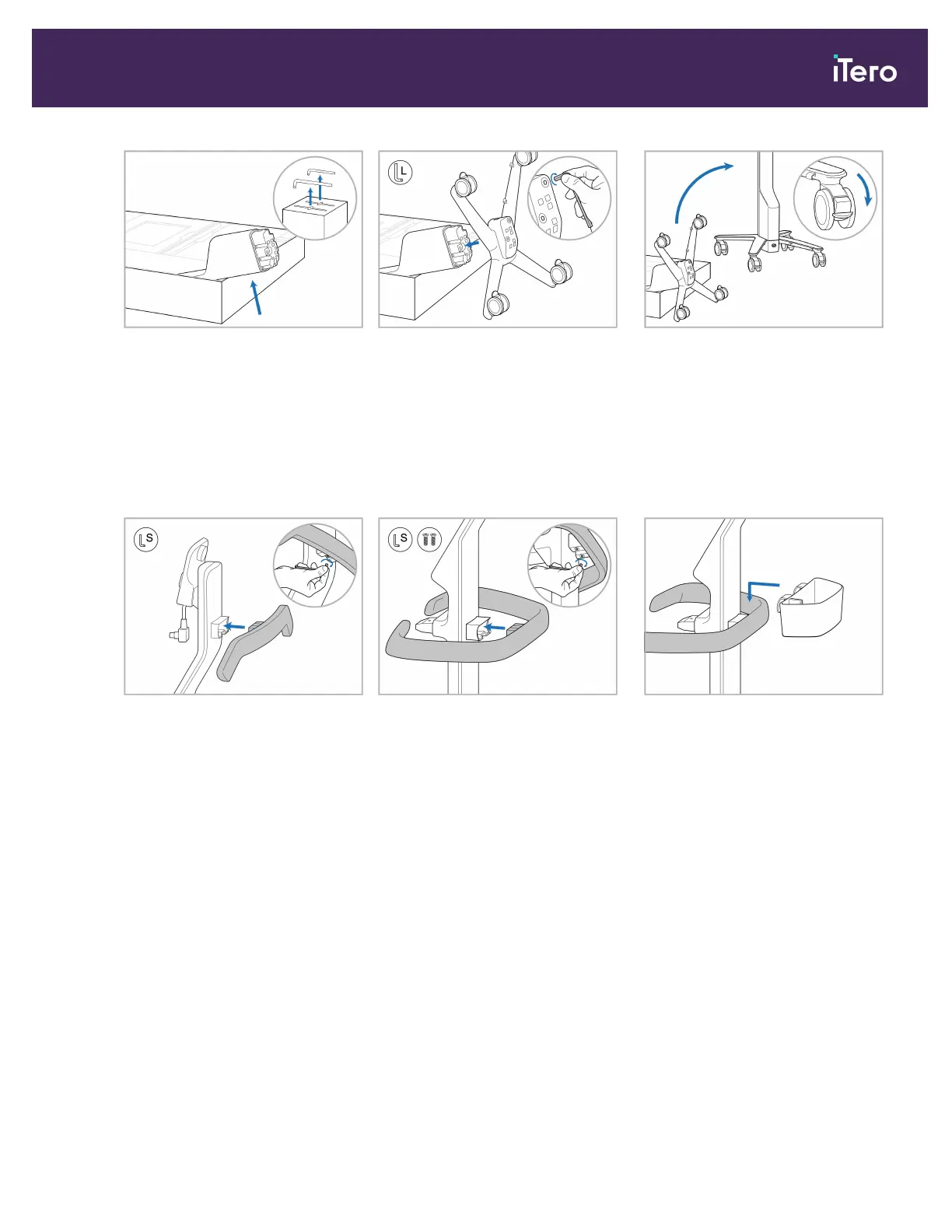

1. Remove the foam covering the
post (B).
Note: The two Allen keys (A)
are on top of the foam.
2. Lift the post (B), pull it out
slightly and rest it on the side of
the box.
3. Attach the wheel base (C) to the
end of the post (B) and tighten
using the large Allen key.
Note: Always use the shorter
side of the Allen keys to make
sure the screws are fully
tightened.
4. Move the wheel stand to an
upright position and lock at least
2 wheels.
5. Remove the upper handle (D)
from the accessory box. Attach
it to the post (B) and tighten
using the small Allen key.
6. Remove the main handle (E) and
the 2 screws from the accessory
box. Attach the handle and
tighten using the screws and the
small Allen key.
7. Place the sleeve basket (F) on
the back of the main handle (E).
iTero Element 5D and iTero Element 5D Plus imaging systems User manual
© 2022 Align Technology, Inc. All rights reserved. 21
