Module PresentModule Present
TransceiverTransceiver
InformationInformation
55..11..33..66 TransceiverTransceiver

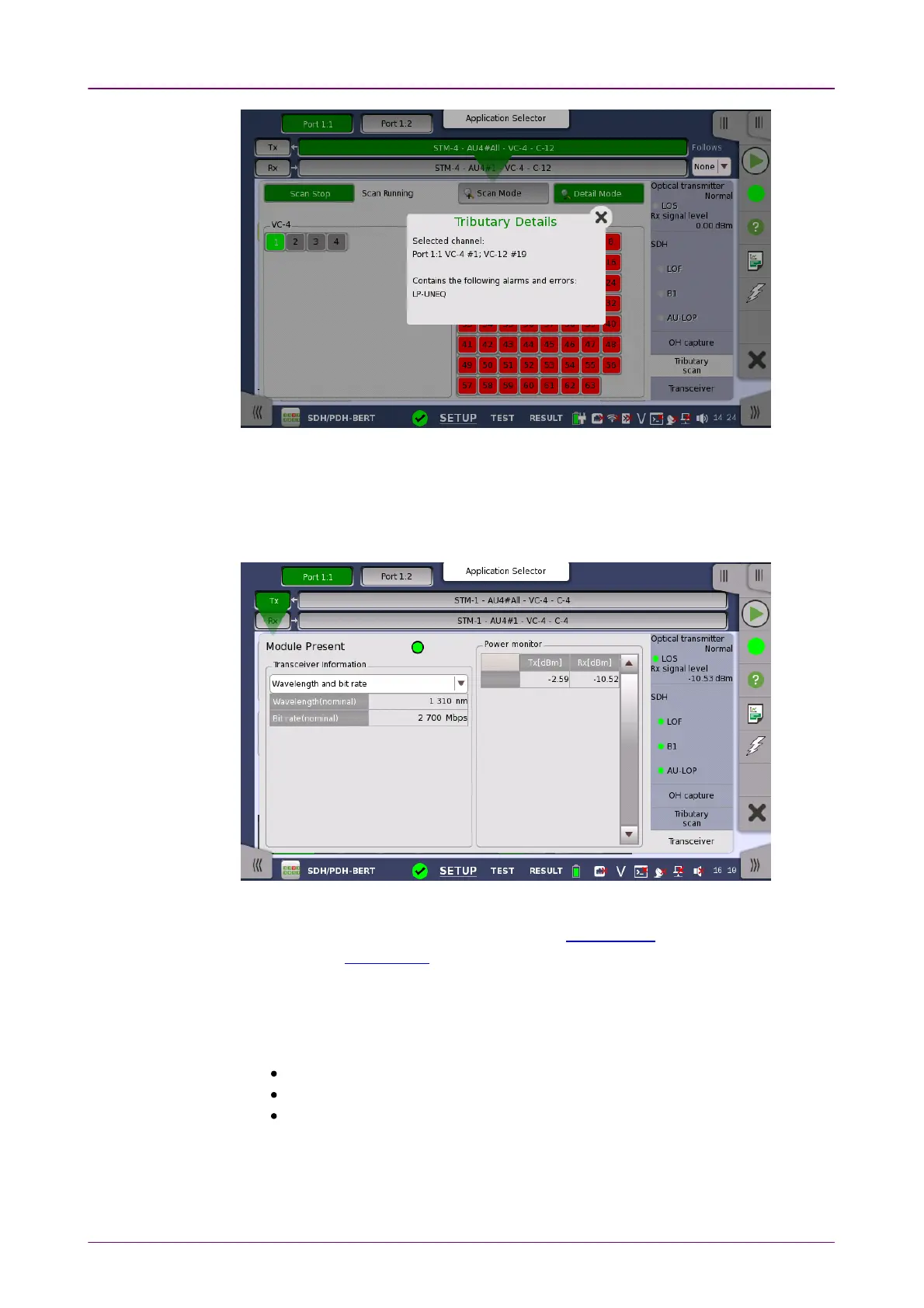

Touching the TransceiverTransceiver button in the status area of the Ports SetupPorts Setup screen
launches the dialog shown below.
This dialog box presents status information about the optical transceiver.
When the optical transceiver is SFP or SFP+, I2C analysisI2C analysis appears. Refer to
description of Transceiver in Ethernet Applications.
GreenGreen indicates that an optical transceiver is currently mounted.
Select the information from pull down menu.
Wavelength and bit rateWavelength and bit rate shows the nominal wavelength and bit rate.
ComplianceCompliance shows the available standards.
Vendor informationVendor information shows the data stored in the optical transceiver.
Tune wavelengthTune wavelength
When the optical transceiver is a tunable SFP, following items are displayed for
Wavelength and bit rateWavelength and bit rate.
