ScanningScanning
DetailsDetails
55..11..33..55 Tributary scanTributary scan

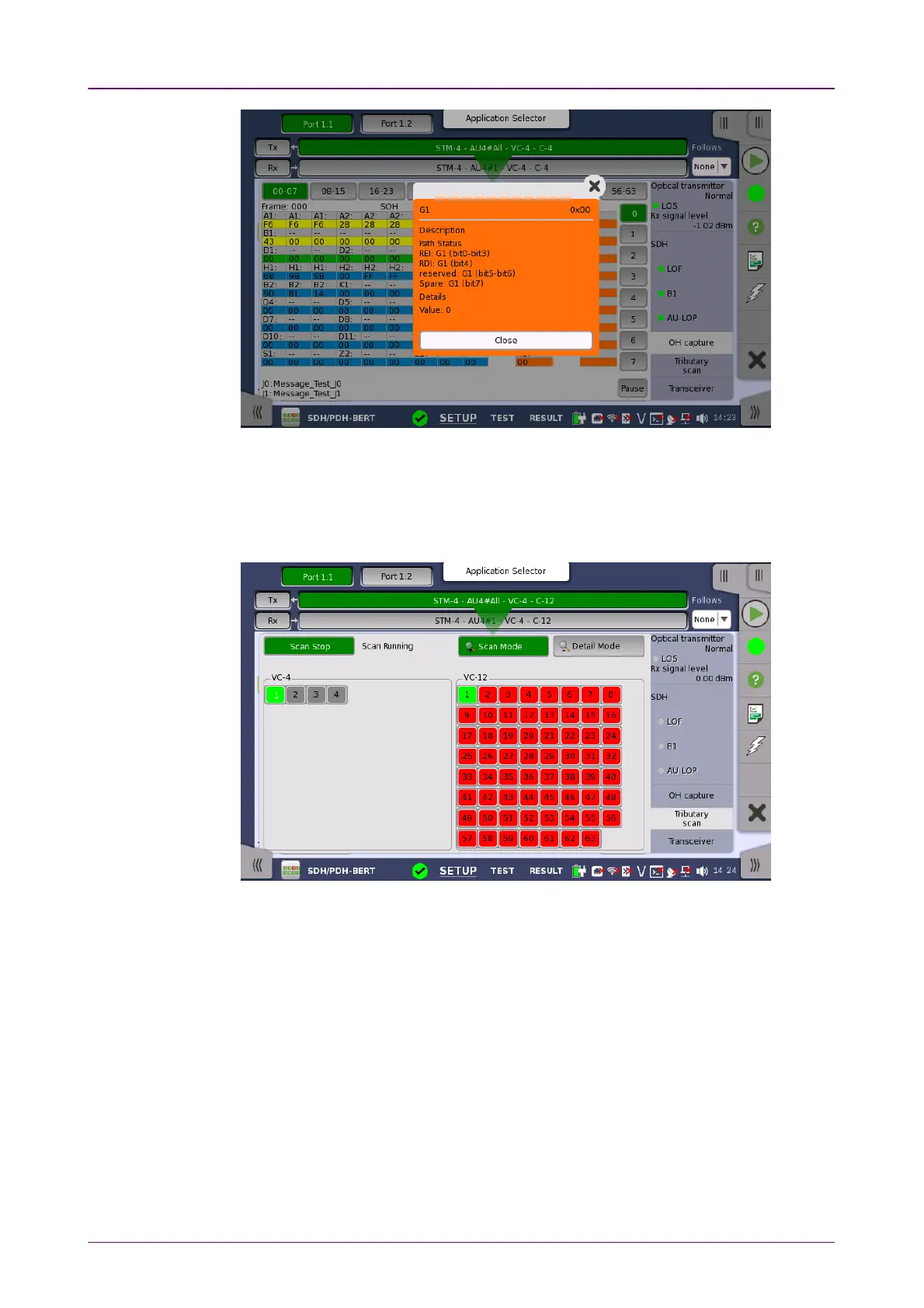

Touching the Tributary scanTributary scan button in the status area of the Ports SetupPorts Setup screen
displays the status shown below.
This screen allows to measure the alarms and errors of all VC-containers in the
High order or the Low order at the same time. Note that the Low order scan is
performed against the High order channel which you have selected.
This button appears when the Low order channel exists. In Scan Mode, touch
the Scan StartScan Start button to start the scanning. To stop the scanning touch the ScanScan
StopStop button (same button, which toggles between the two functions).
To view detailed information for a specific channel, touch the Detail ModeDetail Mode
button and then touch the channel number.
