Bulk PatternBulk Pattern
J1J1: Path Trace
Idle Char is an ASCII code used for the padding.
B3B3: Path BIP-8 This byte cannot be set.
C2C2: Signal label
G1G1: (bit 1 to 4) REI (bit 5) RDI (bit 6 and 7) Reserved (bit 8) Spare
F2,Z3F2,Z3: Path user channels
H4H4: Multiframe indicator
Z4Z4: (bit 1 to 4) Automatic protection switching (APS) channels (bit 5 and 6)
Spare (bit 7 and 8) Data link
Z5Z5: Network operator byte
J2J2: Path Trace
Idle Char is an ASCII code used for the padding.
V5V5: (bit 1 and 2) BIP-2 (bit 3) REI (bit 4) RFI (bit 5 to 7) Signal label (bit 8) RDI
Z6Z6: Network operator byte
Z7Z7: (bit 1) Extended signal label (bit 2) Low order virtual concatenation (bit 3
and 4) Automatic protection switching (APS) channels (bit 5 to 7) Reserved (bit
8) Data link

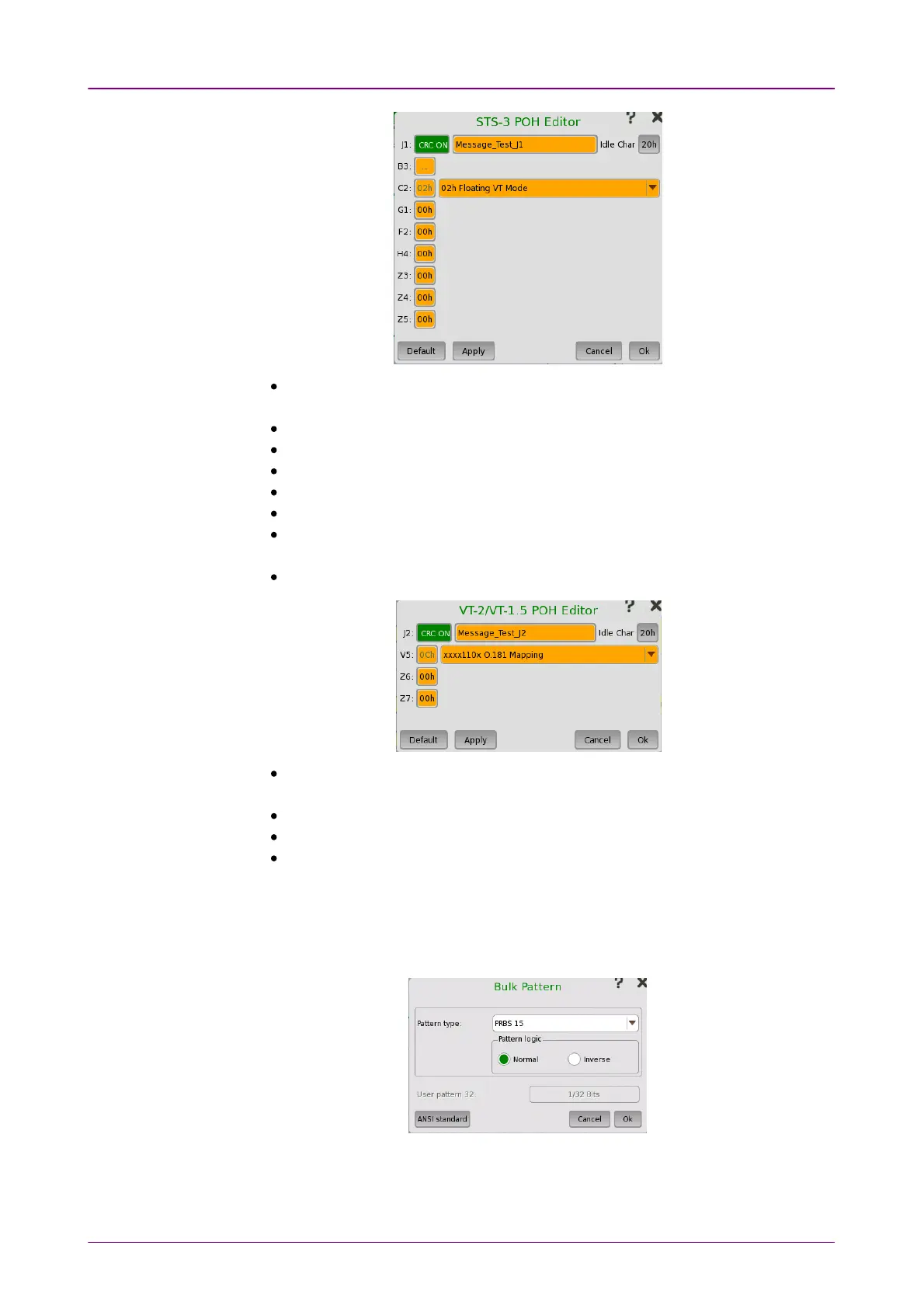

To set up the bulk pattern, touch the Configure xxxxxConfigure xxxxx button to launch the Bulk Bulk
PatternPattern dialog box.
Pattern typePattern type
Select a predefined pattern or define a user pattern.
