Summary fieldSummary field
List-form informationList-form information

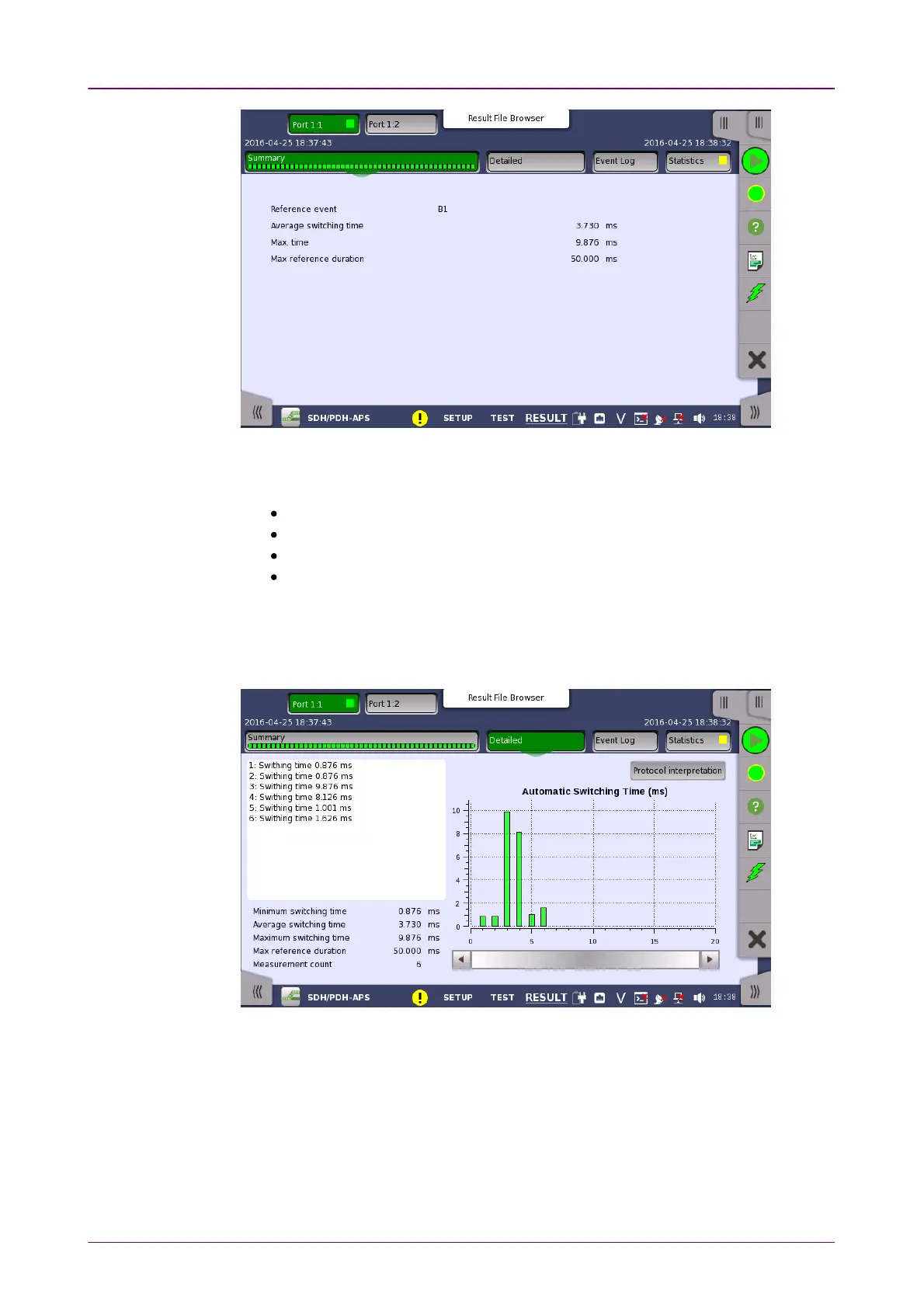

This screen presents a summary of the results of the APS test.
For each port the following information is displayed:
Reference event
Average switching time
Max. time
Max reference duration
55..88..33..22 Details for APSDetails for APS
Touching the DetailedDetailed button will display the screen shown below.
This screen shows the duration of all reference events, both in a list and in a
graphic representation. This screen contains the summary field displayed
below the list.
Consists of the minimum, maximum, and average automatic switching times in
milliseconds, the specified Max. reference duration value, the number of
measurements.
Presents the automatic switching times in list-form.
