ETHETH
CustomCustom button appears for BERT application only.
Frame ContentFrame Content

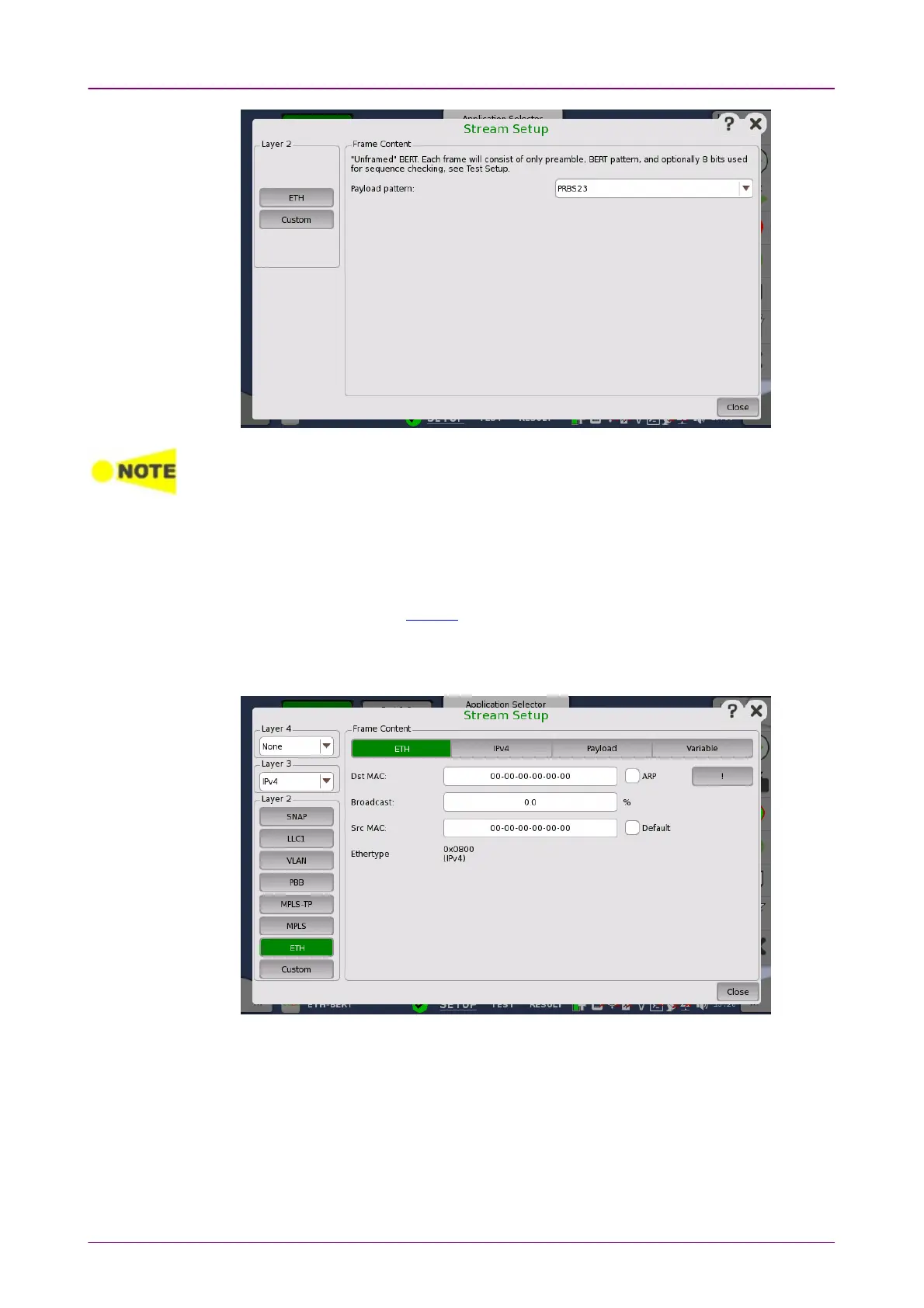

Touch the Payload pattenPayload patten field to set the pattern for the bit error rate test. Each
frame consists of only preamble and payload pattern.
One byte for the sequence check will be appended by selecting EnableEnable
sequence checkingsequence checking on Stream screen of Test Setup.
Touching the ETHETH layer button displays the parameters available for the
Ethernet header.
The Ethernet (MAC) header contains MAC addresses and Ethertype.
Dst MACDst MAC
The
Destination MAC address
can either be specified manually. This can be
decided based on an ARP lookup when IPv4 is set to Layer 3 or based on an
NDP when IPv6 is set to Layer 3.
To enable ARP or NDP, select the ARPARP check box or the NDP(NS/NA)NDP(NS/NA) check
box to the right of the Dst MACDst MAC field.
