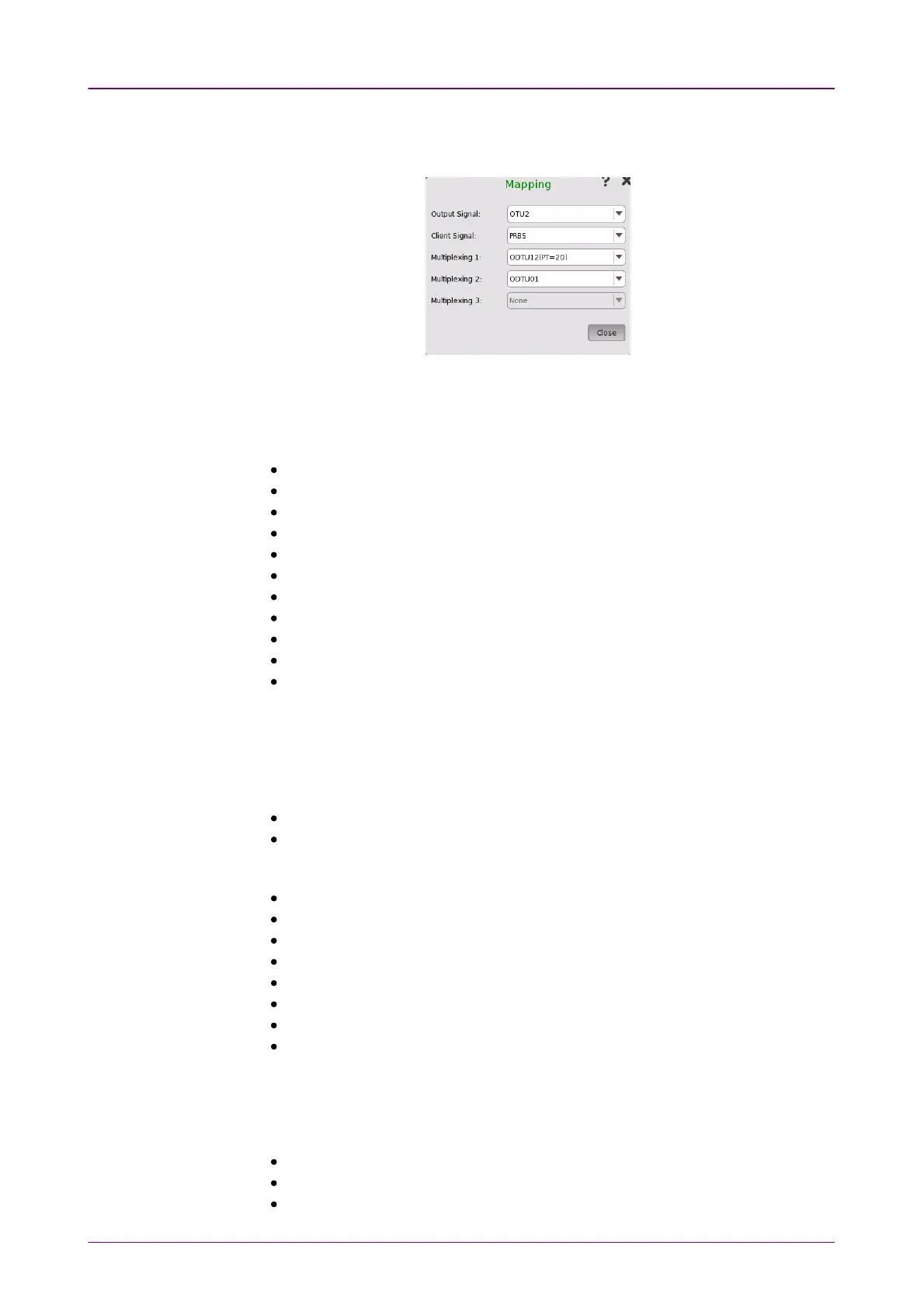

Touching the MappingMapping button in the upper left-hand corner of the Ports SetupPorts Setup
screen launches the dialog box shown below.
This dialog box allows you to define OTUk frame mapping.
Output SignalOutput Signal
Defines the bit rate the output from the Tx port.
OTU1OTU1: 2.666 Gbit/s
OTU2OTU2: 10.709 Gbit/s
OTU2(Ext.OPU2)OTU2(Ext.OPU2): 10.709 Gbit/s
OTU1eOTU1e: 11.049 Gbit/s
OTU2eOTU2e: 11.096 Gbit/s
OTU1fOTU1f: 11.270 Gbit/s
OTU2fOTU2f: 11.318 Gbit/s
OTU3OTU3: 43.018 Gbit/s
OTU3e1OTU3e1: 44.571 Gbit/s
OTU3e2OTU3e2: 44.583 Gbit/s
OTU4OTU4: 111.810 Gbit/s
Client SignalClient Signal
Defines the Client Signal. The available values change depending on the output
signal type and the application.
For the OTN application
PRBSPRBS: PRBS
NULLNULL: Null
For the Ethernet +OTN application
GbEGbE: Giga bit Ethernet (1.25 Gbit/s)
10GbE10GbE: 10 Giga bit Ethernet (10.3125 Gbit/s)
40GbE40GbE: 40 Giga bit Ethernet (41.25 Gbit/s)
100GbE100GbE: 100 Giga bit Ethernet (103.125 Gbit/s)
EthernetEthernet: Variable rate
MPLSMPLS: MPLS header and payload without Ethernet header
IPv4PDUIPv4PDU: IPv4 header and payload without Ethernet header
IPv6PDUIPv6PDU: IPv6 header and payload without Ethernet header
Following options appear when Output signal is set to OTU4OTU4 in BERT application.
MPLS, IPv4PDU, IPv6PDU
For the SDH/SONET/PDn/DSn +OTN application
STM256(Async)STM256(Async): Synchronous Transport Module-256 (39813.12 Mbit/s)
STM64(Async)STM64(Async): Synchronous Transport Module-64 (9953.28 Mbit/s)
STM64(Sync)STM64(Sync): Synchronous Transport Module-64 (9953.28 Mbit/s)
