Selecting type ofSelecting type of
resultsresults
Selecting notationSelecting notation

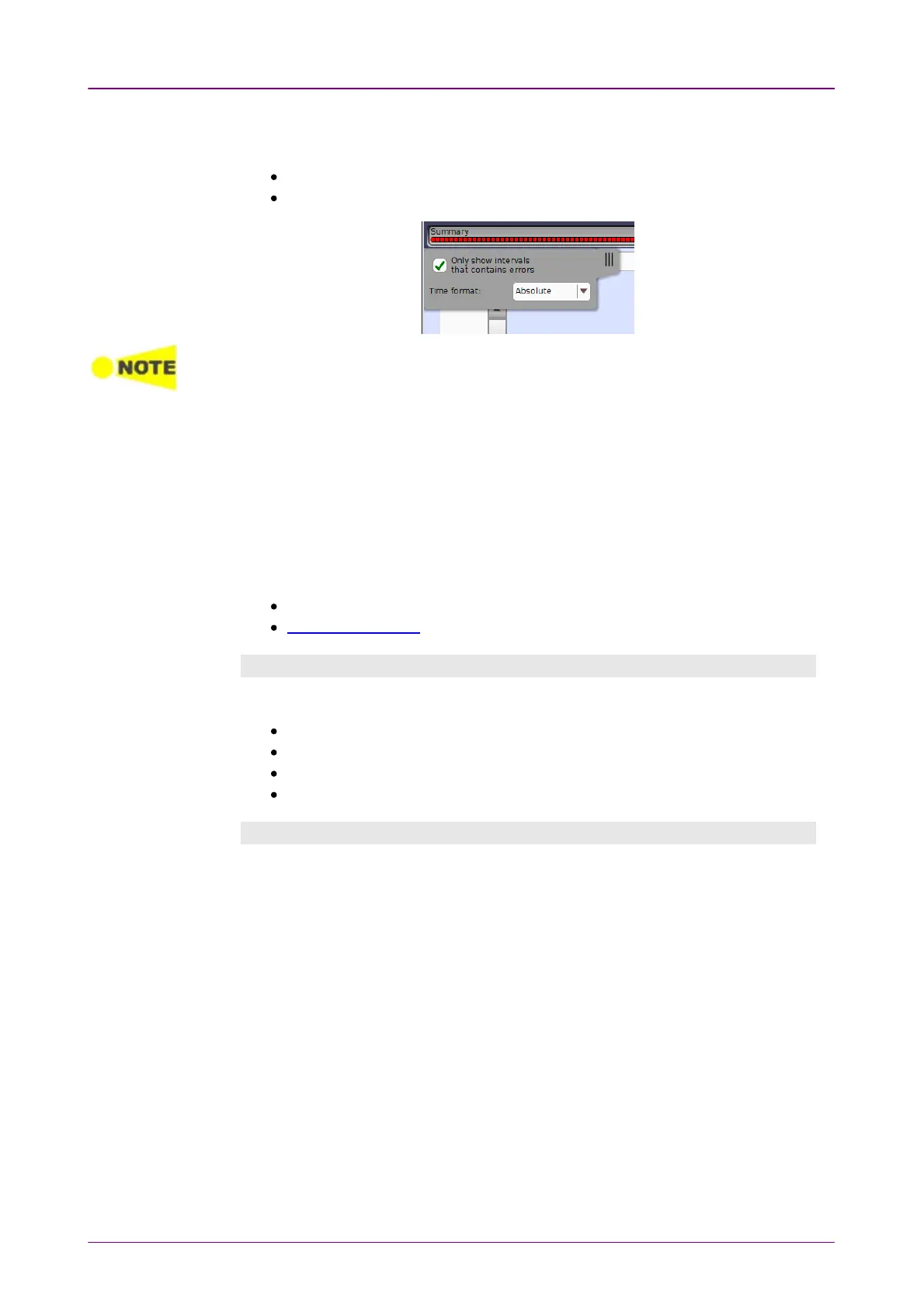

The slide-out panel on the left-hand side of the screen contains the following
functions:
Only show intervals that contains errors
Time format
If you have stopped measurement during the interval time, the measurement results of
the current interval are discarded. The log of the current interval is not displayed in BackBack
field.
In this case, result data are re-calculated excluding the data of the current interval
when the measurement is stopped. This causes that "Count" and "Ratio" displayed
after the measurement will be different from that of during measurement.
The sum of interval time (multiplied interval time by the number of back logs) may
not match the differential time between displayed time at left top and right top after
the measurement.
Open the drop-down menu in the top row plus the drop-down menu below it to
select which results you want to display on the screen.
OTN - Alarms/ErrorsOTN - Alarms/Errors
OTN - OTN - PerformancePerformance
Selecting how results are displayedSelecting how results are displayed
Select the required notation for the results from the notation drop-down menu.
UnformattedUnformatted e.g. 71892
SI prefixSI prefix e.g. 71.892 k (k means "kilo")
EngineeringEngineering e.g. 71.892E3
ScientificScientific e.g. 7.1892E4
ResultsResults
OTN - Alarms/Errors OTU/ODU OTU alarms
OTU errors
ODU alarms
ODU errors
Stage1 ODU ODU alarms
ODU errors
Stage2 ODU ODU alarms
ODU errors
Stage3 ODU ODU alarms
ODU errors
Client Client alarms
Client errors
ODU TCM ODU TCMi alarms
ODU TCMi errors
Justification
GFP
