Selecting type ofSelecting type of
resultsresults
Studying a specificStudying a specific
resultresult

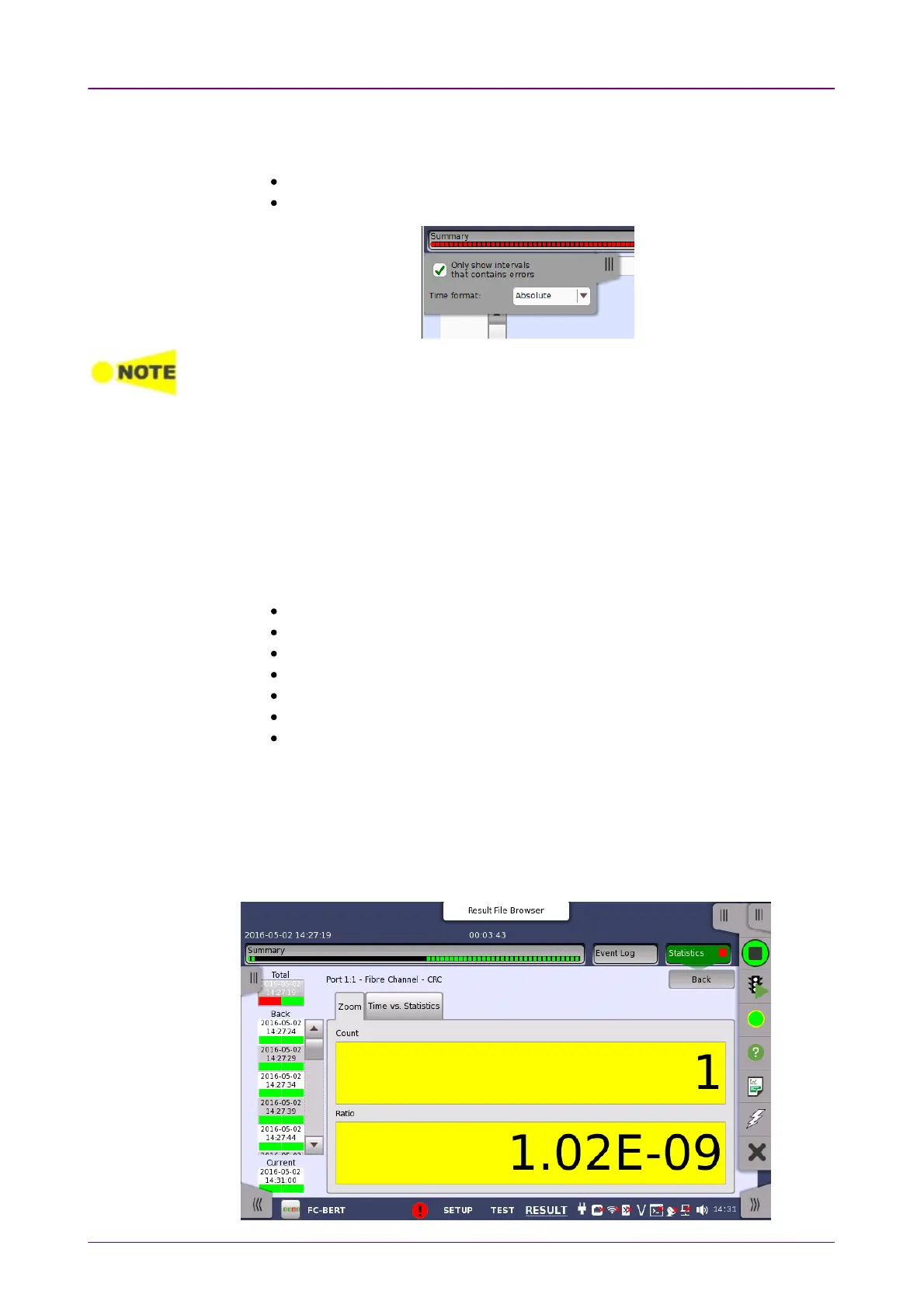

The slide-out panel on the left-hand side of the screen contains the following
functions:
Only show intervals that contains errors
Time format
If you have stopped measurement during the interval time, the measurement results of
the current interval are discarded. The log of the current interval is not displayed in BackBack
field.
In this case, result data are re-calculated excluding the data of the current interval
when the measurement is stopped. This causes that "Count" and "Ratio" displayed
after the measurement will be different from that of during measurement.
The sum of interval time (multiplied interval time by the number of back logs) may
not match the differential time between displayed time at left top and right top after
the measurement.
Open the left drop-down menu in the top row of buttons to select which results
you want to display on the screen.
OTN - Alarms/ErrorsOTN - Alarms/Errors
OTN - PerformanceOTN - Performance
BERTBERT or ReflectorReflector (Depends on application)
LinkLink
FrameFrame
PerformancePerformance
Size DistributionSize Distribution
OTN options appear if the FC signal is carried by OTN.
Touch a specific cell in a result table to zoom in on the corresponding result
item. The CountCount and RatioRatio fields are displayed on a ZoomZoom tab page. A Time vs.Time vs.
StatisticsStatistics tab page is also available. Use the BackBack button or touch the zoom
filed to return to the statistics screen.
