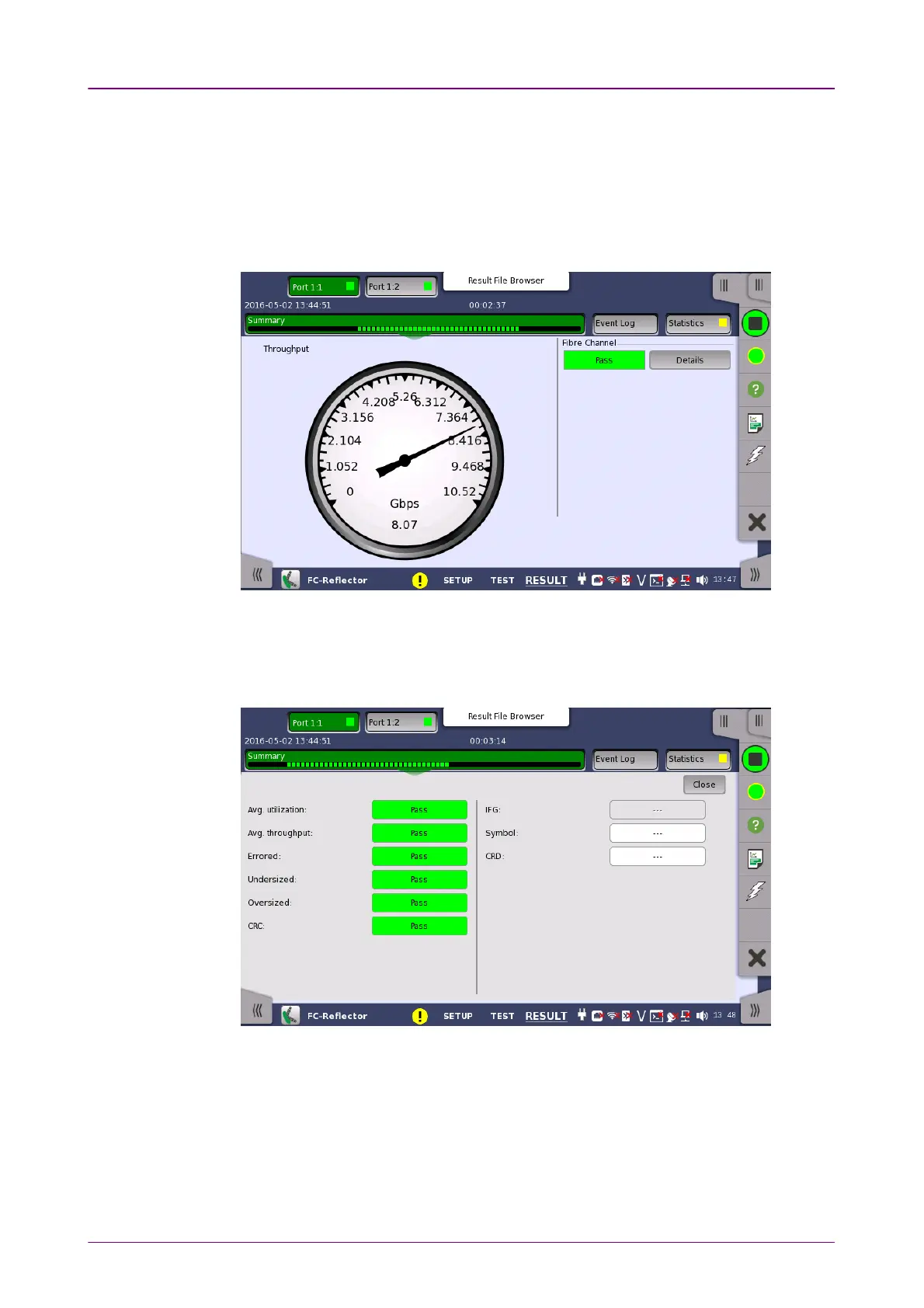

This screen contains a summary of the results of the FC Reflector test. The
information includes such things as number of errored frames and number of
exceeded thresholds.
The three dials showing Utilization, Errored frames and Throughput results.
Utilization, Errored frames and Throughput can be enlarged by touching on
them. The black needle points the measured value in the latest period.
When Fibre ChannelFibre Channel is selected on 'Threshold' of the Test Setup screen, the
Fibre ChannelFibre Channel information appears in the upper right-hand corner, shows
pass/fail status summary. Touching the DetailsDetails button allows you to inspect the
individual pass/fail status.
TransportTransport
Displays the results of Transport test. This result appears if 'Transport' check
box is selected in the Test Setup screen.
99..44..33..22 Event LogEvent Log
