Chapter 7 Maintaining the Instrument
7-42 Applied Biosystems 7900HT Fast Real-Time PCR System and SDS Enterprise Database User Guide
5. Click Manual Control to display the Manual Control dialog box
Aligning
Input Stack 1
(Zymark
Position 4)
The alignment of input stack 1 (position 4 in the Zymark Twister Software) is the
first step in the alignment procedure. This alignment provides the basis for aligning
all subsequent stacks on the Plate Handler.
1. Place an empty plate into input stack 1(Zymark position 4).
2. In the Zymark Twister Software, click position 4.
The Plate Handler arm moves over the input stack.
3. Using the Vertical Positioning commands, lower the Plate Handler arm until it
is just above the stack.
The Vertical Positioning box offers four ways to move the Plate Handler arm:
• Move the slider for large increments.
• Click inside the slider bar to move the arm in 250 step increments.
• Click the lower arrow on the bar to move the arm in 50 step increments.
• Click the up or down arrows in the Ve r t i c a l A d j u s t m e n t text box to move
the arm in 1-step increments.
• Click the Ve r t i c a l A d j u s t m e n t text box, enter a value, and press Enter to
move the arm into a specific location.
4. Check the rotary position of the Plate Handler arm to confirm that the gripper:
• is centered over the stack
• will not contact the sides of the stack when lowered

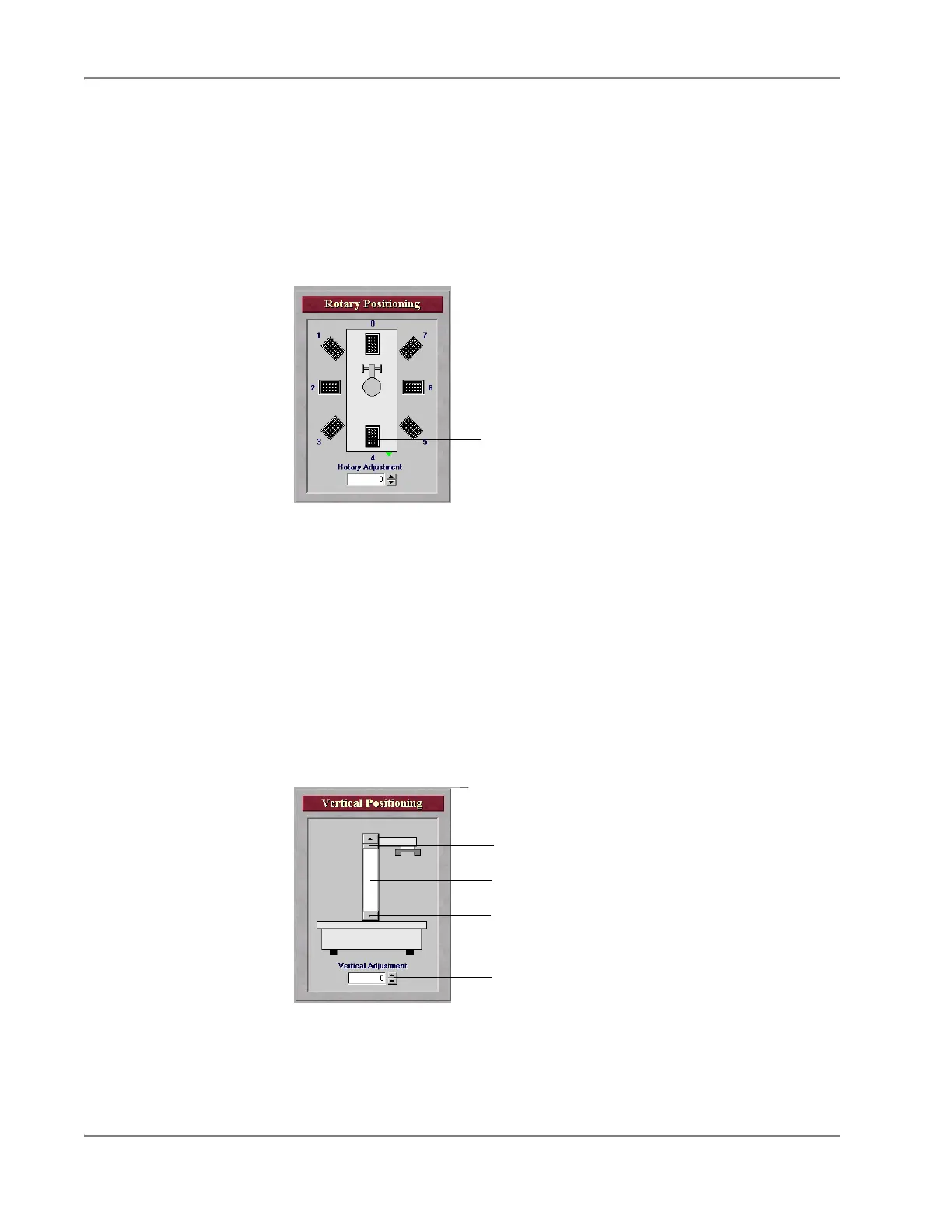

Click
Slider
Slider bar (250 steps per click)
Down arrow (50 steps per click)
Text box arrows (1 step per click)
