Chapter 1 Product Overview
1-10 Applied Biosystems 7900HT Fast Real-Time PCR System and SDS Enterprise Database User Guide
Instrument Connections
Electrical
Connections
Figure 1-8 and Table 1-2 illustrate the electrical connections of the Applied
Biosystems 7900HT Fast Real-Time PCR System components.

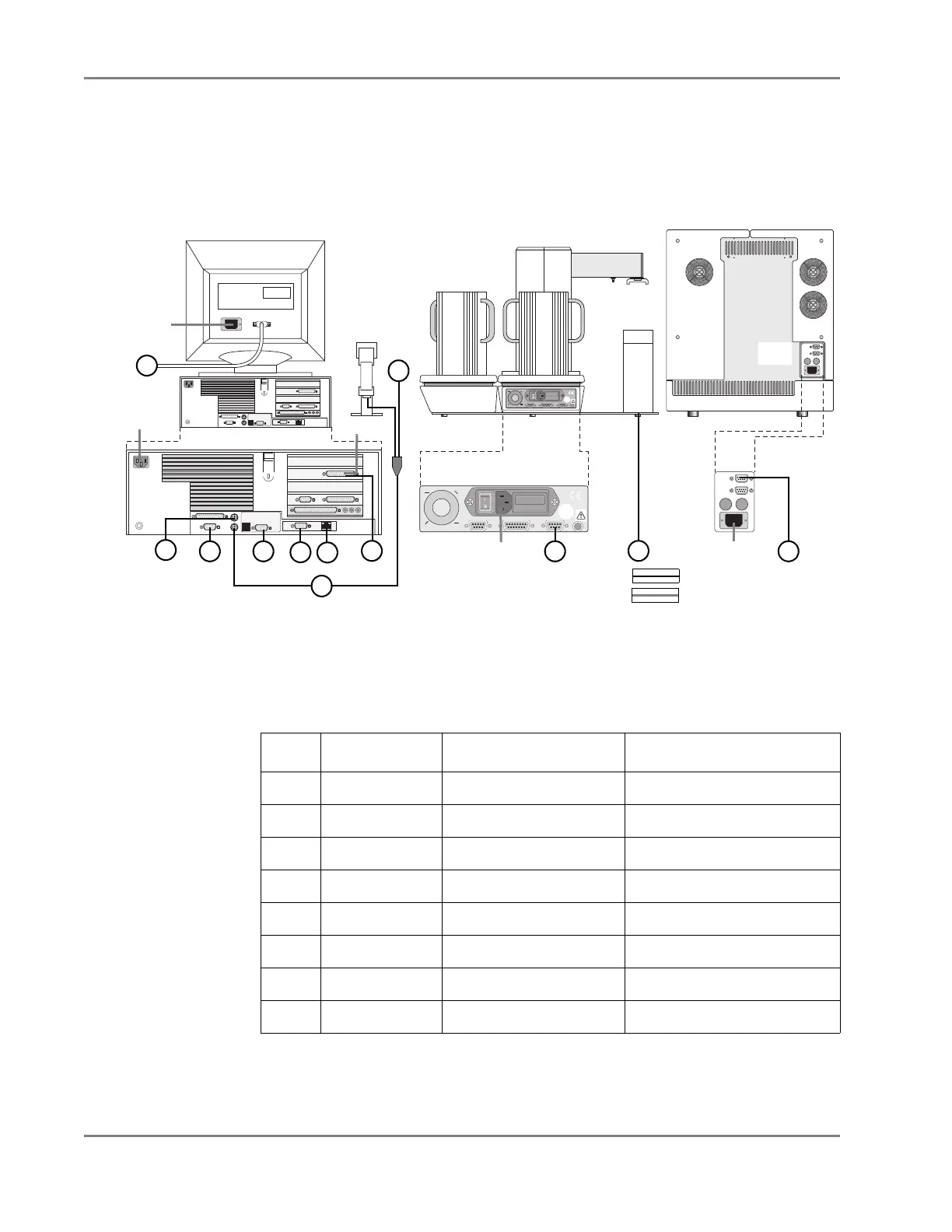

Figure 1-8 Connections of the Applied Biosystems 7900HT Fast Real-Time PCR
System
HI-POT
AB CD
HI-POT
AB CD
GR2020
Communications Cable
C
Power
Power
Power
Power
Power
D
B
A
E
G
H
Power Cable
A
G
E
C
F
Table 1-2 Connections of the Applied Biosystems 7900HT Fast Real-Time PCR
System
Cable Type Connects… To…
A Communication Computer (Monitor Port) Monitor
B Comm/Power Computer (Mouse Port) Mouse (not shown)
C Serial Computer (Serial Port 1) 7900HT Instrument
D Comm/Power Computer (Keyboard Port) Hand-held Bar Code Reader
E Communication Computer (Serial Port 2) Plate Handler (Port C)
F Ethernet Network Computer (Ethernet Port)
G
*
*See Figure 1-9 on page 1-11.
Comm/Power Computer (ISA Card 1) Fixed-Position Bar Code Reader
H Comm/Power Bar Code Reader Cable Keyboard (not shown)
