Instrument Connections
Applied Biosystems 7900HT Fast Real-Time PCR System and SDS Enterprise Database User Guide 1-11
Fixed-Position
Bar Code Reader

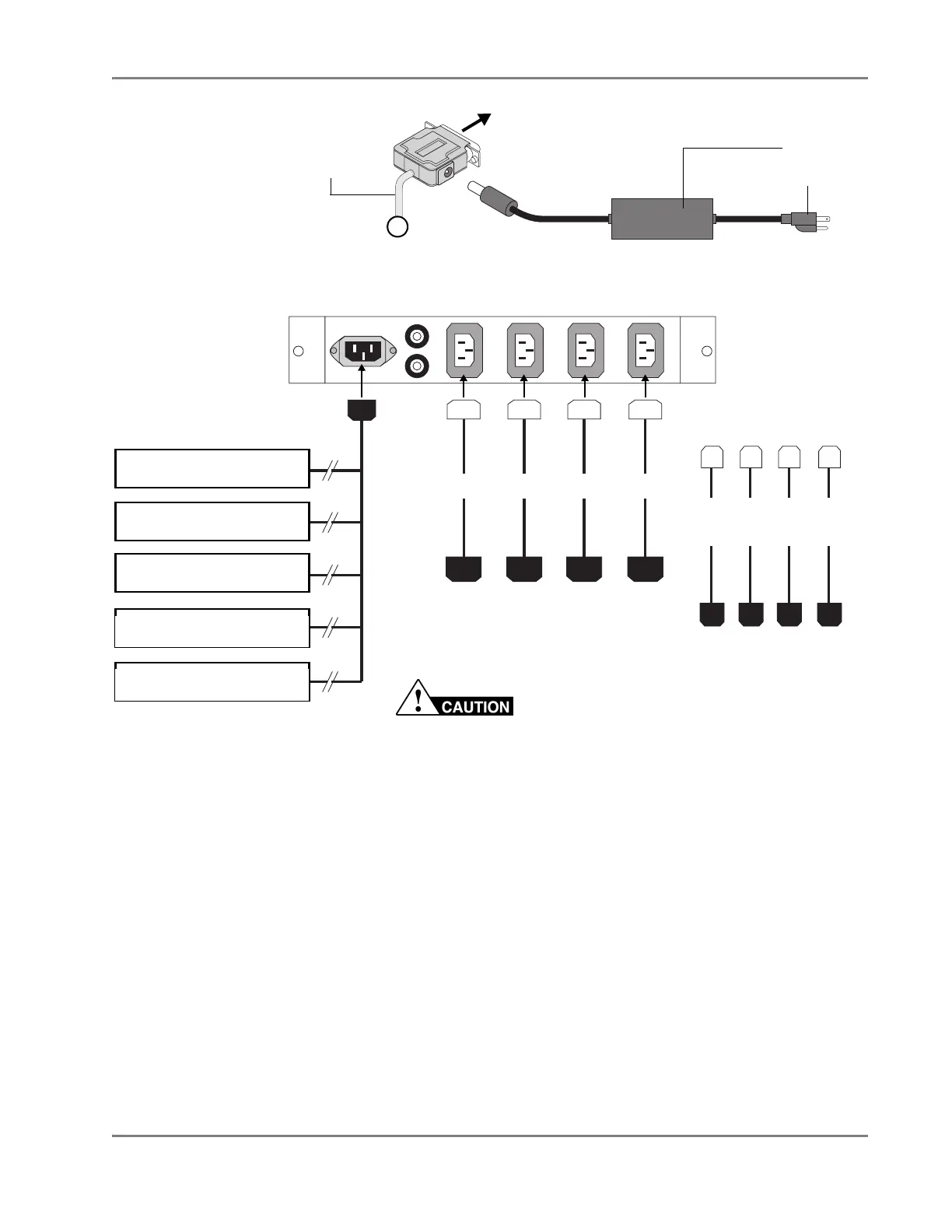

Figure 1-9 Fixed-Position Bar Code Reader Connection
Figure 1-10 Universal Power Strip
To install the Universal Voltage Accessory Kit (All Countries Except Japan):
1. Connect one universal jumper to each accessory (see below for use in Japan).
2. Connect the other end of the power jumpers to the power strip outputs.
3. Choose the correct country specific power input cord for the geographical region
and connect it to the power strip input.
4. Power off all instrument accessories (monitor, computer, and Plate Handler).
5. Connect the power-input cord to the AC outlet.
6. Power on accessories.
7. Discard unused cord sets.
Usage Guidelines for Japan
1. Use only the cord sets supplied in the bag marked “JAPAN ONLY.
2. Discard all other unused cord sets.
Power
Power supply
G
To Lava Card
(ISA Card 1)
Bar Code
Reader Cable
IEC 320 4-Position
Universal Power Strip
(PN 4333969)
North America: 250V@15A MAX
Europe and all other locations: 250V@10A MAX
To computer, monitor, hand-held bar
code reader, and the Plate Handler
Note: The order is not critical.
Universal Voltage
Accessory Kit
(P/N 4334482)
Universal Jumper Cord set × (4)
Jumper Cord set for Japan
×
(4)
(see below for use in Japan)
IEC 320 North America × (1)
IEC 320 Continental
IEC 320 U.K./Ireland × (1)
IEC 320 Australia/
New Zealand × (1)
IEC 320 Japan × (1)
In Bag Marked “JAPAN ONLY”
