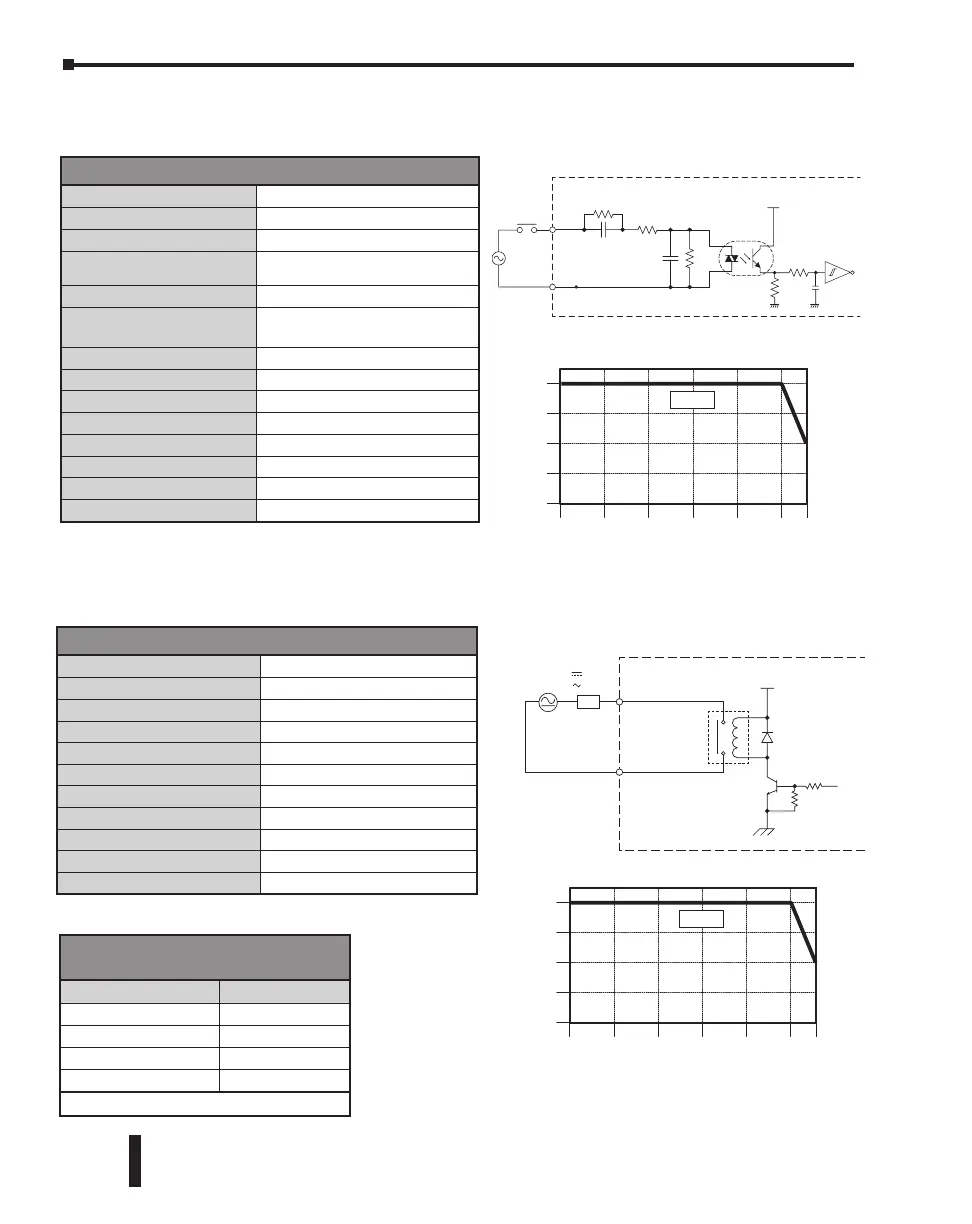

AutomationDirect CLICK Series User Manual

Discrete I/O Specifications - Outputs
Outputs per Module
4
Operating Voltage Range
6–27 VDC, 6–240 VAC
Output Type
Relay, form A (SPST)
AC Frequency
47–63 Hz
Maximum Current
1A/point (resistive)
Minimum Load Current
5mA @ 5VDC
Maximum Inrush Current
3A for 10ms
OFF to ON Response
< 15ms
ON to OFF Response
< 15ms
Status Indicators
Logic Side (4 points, red LED)
Commons per Module
1 (4 points/common)
0
Ambient Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55
°C
131
°F
1
2
3
4
Points
C0-12ARE-2-D Temperature Derating Chart
0
Outputs
Y1 - Y4
INPUT
X1-X4
3.3 V
COM
100-120 VAC
Internal Module Circuitry
Equivalent Discrete Input Circuit
C1
0
Ambient Air Te mperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
1
2
3
4
Points
C0-12ARE-2-D Temperature Derating Chart
0
Inputs
Discrete I/O Specifications - Inputs
Inputs per Module
4
Operating Voltage Range
100–120 VAC
AC Frequency
47–63 Hz
Input Current
Typ 8.5 mA @ 100VAC at 50Hz
Typ 10mA @ 100VAC at 60Hz
Maximum Input Current
16mA @ 144VAC
Input Impedance
15kq @ 50Hz
12kq @ 60Hz
ON Voltage Level
> 60VAC
OFF Voltage Level
< 20VAC
Minimum ON Current
5mA
Maximum OFF Current
2mA
OFF to ON Response
< 40ms
ON to OFF Response
< 40ms
Status Indicators
Logic Side (4 points, green LED)
Commons
1 (4 points/common)
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type Relay Life
30VDC, 1A Resistive 300,000 cycles
30VDC, 1A Solenoid 50,000 cycles
120VAC, 1A Resistive 500,000 cycles
120VAC, 1A Solenoid 200,000 cycles
ON to OFF = 1 cycle
X1 - X4
OUTPUT
Y1-Y4
24V
COM
C2
6-27 VDC
L
Internal Module Circuitry
Equivalent Discrete Output Circuit
6-240 VAC
C0-12ARE-2-D (continued)
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–110
Chapter 2: Specifications
