Case 1: Connect Com Port 1 or 2 to a PC.
You can connect Com Port 1 or 2 to a serial com port or USB port on the PC.

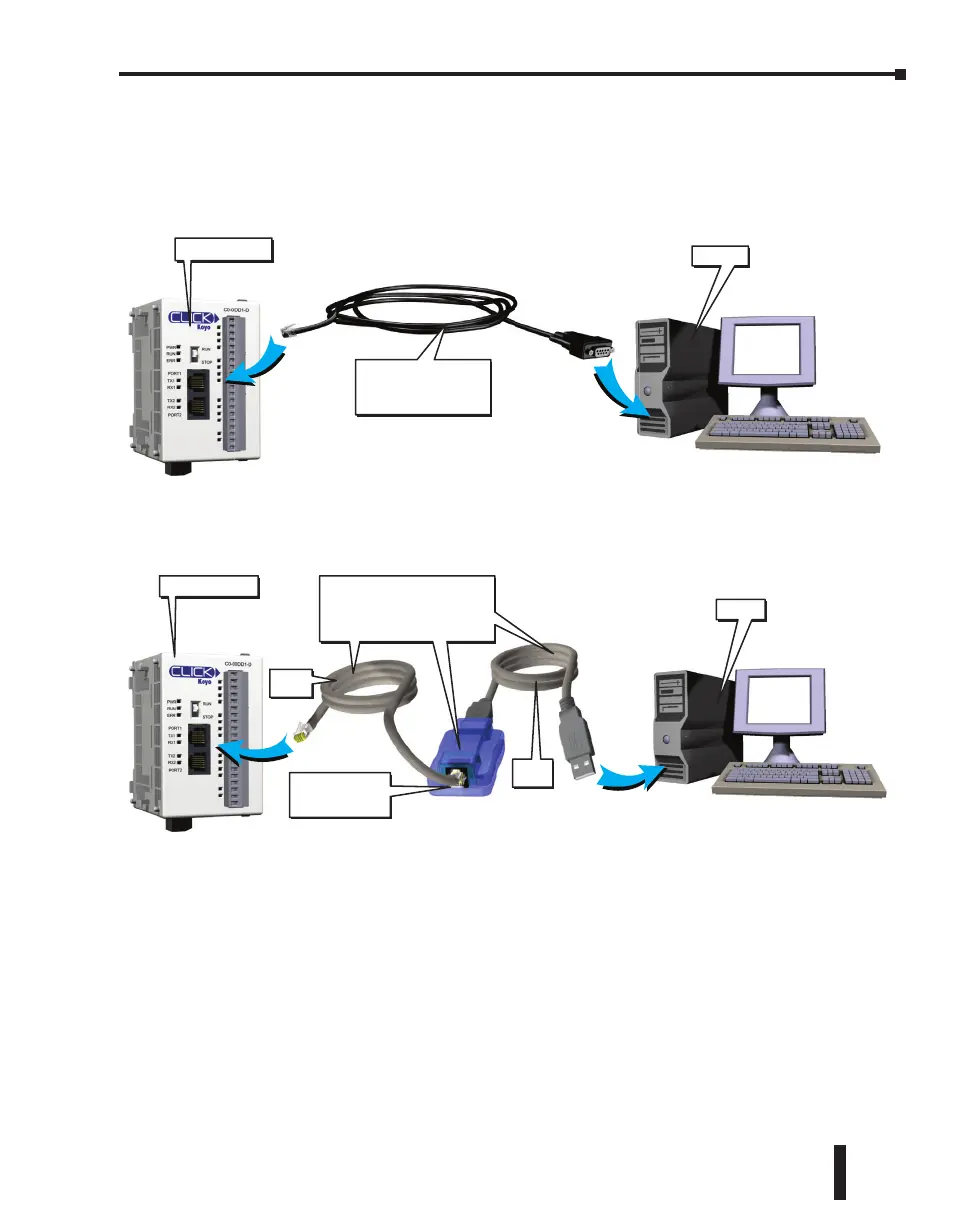

1. Connect to a serial port
2. Connect to a USB port
CLICK PLC
PC
PC Serial
Programming Cable
D2-DSCBL
PC
Serial
Cable
CLICK PLC
USB
Cable
USB to RS232
Converter
PC to Panel Programming
Cable Assembly
(Includes serial & USB cables)
EA-MG-PGM-CBL
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4–13
Chapter 4: PLC Communications
