Case 4: Connect Com Port 1 or 2 to an RS-232 port on another device

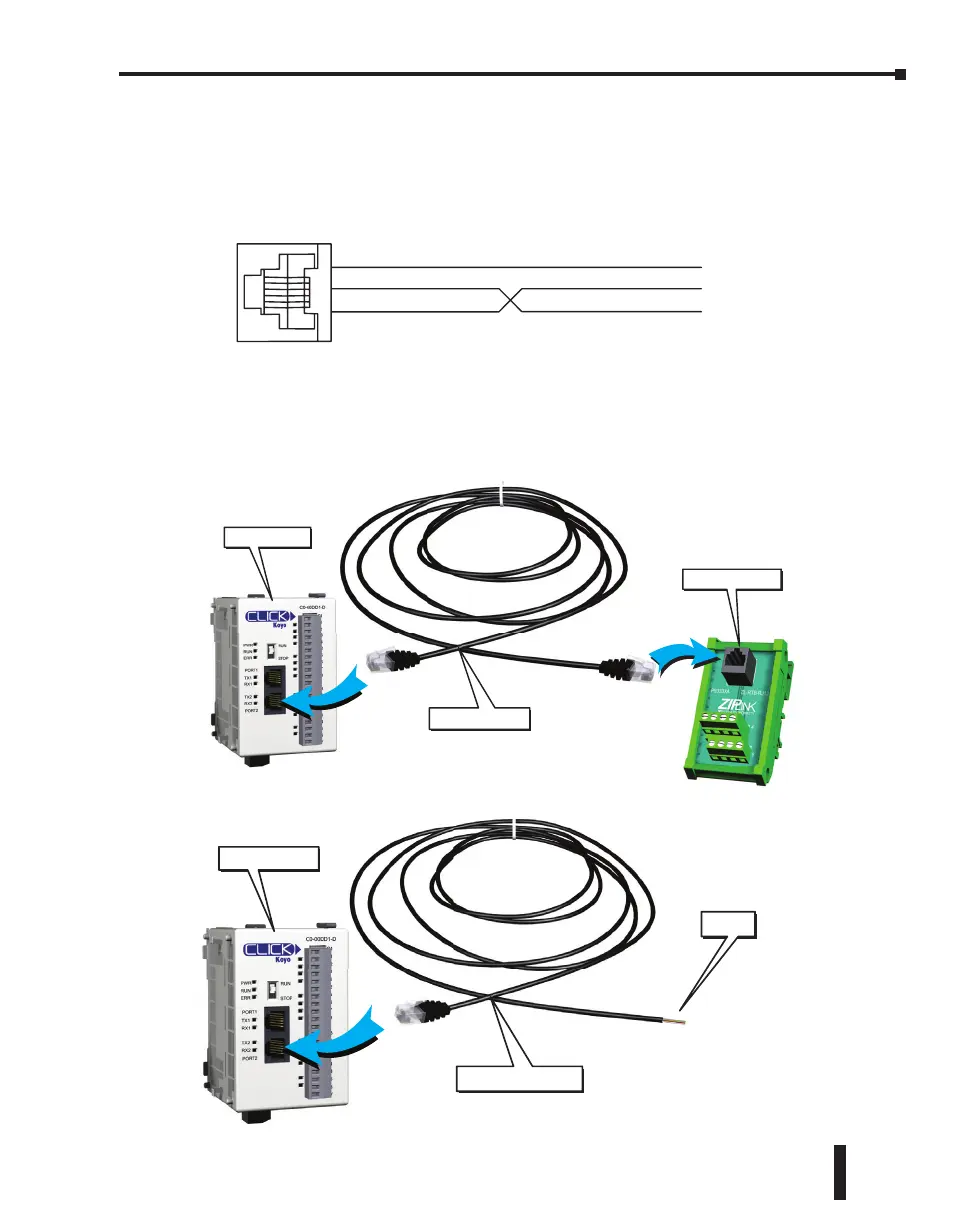

You need to cross the RTD and TXD signal lines and connect 0V on both com ports.
You can make your own cable. However, we offer two products that make your wiring much
easier:
1. ZIPLink feed-through module and cable
1 0V
0V
TXD
RXD
3 RXD
4 TXD
CLICK Com
Port 1 or 2
RS-232 Port on
Another Device
CLICK PLC
ZL-RTB-RJ12
ZL-RJ12-CBL-2
CLICK PLC
Pigtail
ZL-RJ12-CBL-2P
2. ZIPLink pig-tail cable
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4–15
Chapter 4: PLC Communications
