12-34 BE1-951 Installation 9328900990 Rev L

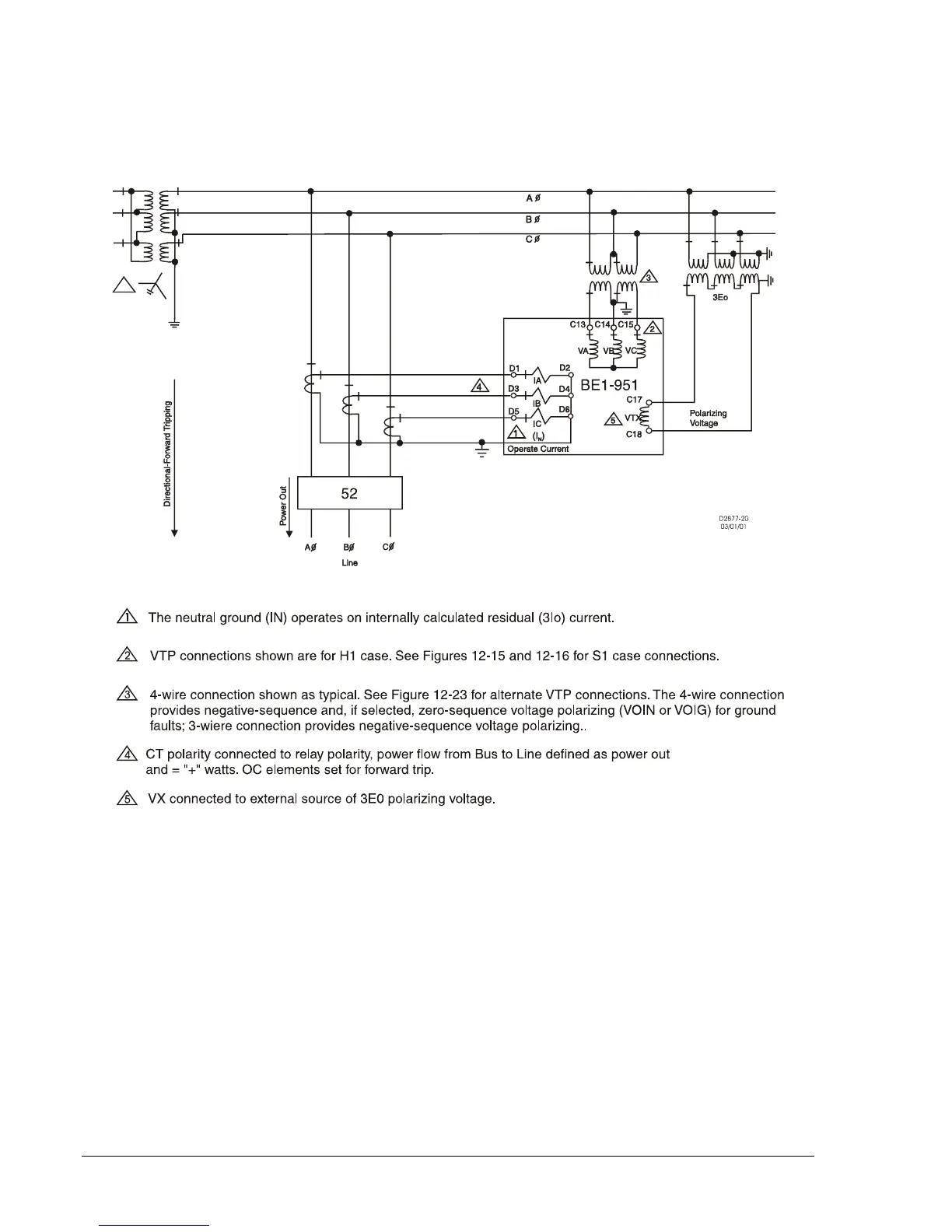

Figure 12-35. Directional Ground OC Protection Using External Source of Zero-Sequence Polarizing
Voltage (VX) Compared to Calculated Residual (3IO) (IN)
