14-6
BE1-951 BESTCOMS Software
9328900990 Rev L

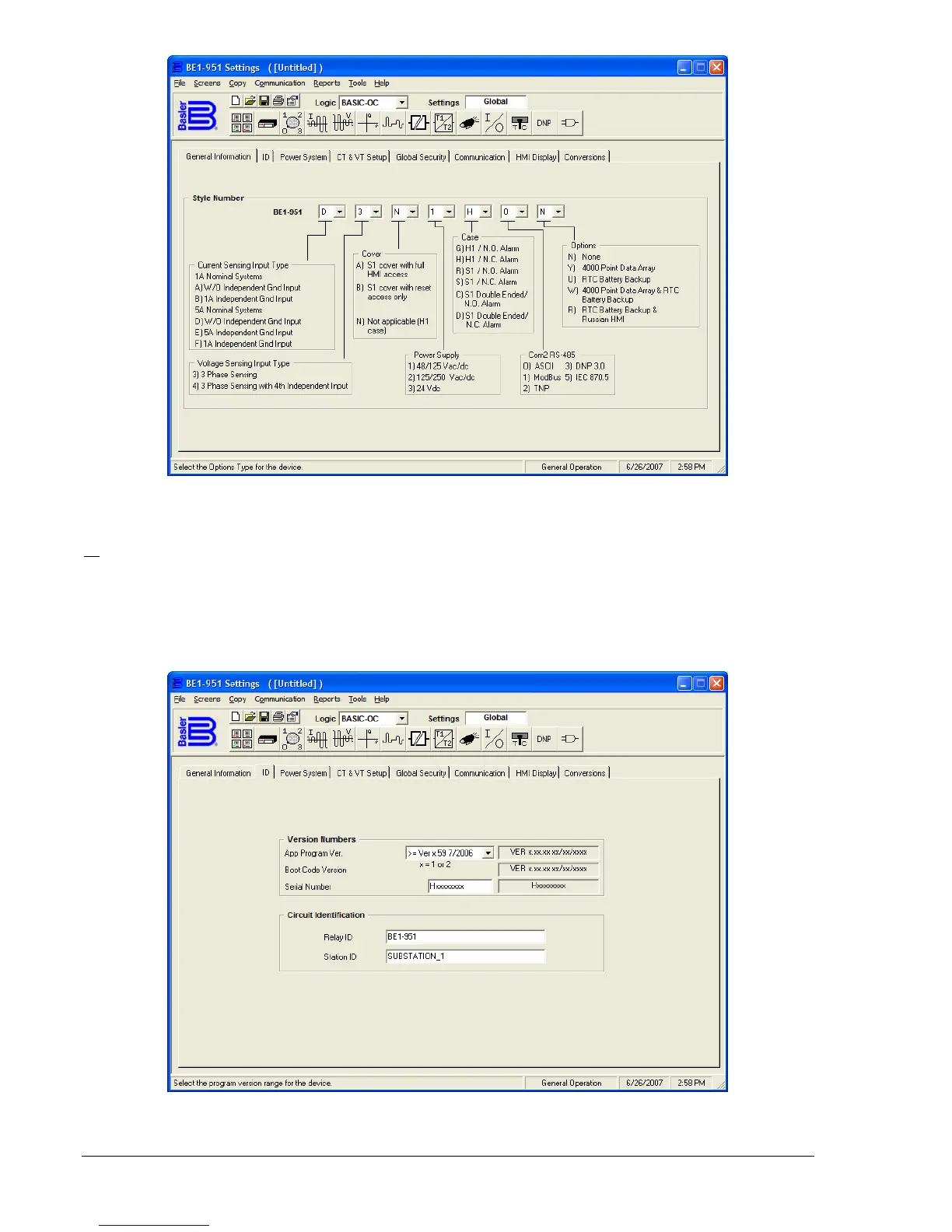

Figure 14-5. General Operation Sc
reen, General Information Tab
ID
This tab (
Figure 14-6) displays the version
numbers of t
he application program and b
oot code. The
serial
number of the BE1-951 relay also displa
yed.
Additionally, you may enter the name of the substation
and/or relay so that the relay re
ports have some
form of installation-specific identification.
Figure 14-6. General Operation Screen, ID Tab
