9328900990 Rev L BE1-951 BESTCOMS Software 14-9

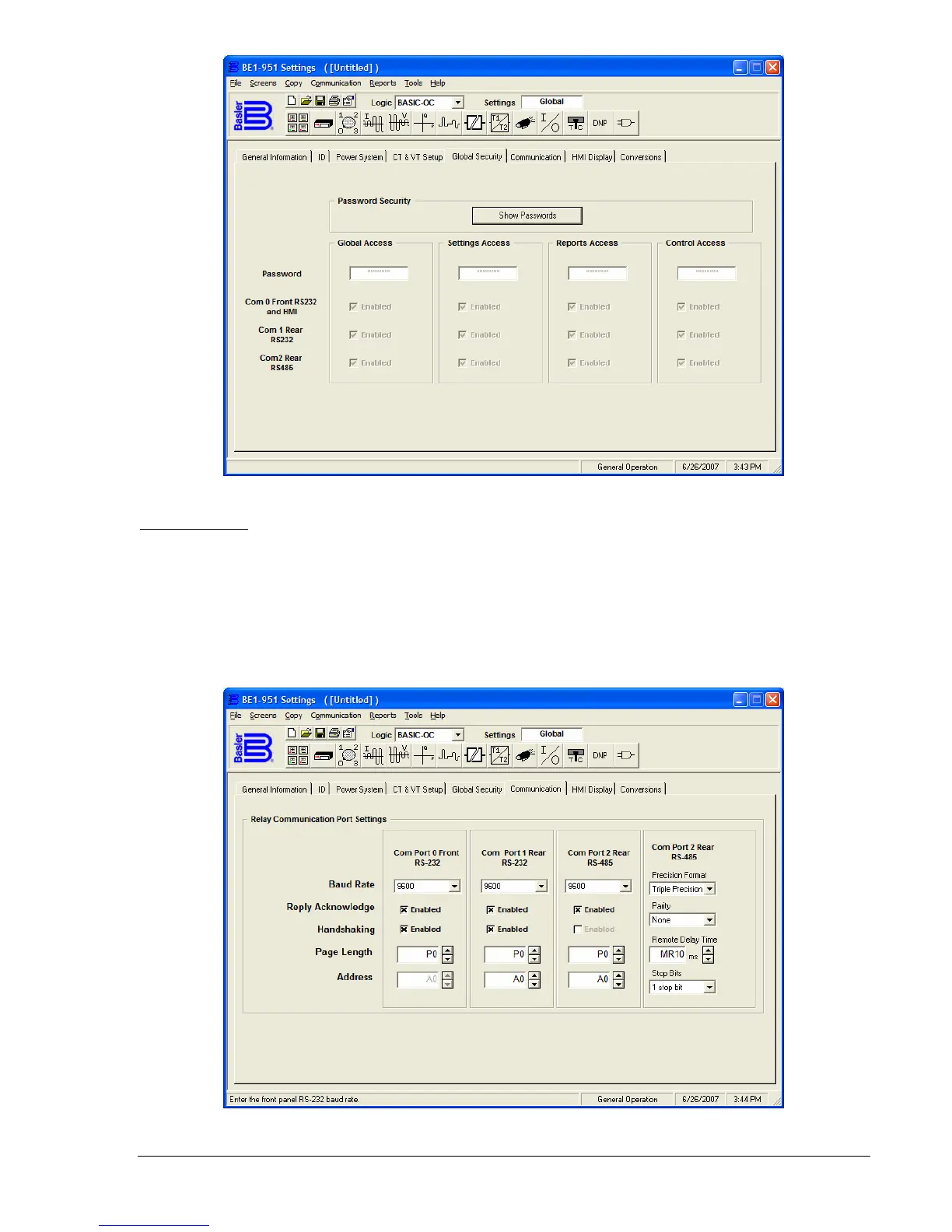

Figure 14-9. General Operation Screen, Global Security Tab
Communication
This tab,
Figure 14-10, allows the user to set or change communication port settings. Baud Rate has the
pull-down menu. Reply and Handshaking are either enabled or disabled, and Page Length can be
stepped up or down one page at a time using the up or down arrow button. Address can be stepped up or
down to change the address except for Com Port 0 Front. This address is always A0 and cannot be
changed. If the relay has Modbus™, an additional panel appears on the General Operation,
Communication Screen. This panel allows the user to select the Precision Format, Parity, Remote Delay
Time, and Stop Bits. For more information on these parameters, see the appropriate Modbus™ instruction
manual.
Figure 14-10. General Operation Screen, Communication Tab
