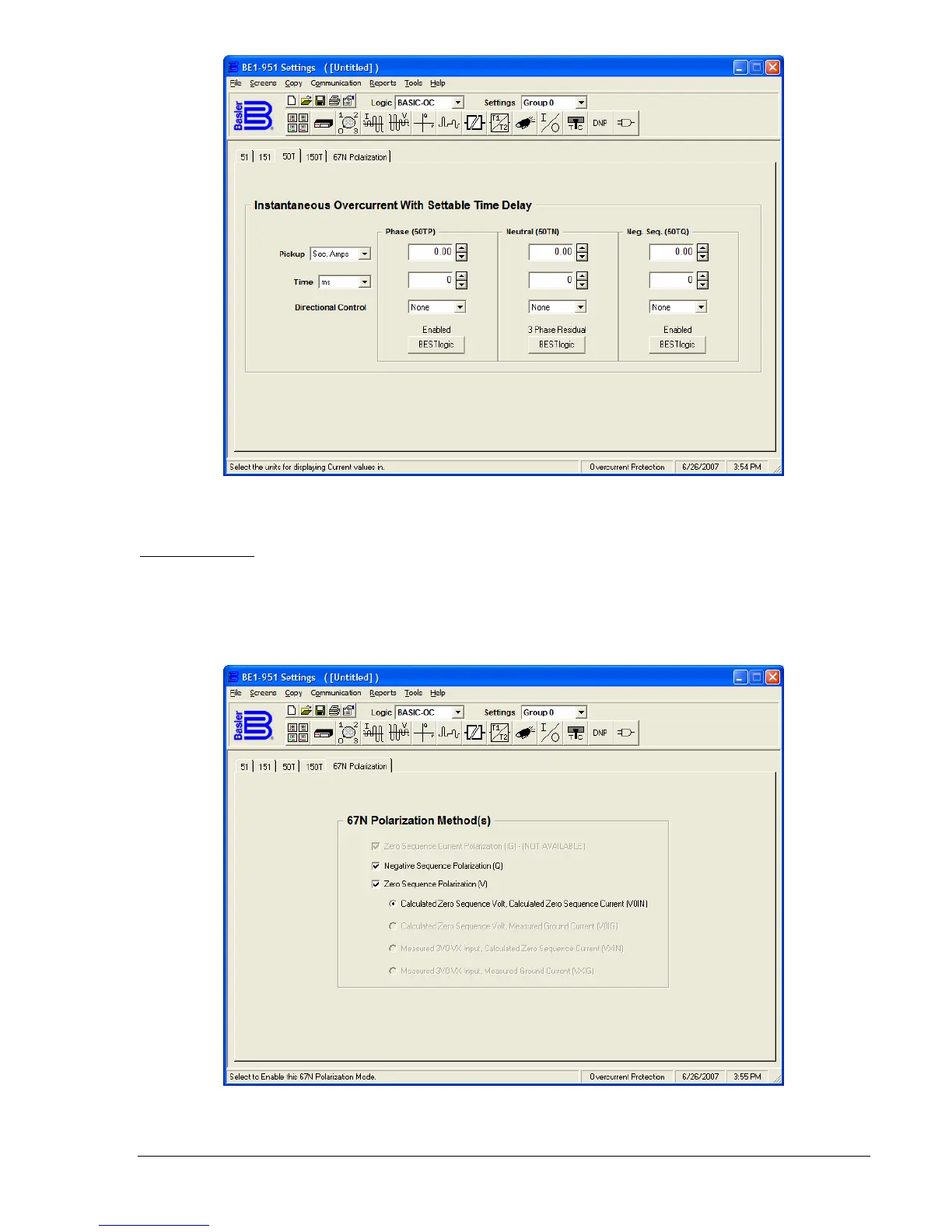

Figure 14-15. Overcurrent Protection Screen, 50T Tab
67N Polarization
The 67N Polarization element can be set for three types of polarization modes: negative-sequence (Q),
zero-sequence voltage (V), and zero-sequence current (I). At least one of the three modes must be
selected. See
Figure 14-16. The following 67N quantities can be selected: V0IN, VXIG, VXIN, or V01G.
Only one of these four may be selected.
Figure 14-16. Overcurrent Screen, 67N Polarization Tab
