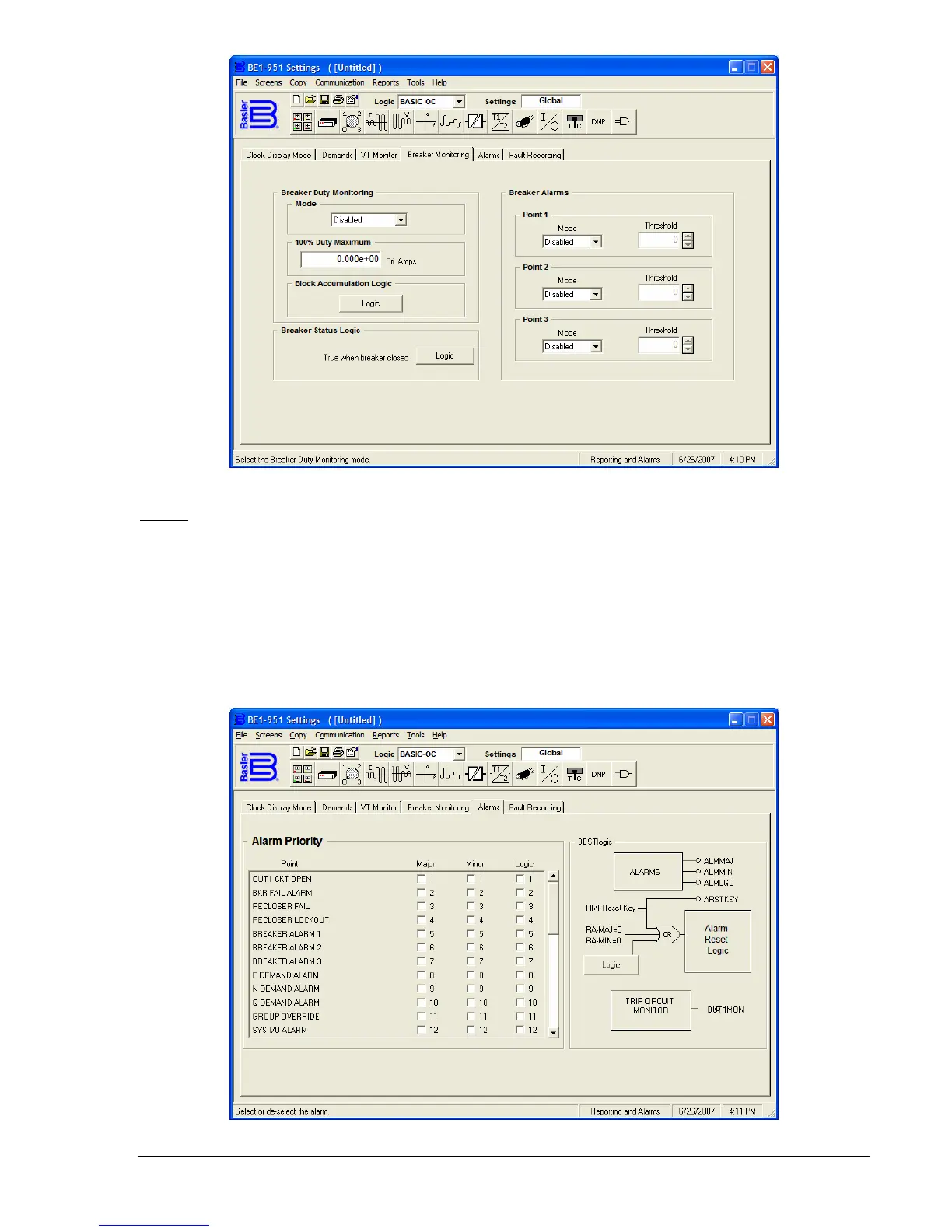

Figure 14-33. Reporting and Alarms Screen, Breaker Monitoring Tab
Alarms
BE1-951 relays have 31 programmable alarm points (
Figure 14-34). These points are for the monitored
power system, associated equipment, and non-core circuits and functions in the relay. Each of these
alarm points can be programmed to assert the Major, Minor, or Logic Alarms when an alarm point is
activated. To program an alarm point, find the point in the Alarm Priority list, use the scroll bar as needed,
and then click on the appropriate field under the Major, Minor, or Logic Alarm.
Logic settings for the Alarm Reset Logic can be made by clicking on the Logic button and then clicking on
the Reset input. Other logic blocks shown under BESTlogic on the Alarms tab are shown for reference
only. There is no interaction available.
Figure 14-34. Reporting and Alarms Screen, Alarms Tab
