BCS Line - Tripwire

131
Click to delete the selected rule.

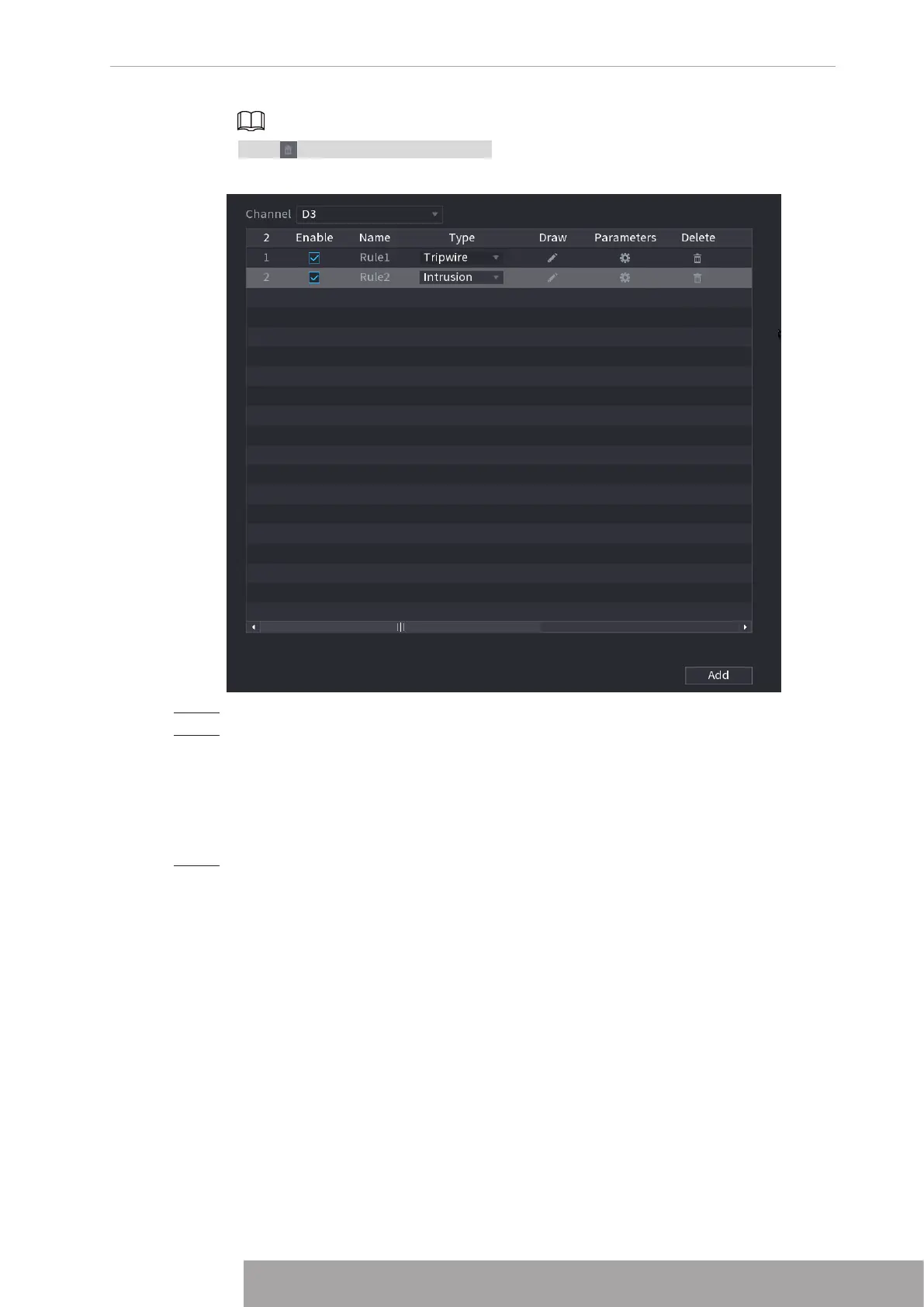

Figure 4-141
Step 3 Set corresponding parameters.
Step 4 Click
Apply
.
1.7.2.4.1 Tripwire
When the detection target crosses the warning line along the set direction, the system performs
an alarm linkage action.
Step 1 Select
Main Menu
>
AI
>
Parameters
>
IVS
.
In the
Type
drop-down list, select
Tripwire
. See Figure 4-142.
Copyright © NSS Sp. z o.o.
131 User‘s Manual
