BST ekrPro Com60 - BST Prologic; Fvgpro Module

Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 6/73

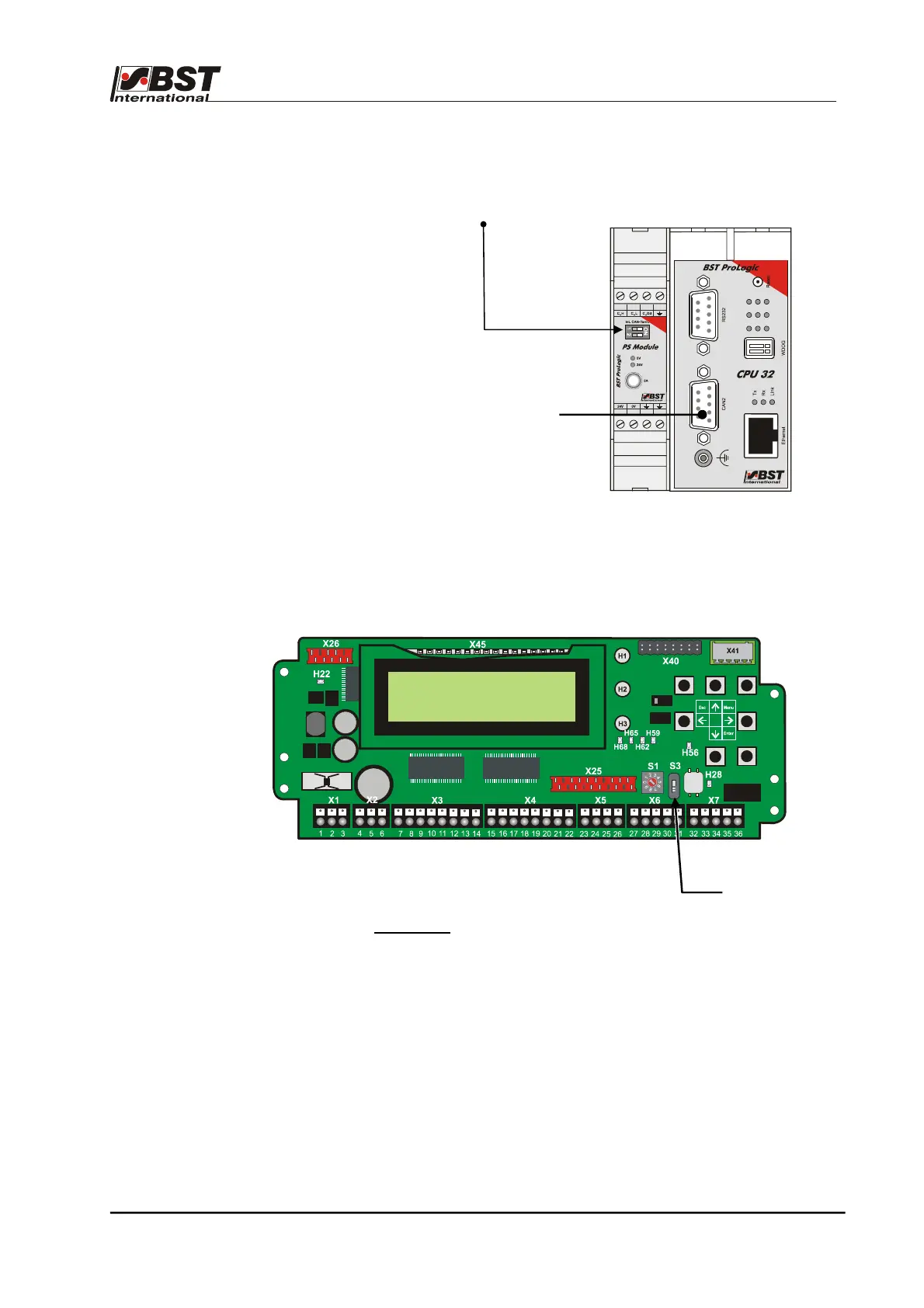

B 3.3.2.3 BST ProLogic
(if fitted)
In the BST ProLogic activation takes place using the DIP switch
segment 1 (S1 = ON) for the CAN 1.
B 3.3.2.4 FVGPro Module
(if fitted)
In the FVGPro Module activation is carried out via switch S3 on the
processor circuit board. Set the switch to "ON“.
Procedure:
1. Switch-off the power to the module.
2. Open module’s front cover.
3. Activate terminator S3 (switch position ON)
4. Close the module’s front cover.
5. Restore the power.
Switch S3
CAN 2
