Controls B 2
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 2
with analog sensors Date: 23.11.2007 Page: 1/6

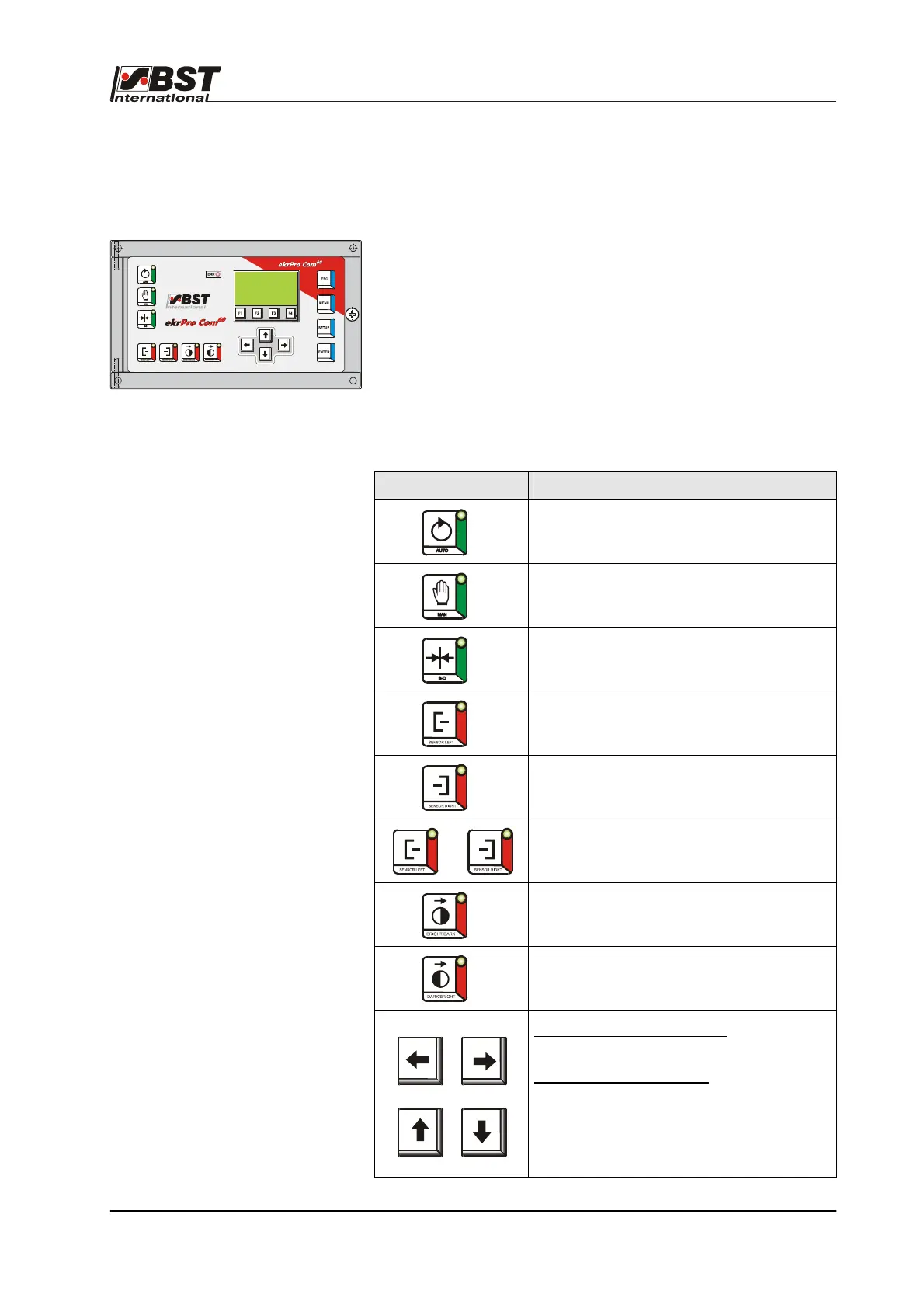

B 2 Display and operating controls
B 2.1 Control panel
Graphics display
A contrast-rich LCD display with LED background illumination.
Display has 6 lines, each of 28 characters.
The graphics display is used for displaying the operating hours,
parameters and the set-up menus.
Keypad
The controller can be configured for operation using this keypad.
Key Function
Automatic guiding
Manual positioning
Centring the guiding device (servo-center)
Left web edge guide
Right web edge guide
Web center guiding
Edge / contrast control:
Contrast transition: light / dark
Edge / contrast control:
Contrast transition: dark / light
’Automatic’ operating mode:
• Moves the setting to the left/right
’Manual’ operating mode:
• Manual left/right positioning of the
guiding device
• Change between the operating status
displays
+
