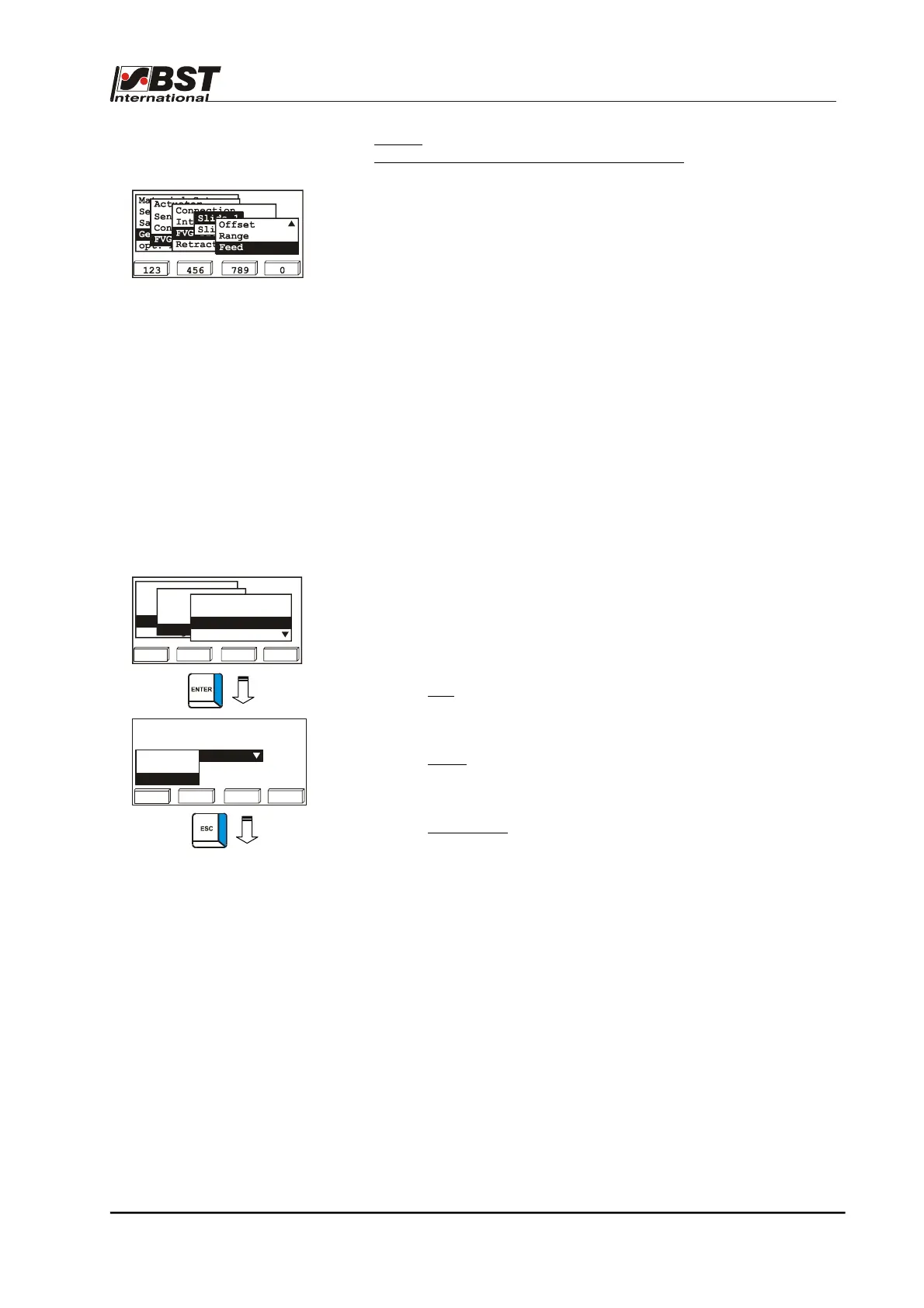

Feed –
Feed for stepping motor/gearing combination
This setting is treated as the feed per motor revolution for the
stepping motor / gearing combination.
The manufacturer has entered this default setting and you are only
permitted to modify it (if necessary) after having obtained the
manufacturer’s agreement.
The relevant procedure then has to be agreed.
All warranty claims will be invalidated in any other case.
In addition to the specific settings which depend on the FVG used,
you should also carry out general settings for the FVG application in
the menu.
B 3.7.5.5.5 - Retract Mode – free-running mode
The retract mode determines when the FVG will traverse into the
park position (home position) after a specific operating mode
change.
1. Select Retract Mode from the sub-directory and then press
ENTER to open the selection menu.
2. The following retract modes are available in the selection
menu:
• SC: The sensor positioning device will traverse into
the park position after switching over to the
SC mode
• Man.: The sensor positioning device will traverse into
the park position after switching over to the
MAN mode
• SC & Man.: The sensor positioning device will traverse into
the park position after switching over to the
SC or MAN mode.
3. Press the ESC button to exit the inputting menu after you
have made the selection.
B 3.7.5.5.6 - Norming Mode – Standardization Mode
The method for standardizing the FVG sensor can be selected in
Norming mode.
The sensor will be automatically adjusted to the material
characteristics during norming.
This will occur immediately if norming is active and the controller is
switched over to AUTO mode.
Select a full retract mode
SC
Man.
SC & Man.
