Operation C 2
ekrPro Com
60
web guide controller EDV-No.: MD.191.01.05/1.6.x Chapter: C 2
with analog sensors Date: 23.11.2007 Page: 2/19
(only with connected sensor positioning device)

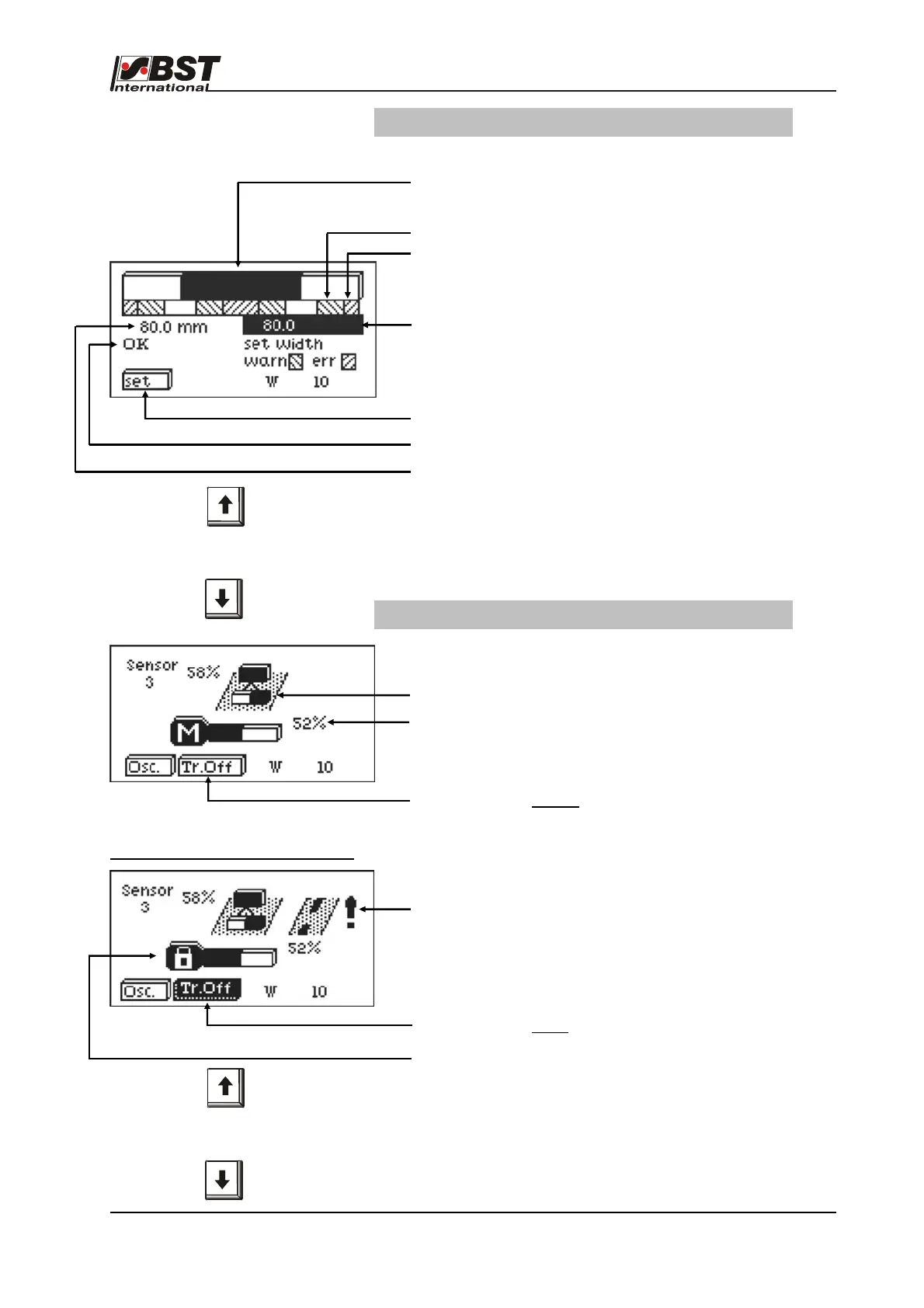

Display with tear recognition active:
Screen with active web width measurement
Screen when sensor 3 is connected
Accept current web width as intended web width
Entry field for intended web width
Actual system condition display
Graphic representation of:
warning limit
error limit
Numeric display of current web width
Graphic display of current web width
Display of relative sensor scanning area coverage
Relative actuator position related to limit positions
Tear-off detection inactive
Tear-off has been recognised
Tear-off detection active
Actuator is blocked
Switching between
operating displays
Switching between
operating displays
