Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 39/73
B 3.7.5.5 FVG –
Sensor positioning device
The control unit integrated in the controller for running the sensor
positioning device can be parameterised in this sub-menu.
A stepping motor drives the sensor adjustment unit.
The stepping motor output stages are not
protected against
short circuits.
You must check, without fail, using a suitable test unit
(ohmmeter) that no short circuits or cross-connections
between the two windings exist before starting the
commissioning.
The connection cable from the ekrPro Com
60
control unit to the
sensor adjustment unit must not exceed the maximum cable
length of 20 m.
Power is continuously applied to the stepping motor output
stage, even when stopped. Therefore any work undertaken on
the interconnections must only be carried out with the power
switched off.
The FVG function has been set to not activated in the factory, i.e.
no further settings are required if an FVG is not connected to the
system.
The required setting must be entered if the FVG function will be
used.

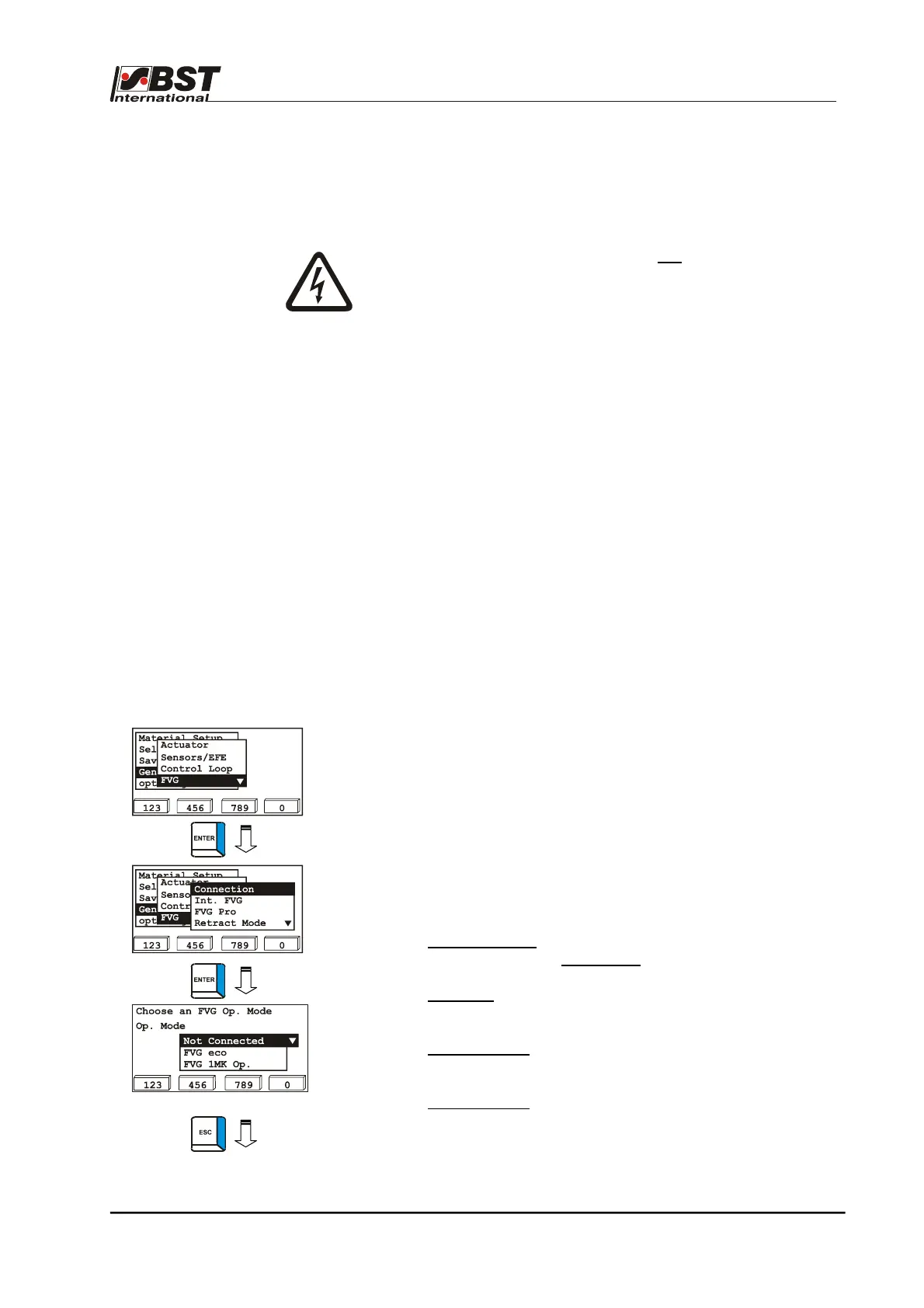

B 3.7.5.5.1: Connection – Activating of the sensor positioning
device (FVG) connected
1. Select FVG in General Setup and confirm by pressing ENTER
afterwards.
2. Select Connection in the selection window and then press
ENTER to open the inputting menu.
3. Select the desired operating mode from the option list.
• Not Connected:
The sensor positioning device is
deactivated (default setting).
• FVG eco:
Move the sensors/FVG slides manually
by means of the controller arrow keys.
• FVG 1MK Op.:
Sensor positioning device with stepping
motor. The FVG slides are moved by the
controller.
• FVG 2MK Op.:
Sensor positioning device with two
stepping motors. It is fitted with a hoist.
The FVG slides are moved by the
controller.
4. Press the ESC button to exit the inputting menu.
