Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 51/73

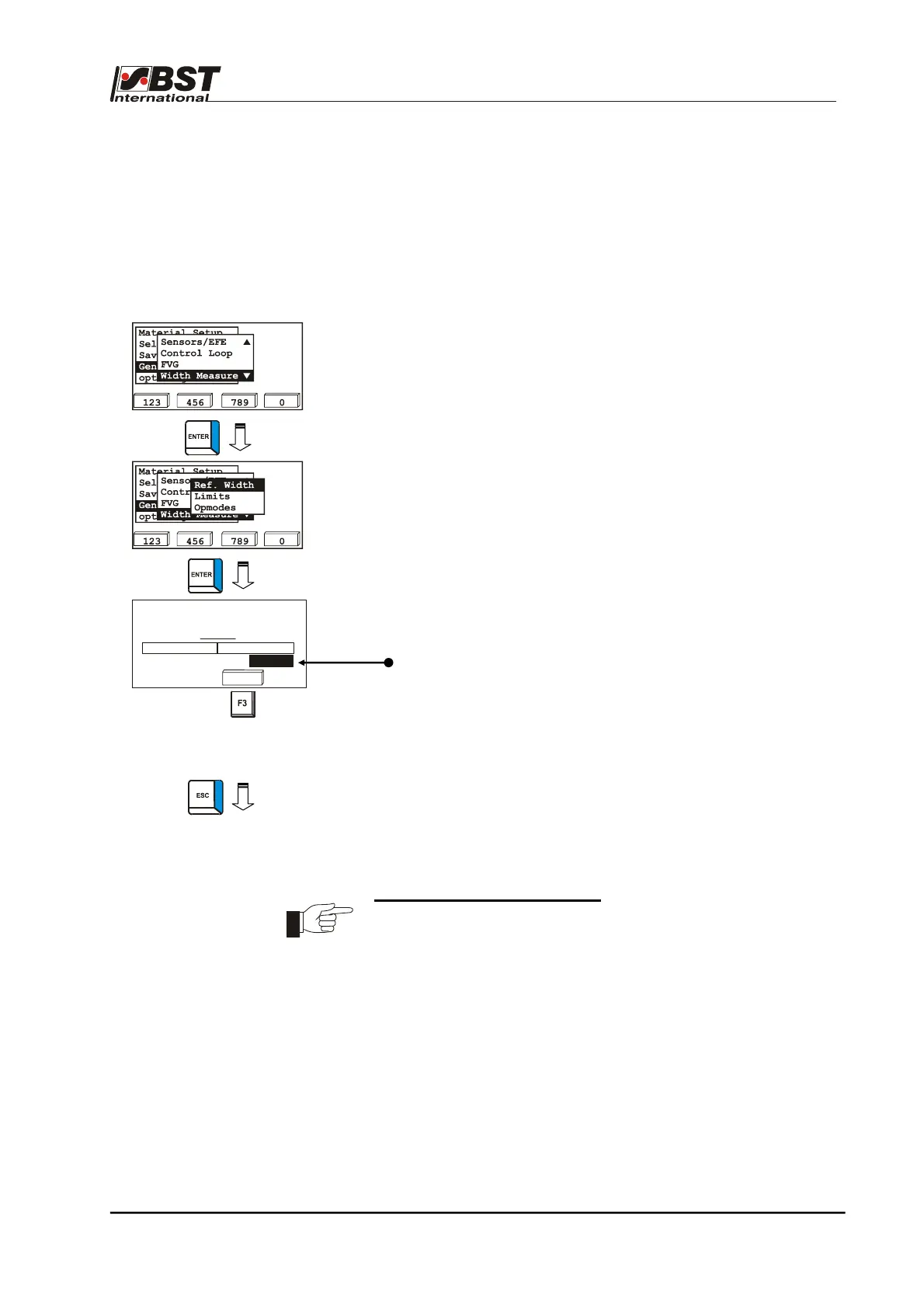

B 3.7.5.6 Width Measure - Web width measurement
The parameters required when using a width-measuring unit are set
up in this sub-menu.
B 3.7.5.6.1 Ref. Width – Width of the calibration sheet
A piece of material with a known width must be used once as a
reference for adjusting the web width measurement.
1. Select Width Measure in General Set-up and confirm by
pressing ENTER afterwards.
2. Ref. Width is marked in the following selection window. Press
the ENTER button to call up the inputting window.
3. Insert calibration sheet and start width measurement. To do
this you must switch over to centerline guiding and then
select Automatic operating mode.
4. Enter the width under enter ref. width after the sensors have
reached the edges of the calibration sheet and press the F3
button to take over the entered value.
5. The adjustment procedure is finished.
The actual measured value (current width) and the entered
reference value (ref. width) must both show the same size.
6. Press the ESC button to exit the window.
The reference width value last entered remains saved when the
device is switched off.
Inserting the calibration sheet:
First check the dimensions of the calibration sheet.
Important:
The calibration sheet reference dimension can change marginally
due to the effects of heat. Information relating to various
temperatures is given on the calibration sheet.
To obtain the best results, use the reference dimension for the
temperature which is nearest to the actual temperature, or
interpolate the dimension between these two temperatures.
Width Measure Offset
current width:
enter ref.width
.0
mm
set ref
