Installation B 1
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 1
with analog sensors Date: 23.11.2007 Page: 2/7
B 1.3 Installation
ekrPro Com
60
Desk
(built-in unit)

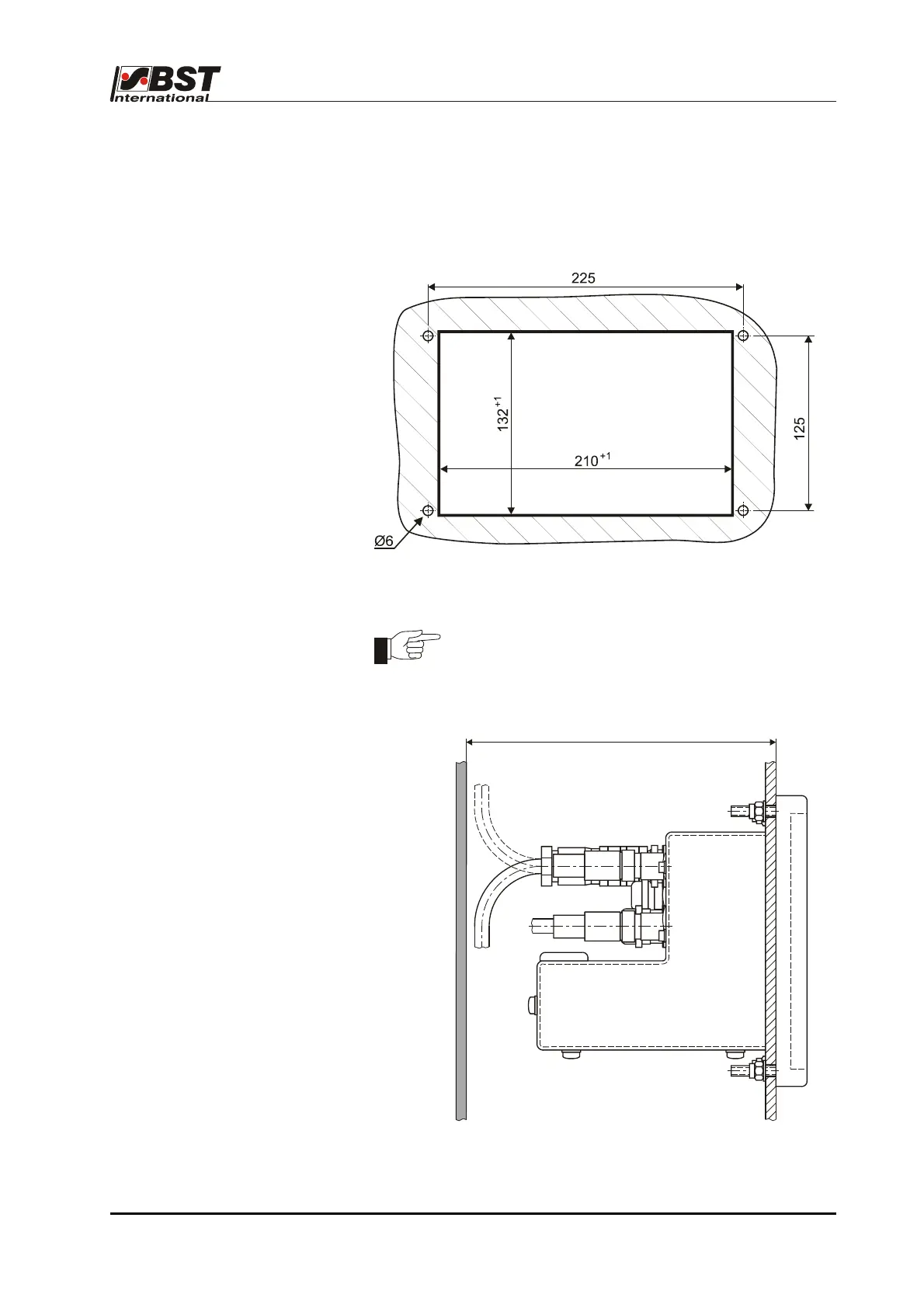

B 1.3.1 Installation dimensions
B 1.3.2 Cabling
Attention!
A space of at least 140 mm must be guaranteed for the
cabling in order to ensure that the cables are laid
correctly (see illustration).
Section
min. 140
