B 3.7.6 Opt. Logic - Optional logic

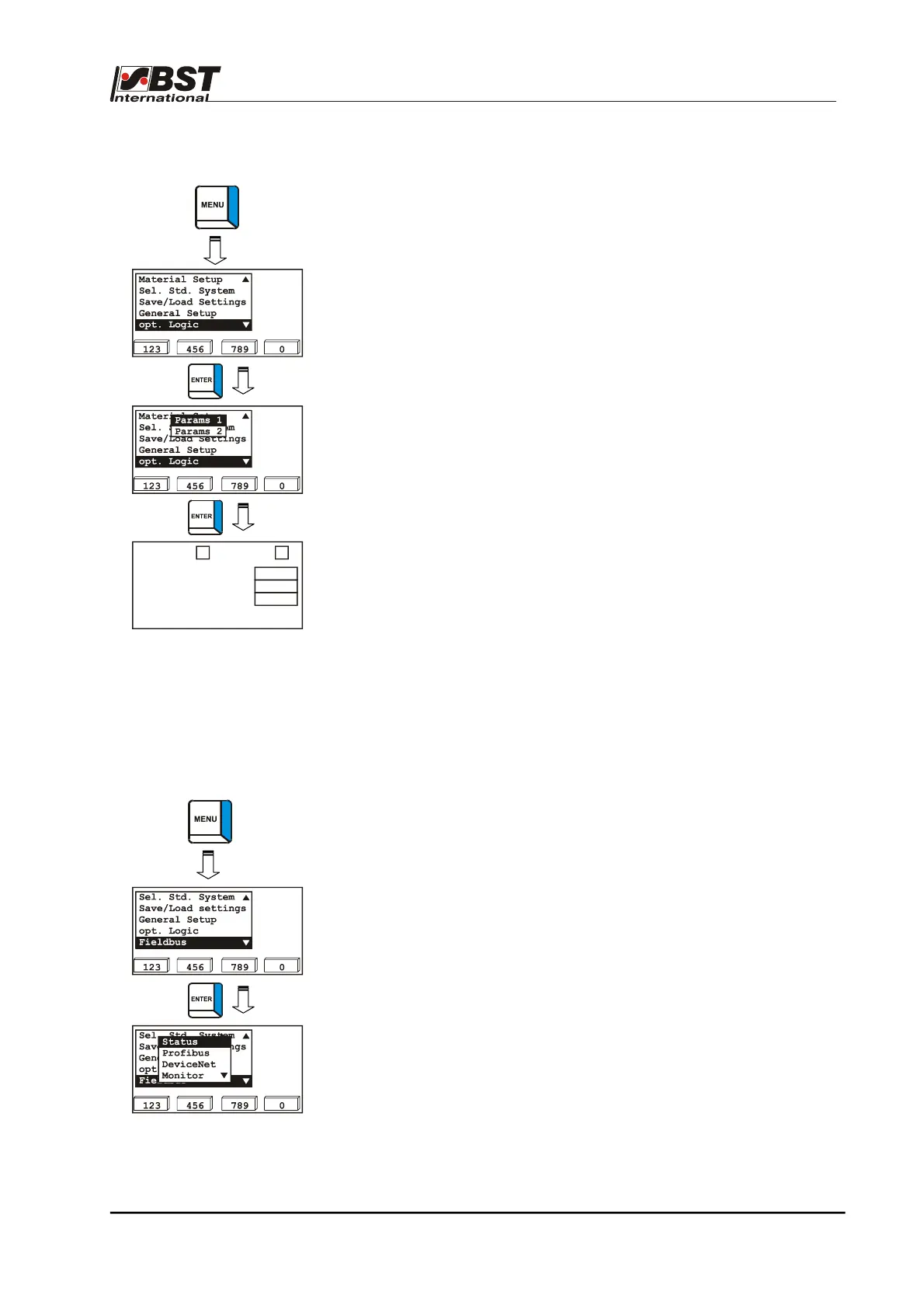

It is possible to integrate an optional logic module in the
ekrPro Com
60
for customer specific applications.
In this case there will be a separate branch available in the set-up
menu.
The separate windows can still be called up even if an optional logic
module has not been integrated, but you cannot make any entries.
The window for Params 1 and Params 2 have an identical layout.
The entries must first be loaded using the customer specific
software.
This customer specific software is described in a separate
document.
B 3.7.7 Fieldbus
It is possible to integrate a relevant field bus module to link into the
customer’s control system / network.
A separate menu branch is also provided for this.
This part of the set-up menu enables the operator to modify or read
out the configuration settings for the field bus version that is being
used.
No settings can be entered unless the field bus connection has been
set up.
In this case the field bus status window only displays the information
unknown (field bus has not been detected).
The configuration and operation descriptions are a separate
document.
