Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 32/73
Pos. Limit –

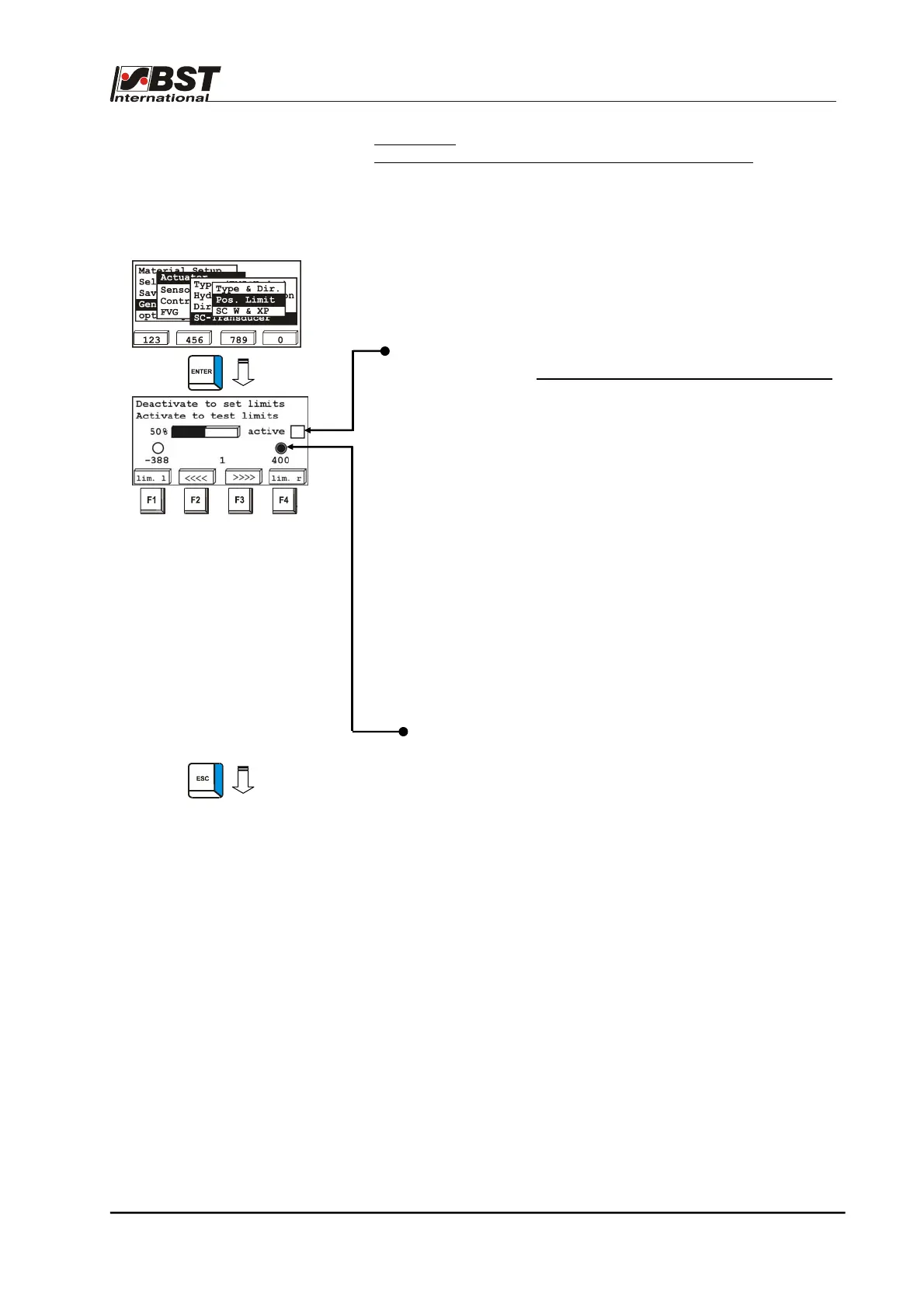

Setting the actuator path limits (software limit switches)
This sub-directory is only be used if an actuator with position
feedback (for example, EMS 17) is connected to the system.
This enables you to limit the actuator paths.
1. Select Actuator in General Setup, then the sub-directory
SC-Transducer and finally Pos. Limit.
Confirm the respective selection by pressing ENTER.
2. Use the vertical arrow keys to deactivate the checkbox active.
This deactivates the function of both limit switches.
The settings can only be entered in the deactivated state.
3. Use the F2 key to drive the actuator until it reaches the
required left limit switch position.
The actual position of the actuator supplied by the position
feedback is shown in the middle above the F2 and F3 keys.
4. Confirm this position by pressing the F1 key.
The limit switch position is stored.
The corresponding position value is shown below the
checkbox.
5. Use the F3 key to traverse the actuator until it reaches the
required right limit switch position.
6. Confirm this position by pressing the F4 key.
7. Reactivate both limit switches.
Select (x) checkbox active to do this.
The description is given in section 2.
Import of the limit switch position is indicated by a black circle
in the read-only checkbox above the F1 and/or F4 key.
8. Press the ESC button to exit the inputting menu.
