A 1.4.4 Oscillation types and curves
An oscillation can be implemented either as a sensor oscillation or
an FVG oscillation.
In the case of the sensor oscillation, the curve described is a delta
function.
The FVG oscillation describes a curve in accordance with a sine
function.
Selections and settings are described under Point B 3.7.5.8.2.
A 1.4.5 Allocation of FVGs for a FVGPro 2MK
A 1.5 Connectable
components
The general plan (annex C2) shows the components that can be
connected to the ekrPro Com
60
controller.

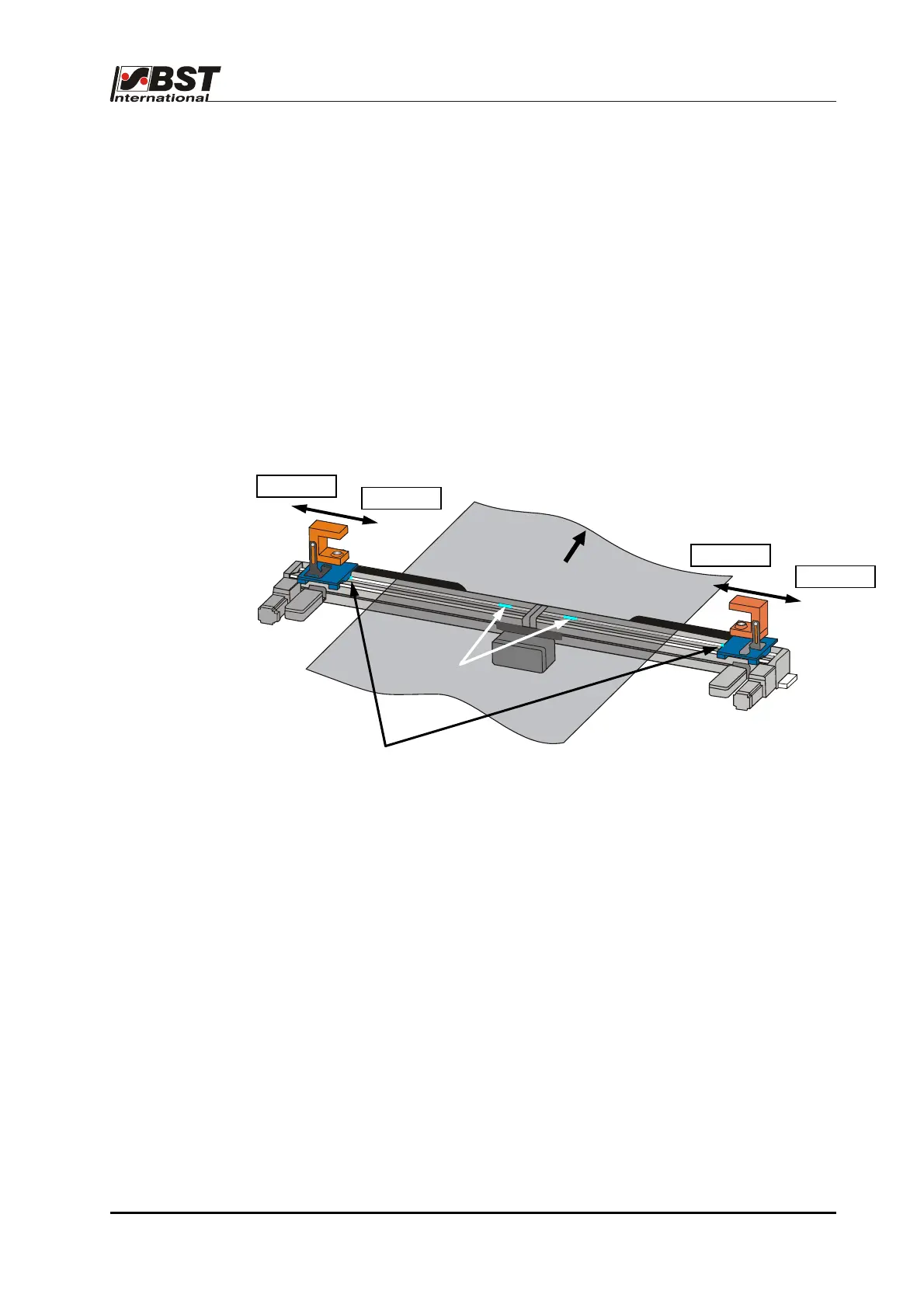

FVG 1
FVG 2
Web travel direction
internal
limit switch
external
limit switch
<<< >>>
<<< >>>
>>> <<<
>>> <<<
Traverse the FVG using the
appropriate key in the menu window
