Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 33/73
SC W & XP –

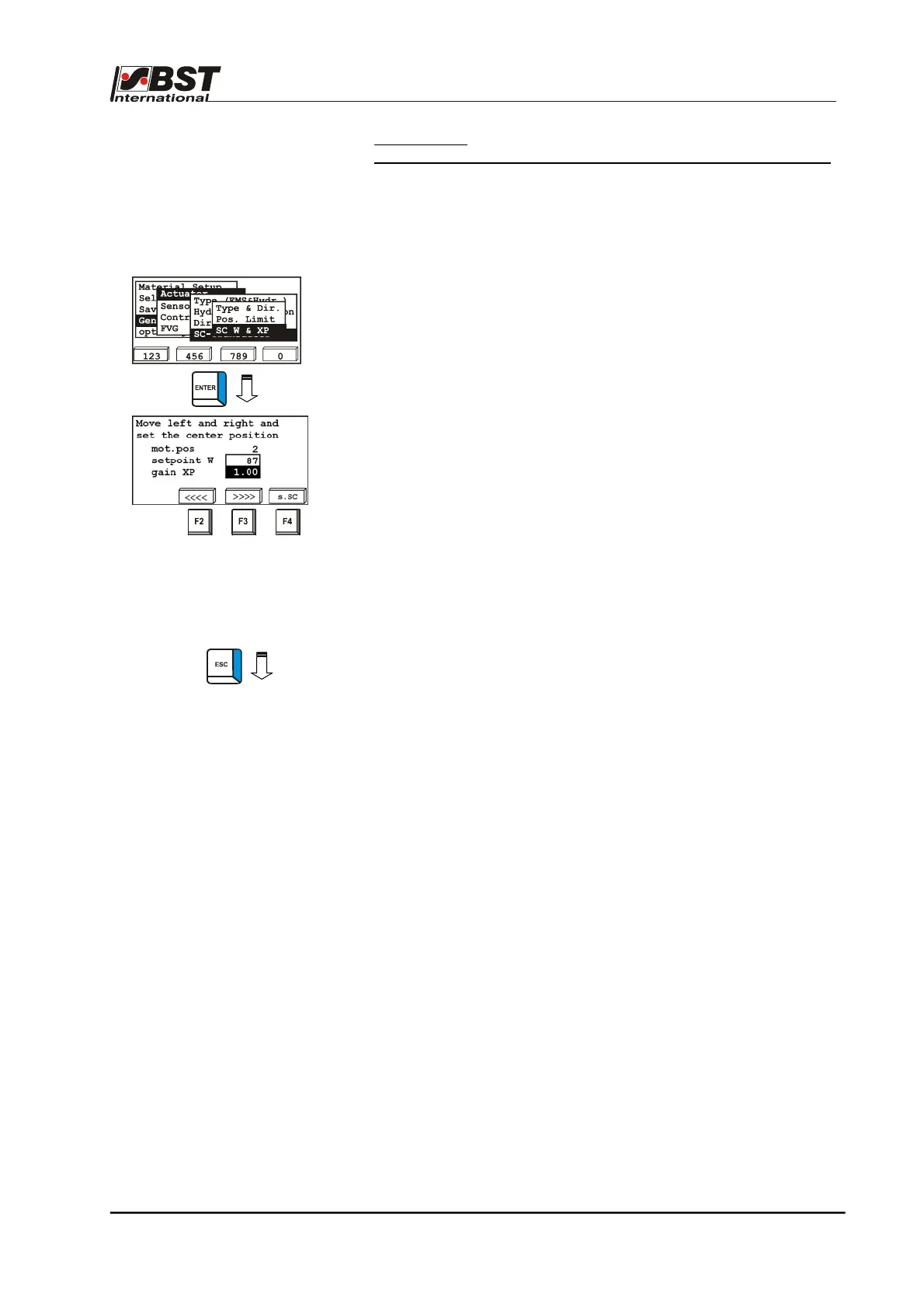

Setting the centre position and the gain for the SC operating mode
This sub-directory is only be used if an actuator with position
feedback (for example EMS 17) is connected to the system.
In this case the centre position setting option and the gain have to
be set up for the SC operating mode.
1. Select Actuator in General Setup, then the sub-directory
SC-Transducer and finally SC W & XP.
2. Press ENTER to open the inputting menu and enter the
parameters.
3. The current actuator position will be displayed in the field
mot.pos..
4. Use the F2 and F3 keys in MAN operating mode to move the
actuator into the required position.
5. Press the F4 key if you want to save the actual position as the
set point for the servo-center position.
The setting from mot.pos. will be imported into setpoint W.
6. The setpoint value setpoint W and the gain gain XP can also
be entered directly in the relevant window.
7. The settings can be checked on the spot by switching over to
the SC operating mode.
8. Press the ESC button to exit the window.
