Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 45/73

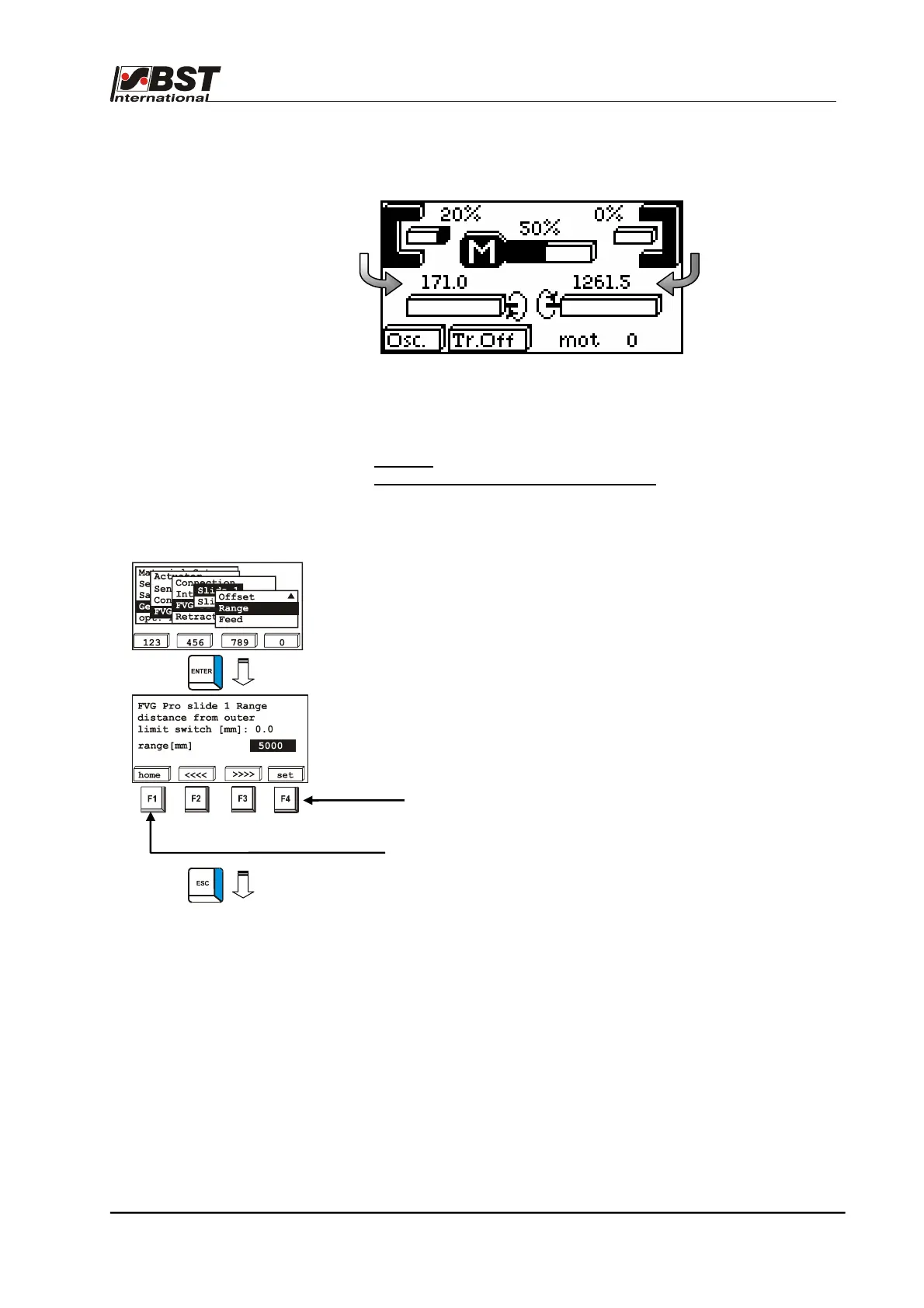

The standard operating display now shows the position of the centre
of the measurement window belonging to the appropriate sensor
based on the reference point.
Range –
Traversing range limits for first FVG slide
The traversing range limits are entered in the menu Range.
They are the basis for displaying the traversing movement in the
operating status screen.
1. Select Range from the sub-directory and then press ENTER
to open the inputting menu.
2. Press the F1 to start the movement of the slide to the park
position (home position). After this position has been
reached, the FVG stops.
3. Use the F2 or F3 buttons to carefully traverse the sensor in
the direction of the inner limit switch. Once the limit switch
has been reached, press key F4 (set). This completes the
adjustment procedure.
4. Press key F1 to move the sensor to the park position so that
you can draw in the web at a later point.
5. Press the ESC button to exit the inputting menu after you
have entered the settings.
If material has already been placed in the FVG adjustment range,
you can also enter the inside limit position directly into the editing
box.
