Commissioning B 3
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 3
with analog sensors Date: 23.11.2007 Page: 28/73
B 3.7.5.2 Actuator – Actuator settings
B 3.7.5.2.1 Type (EMS&Hydr.) – Actuator selection
The relevant servo center component must be entered before
starting the commissioning
(see chapter B 3.7.5.2.4 ”servo-center component settings“).
Any remote control which may possibly be running, must be
deactivated!
The preset actuator is the EMS 17.
Actuator path limits and the servo-center component have to be
adjusted.
If a different motor-driven or hydraulic actuator is being used it
should first be selected from the option list.

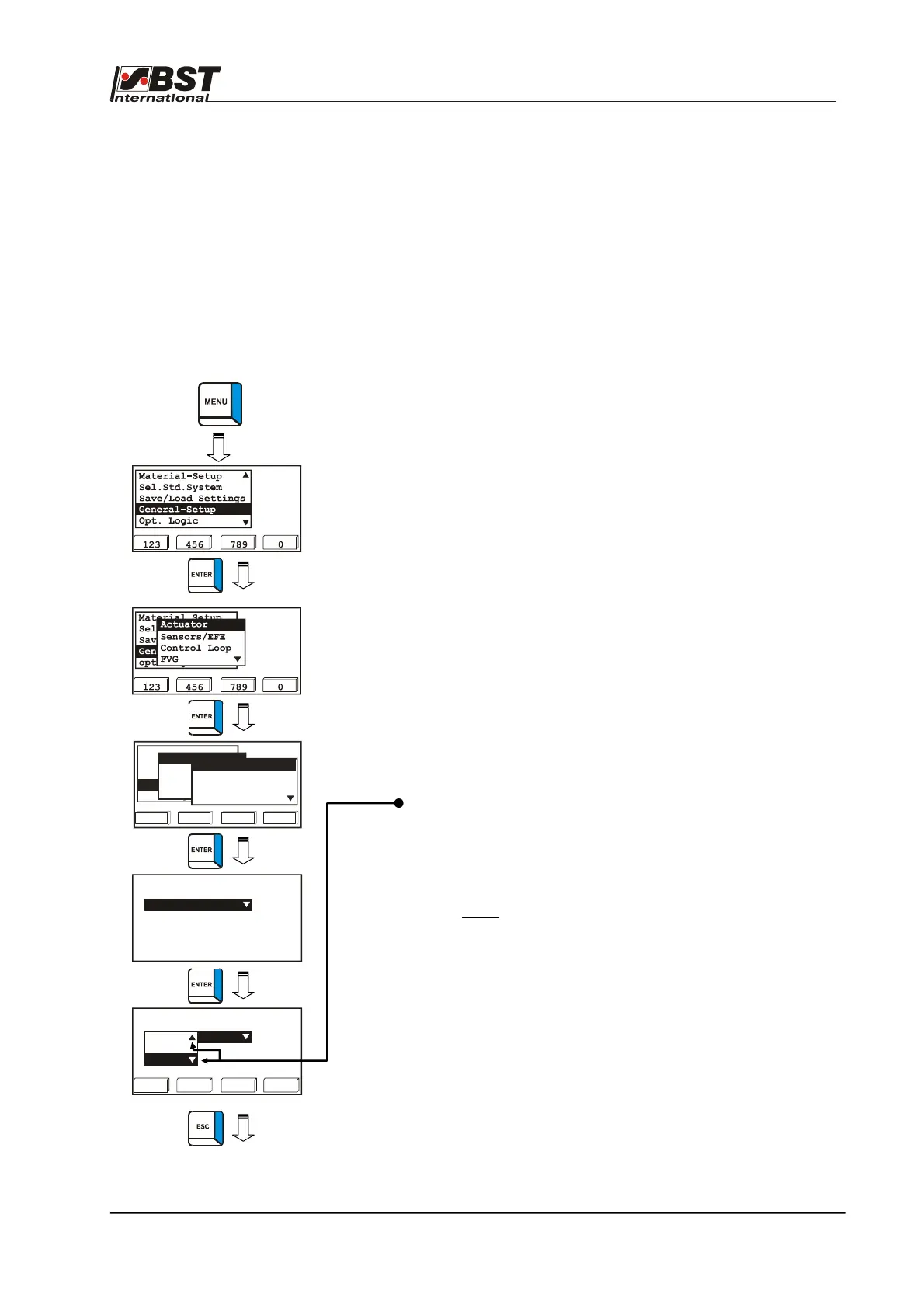

The actuator selection procedure is shown on the left.
1. Press the MENU button, select General Set-up from the sub-
menu and then press ENTER.
2. Select Actuator in General Setup and then select the
Type (EMS&Hydr.) sub-directory afterwards.
Confirm the respective selection by pressing ENTER.
3. The default actuator will be displayed on the screen.
Press the ENTER button and the actuator option list will then
be opened.
Now use the vertical arrow keys to select the actual actuator
that is connected to the system.
Motor-driven actuators: EMS …
Hydraulic actuators: hyd. … mA
Note:
If a hydraulic actuator is used, then additional
hydraulic settings must be made in the menu
Hydraulics Add On (see the following page).
Confirm the selection by pressing ENTER.
Press the ESC button to exit the window.
Select an actuator type
123 456 789 0
EMS 10
EMS 16
EMS 17
Select an actuator type
EMS 17
123 456 789 0
Material Setup
Sel. Std. System
Save/Load Settings
opt. Logic
General Setup
Actuator
Sensors/EFE
Control Loop
FVG
Type (EMS&Hydr.)
Hydraulics Add-on
Direction
SC-Transducer
