Installation B 1
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 1
with analog sensors Date: 23.11.2007 Page: 5/7
B 1.5 Installation
contrast / line sensor

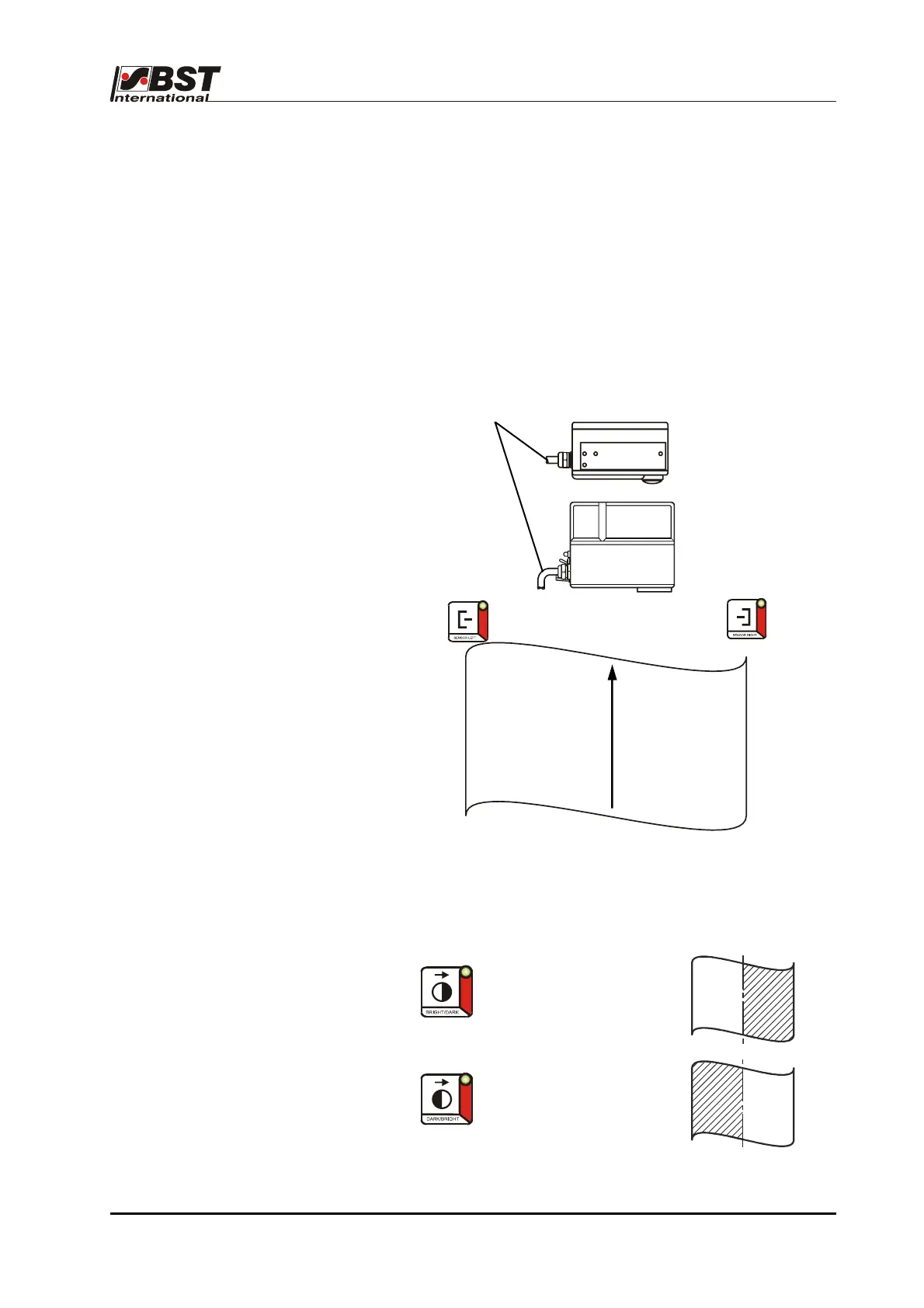

B 1.5.1 Sensor arrangement
The sensors must be arranged as follows in order to ensure clear
allocation of the two keys on the front foil of the controller to the
corresponding contrast transitions:
• The sensor connection cable points in the direction of
sensor 1.
This sensor arrangement results in the following key allocation:
Contrast transition
BRIGHT/DARK
Contrast transition
DARK/BRIGHT
TW 54 C 5
T 62 D 1
Connection
cable
Material web
Sensor 1
Sensor 2
web running direction
→
→
