Controls B 2
ekrPro Com
60
web guide controller EDV No.: MD.191.01.05/1.6.x Chapter: B 2
with analog sensors Date: 23.11.2007 Page: 4/6

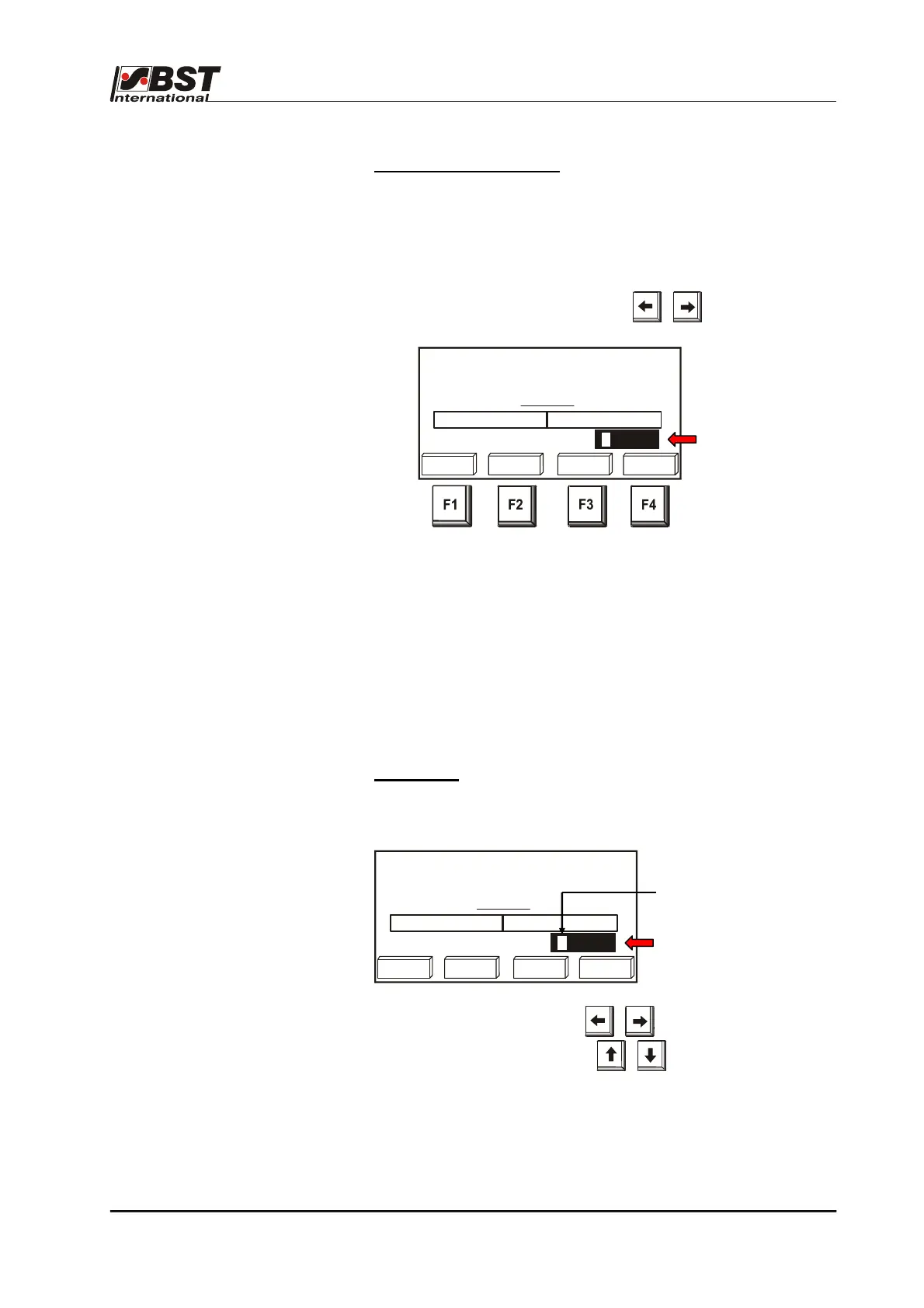

Entries in the editing box
The parameter values are entered directly in the editing box. This
can also be realised using the F-keys.
1. Open the required sub-menu and then press the ENTER key
to activate the editing box.
2. Use the horizontal arrow keys to mark the initial
position for the settting.
3. Enter the number. For example: press F4 x 1 = 0.
The actual position will jump automatically by 1 place to the
right after 0.5 seconds without an entry being made.
4. Now enter the next number in the same way as described
above in Section 3.
5. Press the ENTER button to import the modified value.
6. Press the ESC button to cancel the value.
Editing box
The arrow keys can also be used to enter a value in the editing box
in addition to using the F-keys.
Use the horizontal arrow keys to position the cursor on
the number to be modified.
Now use the vertical arrow keys to increase or decrease
the number.
Press ENTER to import the entered value.
Press the ESC button to cancel the value if you do not want to
save it.
78.5
0
123 456
789 0
Width Measure Offset
current width:
enter ref.width
mm
Opened
editing box
78.5
0
123 456
789 0
Width Measure Offset
current width:
enter ref.width
mm
Opened
editing box
Selected
digit
